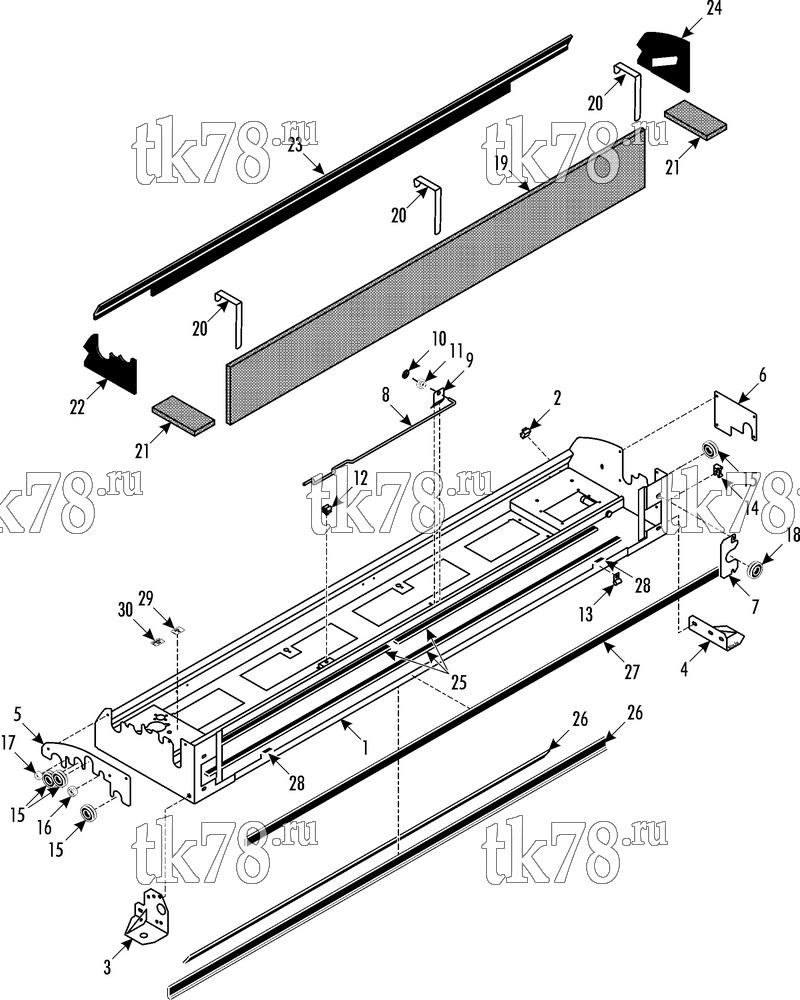

Установкa Thermo King ATHENIA S805 N Citelis схема EVAPORATOR BASE 2 – 224H9
Обновление от: 10/29/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7942 | BASE - evaporator | 1 | |
| 55-7866 | NUT - captive (M4) | 2 | ||
| 55-7373 | NUT - captive (M6) | 2 | ||
| 55-6994 | SCREW - base | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 2 | 55-9194 | NUT - captive | 3 | |
| 3 | 92-6056 | BRACKET | 1 | |
| 4 | 92-6060 | BRACKET | 1 | |
| 55-7172 | SCREW - bracket | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-9814 | NUT - captive, closed | 2 | ||
| 5 | 92-5665 | PLATE - cover | 1 | |
| 6 | 92-4002 | PLATE - cover | 1 | |
| 55-5130 | RIVET - plates | A/R | ||
| 7 | 92-5666 | PLATE - cover | 1 | |
| 8 | 92-6378 | SUPPORT - cover | 1 | |
| 9 | 92-5048 | BRACKET | 1 | |
| 55-5130 | RIVET - bracket | 2 | ||
| 10 | 51-809 | LOCKWASHER | 1 | |
| 11 | 83-258 | GROMMET (0.250 id) | 1 | |
| 12 | 51-1669 | CLIP - plastic | 1 | |
| 13 | 56-546 | CLAMP | 1 | |
| 55-7169 | SCREW - clamp | 1 | ||
| 55-7171 | LOCKWASHER | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-8375 | NUT - captive | 2 | ||
| 14 | 99-3281 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 15 | 33-452 | GROMMET (0.875 id) | 4 | |
| 16 | 33-428 | GROMMET (0.50 id) | 1 | |
| 17 | 33-451 | GROMMET (0.375 id) | 1 | |
| 18 | 33-1084 | GROMMET (1.00 id) | 1 | |
| 19 | 92-5663 | FILTER - evaporator | 1 | |
| 20 | 92-5664 | CLIP - filter to evaporator | 3 | |
| 21 | 92-4007 | FILTER - evaporator | 2 | |
| 22 | 92-4014 | INSULATION | 1 | |
| 23 | 92-6377 | INSULATION | 1 | |
| 24 | 92-4013 | INSULATION | 1 | |
| 25 | 99-2996 | STRIP - INSULATION | A/R | |
| 26 | 33-2420 | STRIP - INSULATION | A/R | |
| 27 | 99-6968 | STRIP - INSULATION | A/R | |
| 28 | 99-1908 | STRIP - INSULATION | A/R | |
| 29 | 91-7510 | NAMEPLATE - Gas In | 1 | |
| 30 | 91-8536 | NAMEPLATE - Vapour Out | 1 |
