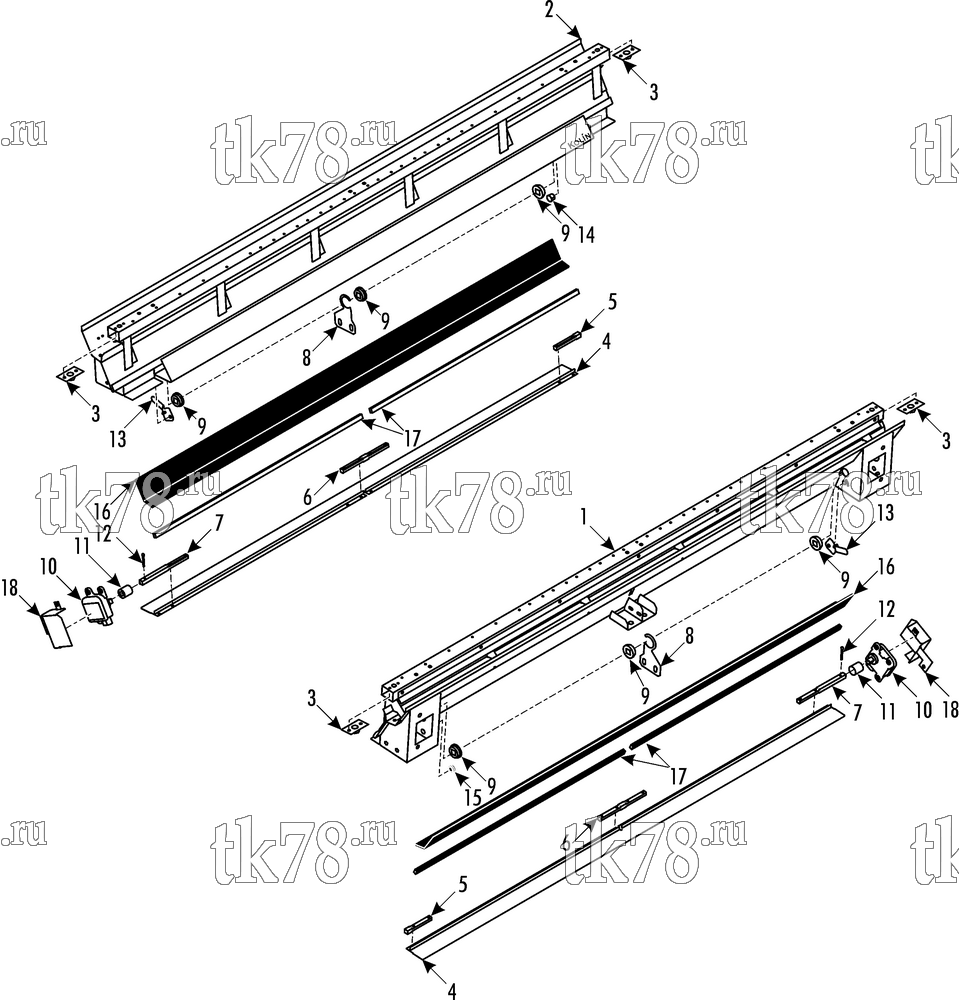

Установкa Thermo King ATHENIA S805 N Citelis схема AIR INTAKE - NARROW w/ FA DAMPER (007376) – 224B9
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7851 | BASE - weldment | 1 | |
| 2 | 98-7852 | BASE - weldment | 1 | |
| 55-9866 | NUT - captive, servomotor (M4) | 6 | ||
| 51-290 | NUT - captive, stopper (M6) | 2 | ||
| 55-8375 | NUT - captive, cover (M5) | 12 | ||
| 55-7373 | NUT - captive, evaporator to air intake (M6) | 8 | ||
| 55-9814 | NUT - captive, closed (M6) | 8 | ||
| 55-8403 | NUT - captive, unit to bus roof (M8) | 6 | ||
| 3 | 92-4030 | BRACKET - lifting eye | 4 | |
| 55-5130 | RIVET | 8 | ||
| 4 | 98-7484 | DAMPER | 2 | |
| 55-7340 | SCREW - damper (M5) | 16 | ||
| 55-7171 | LOCKWASHER | 16 | ||
| 55-7089 | FLATWASHER | 16 | ||
| 5 | 92-4031 | SHAFT - damper | 2 | |
| 6 | 92-4032 | SHAFT - damper, middle | 2 | |
| 7 | 92-5667 | SHAFT - damper, shorter | 2 | |
| 8 | 92-4034 | HOLDER - bearing | 2 | |
| 55-7172 | SCREW - holder (M6) | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7042 | NUT | 4 | ||
| 9 | 91-9142 | BEARING | 6 | |
| 10 | 41-3255 | SERVOMOTOR | 2 | |
| 55-8723 | SCREW - servomotor (M4) | 6 | ||
| 55-7369 | LOCKWASHER | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 11 | 92-685 | COUPLING - damper | 2 | |
| 12 | 55-5601 | PIN - cotter | 2 | |
| 13 | 92-4622 | STOPPER - damper | 2 | |
| 55-7172 | SCREW - stopper | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 14 | 55-9574 | PLUG | 1 | |
| 15 | 33-314 | GROMMET (5/16 id) | 1 | |
| 16 | 92-5668 | INSULATION | 2 | |
| 17 | 92-5669 | INSULATION | 4 |
