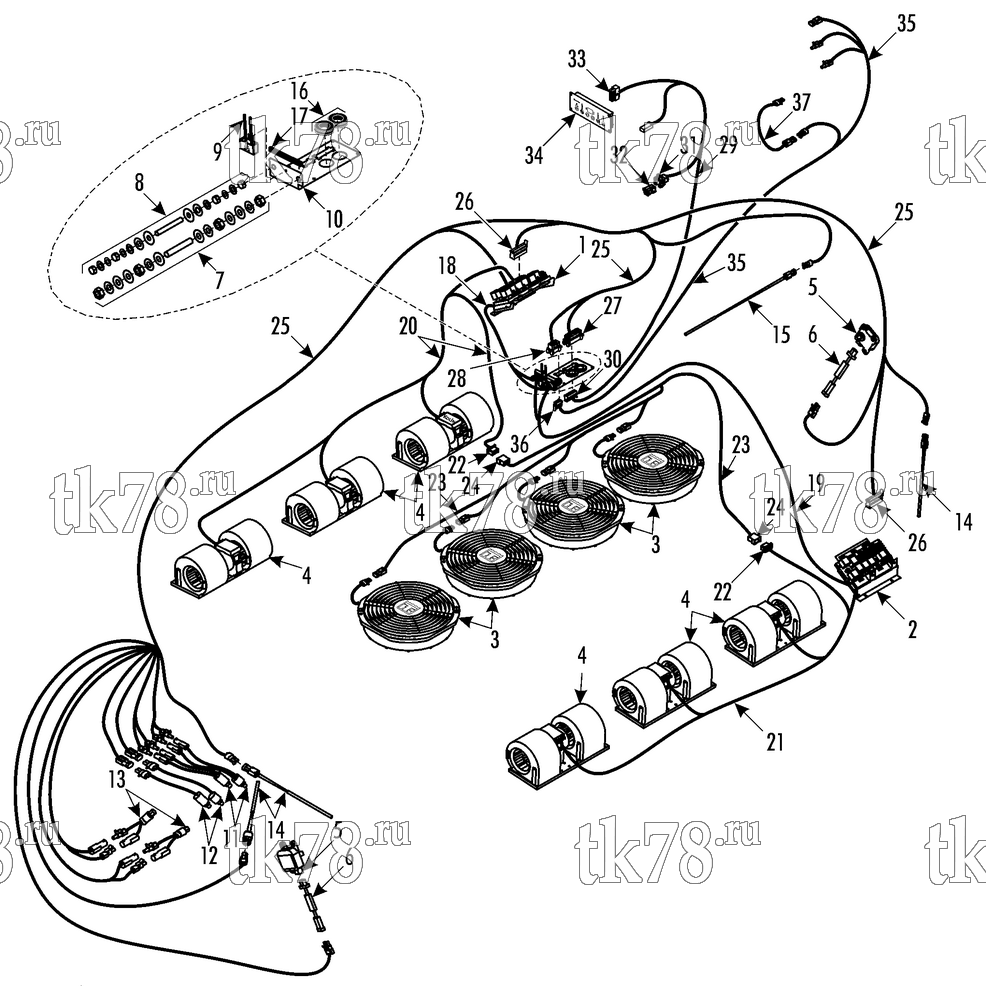

Установкa Thermo King ATHENIA S800 Split схема ELECTRICAL COMPONENTS - ClimaAIRE I D – 216E8
Обновление от: 10/4/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER - left (see 216E9) | 1 | |
| 2 | NSS | CONTROLLER - right (see 194H9) | 1 | |
| 3 | 78-1414 | FAN (see 199C7 or 199C8) | 4 | |
| 4 | 78-1297 | BLOWER (see 194H6) | 6 | |
| 5 | 41-3255 | SERVOMOTOR (for units w/ dampers) | 2 | |
| 6 | 41-7190 | CONTROLLER - servomotor (for units w/ dampers) | 2 | |
| 7 | 55-9191 | STUD - negative (M10) | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 8 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 9 | 41-6098 | SUPPRESSOR - voltage | 1 | |
| 51-888 | STUD - self-clinching | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 10 | 92-4041 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 11 | 41-1501 | SWITCH - hpco (see 216E1 or 216E2) | 2 | |
| 12 | 41-5220 | SWITCH - hpco (see 216E1 or 216E2) | 2 | |
| 13 | 41-6064 | SWITCH - lpco (see 216E1 or 216E2) | 2 | |
| 14 | 41-4157 | SENSOR - temperature | 3 | |
| 15 | 41-4335 | SENSOR - temperature | 1 | |
| 16 | 33-452 | GROMMET (0.875 id) | 2 | |
| 17 | 92-3279 | STRIP - flange | A/R | |
| 18 | 41-6101 | HARNESS - supply, left | 1 | |
| 19 | 41-6501 | HARNESS - supply, right | 1 | |
| 20 | 41-6099 | HARNESS - control panel, left | 1 | |
| 21 | 41-6500 | HARNESS - control panel, right | 1 | |
| 22 | 41-3862 | CONNECTOR (6-pin) | 2 | |
| 23 | 41-6502 | HARNESS - condenser (for connectors see 115D14) | 1 | |
| 24 | 41-3967 | CONNECTOR (6-pin) | 2 | |
| 25 | 41-7627 | HARNESS - control (for units w/ dampers, for connectors see 115D14) | 1 | |
| 41-7628 | HARNESS - control (for units w/o dampers, for connectors see 115D14) | 1 | ||
| 26 | 41-3856 | CONNECTOR (female, 18-pin) | 2 | |
| 27 | 41-2772 | CONNECTOR (male, 18-pin) | 1 | |
| 28 | 41-4054 | CONNECTOR (male, 10-pin) | 1 | |
| 29 | 41-7316 | HARNESS - control panel to ClimaAIRE I D (18 m, for connectors see 115D14) | 1 | |
| 41-7317 | HARNESS - control panel to ClimaAIRE I D (16 m, for connectors see 115D14) | 1 | ||
| 41-7318 | HARNESS - control panel to ClimaAIRE I D (14 m, for connectors see 115D14) | 1 | ||
| 41-7319 | HARNESS - control panel to ClimaAIRE I D (12 m, for connectors see 115D14) | 1 | ||
| 41-7320 | HARNESS - control panel to ClimaAIRE I D (10 m, for connectors see 115D14) | 1 | ||
| 41-7321 | HARNESS - control panel to ClimaAIRE I D (8 m, for connectors see 115D14) | 1 | ||
| 41-7322 | HARNESS - control panel to ClimaAIRE I D (6 m, for connectors see 115D14) | 1 | ||
| 30 | 41-3856 | CONNECTOR (female, 18-pin) | 1 | |
| 31 | 41-4949 | CONNECTOR (male, 4-pin) | 1 | |
| 32 | 41-2769 | CONNECTOR (female, 4-pin) | 1 | |
| 33 | 41-661 | CONNECTOR - in-line (14-pin) | 1 | |
| 34 | 41-7211 | ClimaAIRE I D | 1 | |
| 35 | 41-7323 | HARNESS - control panel to compressor (18 m, w/ alternator excitation, for connectors see 115D14) | 1 | |
| 41-7324 | HARNESS - control panel to compressor (14 m, w/ alternator excitation, for connectors see 115D14) | 1 | ||
| 41-7325 | HARNESS - control panel to compressor (12 m, w/ alternator excitation, for connectors see 115D14) | 1 | ||
| 41-7326 | HARNESS - control panel to compressor (8 m, w/ alternator excitation, for connectors see 115D14) | 1 | ||
| 41-7327 | HARNESS - control panel to compressor (18 m, w/o alternator excitation, for connectors see 115D14) | 1 | ||
| 41-7328 | HARNESS - control panel to compressor (14 m, w/o alternator excitation, for connectors see 115D14) | 1 | ||
| 41-7329 | HARNESS - control panel to compressor (12 m, w/o alternator excitation, for connectors see 115D14) | 1 | ||
| 41-7330 | HARNESS - control panel to compressor (8 m, w/o alternator excitation, for connectors see 115D14) | 1 | ||
| 36 | 41-3855 | CONNECTOR (female, 10-pin) | 1 | |
| 37 | 41-4143 | HARNESS - boost pump (14 m, for connectors see 115D14) | 1 | |
| 41-4144 | HARNESS - boost pump (9 m, for connectors see 115D14) | 1 | ||
| 41-6152 | HARNESS - boost pump (7.6 m, for connectors see 115D14) | 1 |
