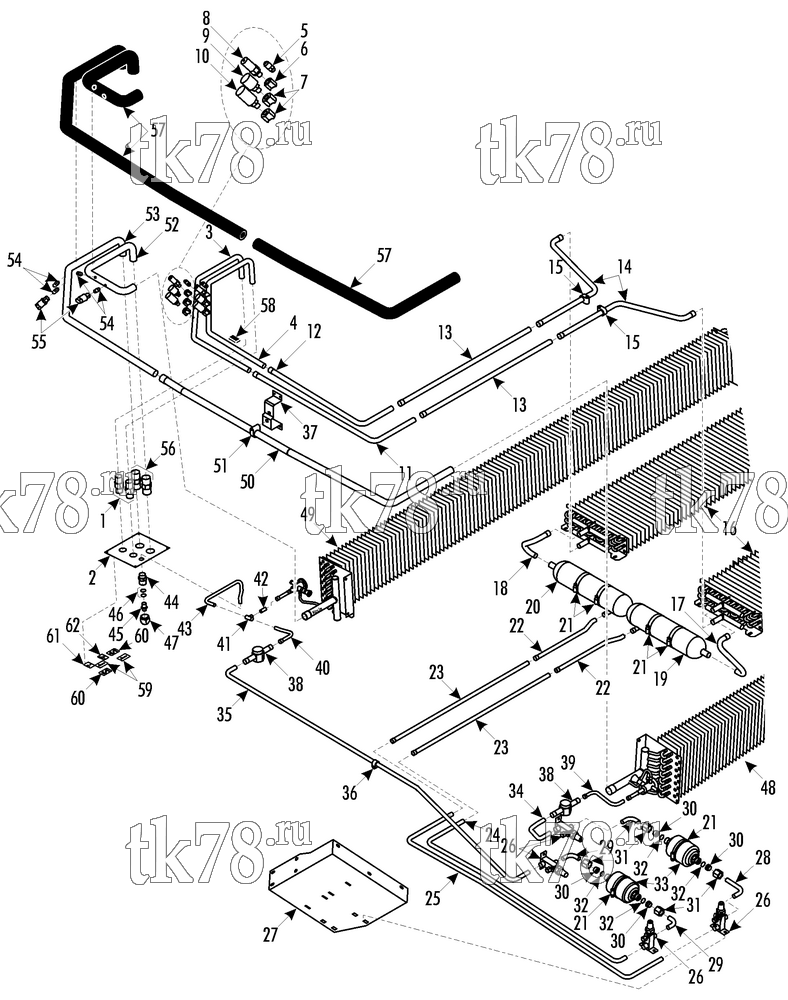

Установкa Thermo King ATHENIA S800 Split схема TUBE COOLING - NARROW – 216E1
Обновление от: 10/4/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-3473 | ADAPTER - tube | 2 | |
| 2 | 92-5379 | PLATE - tube | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 3 | 61-3474 | TUBE - assembly | 1 | |
| 4 | 61-3475 | TUBE - assembly | 1 | |
| 5 | 61-2059 | VALVE | 2 | |
| 6 | 99-3060 | FITTING - saddle | 2 | |
| 6 | 66-4139 | FITTING - saddle | 4 | |
| 8 | 66-7392 | VALVE - relief | 2 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 9 | 41-1501 | SWITCH - hpco | 2 | |
| 10 | 41-5220 | SWITCH - hpco | 2 | |
| 11 | 61-3635 | TUBE | 1 | |
| 12 | 61-3636 | TUBE | 1 | |
| 13 | 61-3840 | TUBE | 2 | |
| 14 | 61-3478 | TUBE | 2 | |
| 15 | 91-758 | CLAMP - tube | 2 | |
| 55-8316 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 16 | 67-2021 | CONDENSER - standard (see 199C9) | 2 | |
| 17 | 61-3040 | TUBE | 1 | |
| 18 | 61-3041 | TUBE | 1 | |
| 19 | 67-2181 | TANK - receiver | 1 | |
| 20 | 67-2182 | TANK - receiver | 1 | |
| 21 | 55-2688 | CLAMP - tank | 6 | |
| 22 | 61-3479 | TUBE | 2 | |
| 23 | 61-3480 | TUBE | 2 | |
| 24 | 61-3637 | TUBE | 1 | |
| 25 | 61-3638 | TUBE | 1 | |
| 26 | 66-4694 | VALVE - shut-off | 4 | |
| 55-6994 | SCREW - valve (20 mm) | 6 | ||
| 55-7035 | SCREW - valve (25 mm) | 2 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-7075 | LOCKWASHER | 8 | ||
| 55-7373 | NUT - captive | 2 | ||
| 55-6997 | NUT - captive, special | 4 | ||
| 27 | 92-5380 | BRACKET - valves | 1 | |
| 55-6994 | SCREW - bracket | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 28 | 61-3483 | TUBE | 1 | |
| 29 | 61-3484 | TUBE | 3 | |
| 31 | 55-6837 | SHOULDER | 4 | |
| 31 | 55-6838 | NUT - shoulder | 4 | |
| 32 | 33-672 | O-RING | 4 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 33 | 66-8344 | FILTER - drier | 2 | |
| 34 | 61-3485 | TUBE | 1 | |
| 35 | 61-3639 | TUBE | 1 | |
| 36 | 55-6389 | CLAMP - tube | 1 | |
| 55-8464 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 37 | 92-5381 | HOLDER - tube | 1 | |
| 55-5130 | RIVET - holder | 4 | ||
| 38 | 66-1188 | INDICATOR - liquid | 2 | |
| 39 | 61-3487 | TUBE | 1 | |
| 40 | 61-3640 | TUBE | 1 | |
| 41 | 55-3251 | TEE (3/8 x 3/8 x 3/8) | 1 | |
| 42 | 61-3641 | TUBE | 1 | |
| 43 | 61-3642 | TUBE | 1 | |
| 44 | 61-3643 | ADAPTER - tube | 1 | |
| 45 | 92-120 | INSERT - plug | 1 | |
| 46 | 33-1461 | O-RING | 2 | |
| 47 | 92-121 | NUT | 1 | |
| 48 | 67-2274 | COIL - evaporator (see 216E6) | 1 | |
| 67-2272 | COIL - evaporator/heater (see 216E5) | 1 | ||
| 49 | 67-2275 | COIL - evaporator (see 216E6) | 1 | |
| 67-2273 | COIL - evaporator/heater (see 216E5) | 1 | ||
| 50 | 61-3644 | TUBE | 1 | |
| 51 | 55-7013 | CLAMP - tube | 1 | |
| 55-7027 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 52 | 61-3489 | TUBE - suction, assembly | 1 | |
| 53 | 61-3490 | TUBE - suction, assembly | 1 | |
| 54 | 61-2059 | VALVE | 4 | |
| 55 | 41-6064 | SWITCH - lpco | 2 | |
| 56 | 61-3108 | ADAPTER - tube | 2 | |
| 57 | 91-3542 | TUBE - rubber | A/R | |
| 58 | 33-3540 | STRIP - neoprene | A/R | |
| 59 | 92-2765 | NAMEPLATE - 1 | 2 | |
| 60 | 92-2766 | NAMEPLATE - 2 | 2 | |
| 61 | 91-7510 | NAMEPLATE - Gas In | 1 | |
| 62 | 91-8536 | NAMEPLATE - Vapor Out | 1 |
