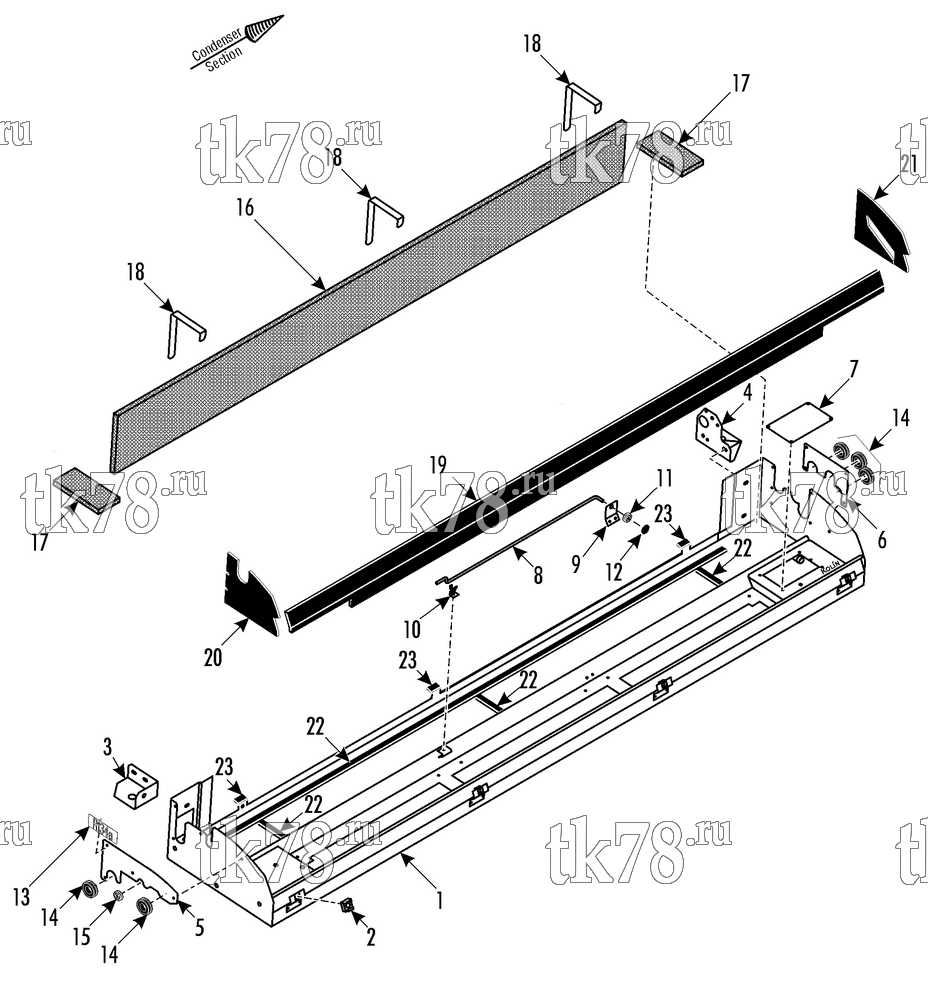

Установкa Thermo King ATHENIA S800 Split схема EVAPORATOR BASE 1 – 216D9
Обновление от: 10/25/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7359 | BASE - evaporator | 1 | |
| 55-6994 | SCREW - base | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 2 | 55-9194 | NUT - captive | 4 | |
| 3 | 92-6055 | BRACKET (narrow unit) | 1 | |
| 92-6057 | BRACKET (wide unit) | 1 | ||
| 4 | 92-6056 | BRACKET (narrow unit) | 1 | |
| 92-6058 | BRACKET (wide unit) | 1 | ||
| 55-7172 | SCREW - brackets | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 2 | ||
| 5 | 92-4618 | PLATE - cover | 1 | |
| 6 | 92-4003 | PLATE - cover (units w/ heater) | 1 | |
| 92-4002 | PLATE - cover (units w/o heater) | 1 | ||
| 7 | 92-4004 | PLATE - cover (units w/o heater) | 1 | |
| 55-5130 | RIVET - plates | A/R | ||
| 8 | 92-4005 | ROD - cover | 1 | |
| 9 | 92-5048 | BRACKET - rod | 1 | |
| 10 | 51-914 | CLIP - rod | 1 | |
| 55-5130 | RIVET - bracket & clip | A/R | ||
| 11 | 83-258 | GROMMET (0.25 id) | 1 | |
| 12 | 51-809 | LOCKWASHER | 1 | |
| 13 | 91-5459 | NAMEPLATE - R134a | 1 | |
| 14 | 33-452 | GROMMET (0.875 id) | A/R | |
| 15 | 33-428 | GROMMET (0.50 id) | 1 | |
| 16 | 92-4006 | FILTER - evaporator | 1 | |
| 17 | 92-4007 | FILTER - evaporator | 2 | |
| 18 | 92-5831 | CLIP (for units w/ heater) | 3 | |
| 92-5664 | CLIP (for units w/o heater) | 3 | ||
| 19 | 92-4008 | INSULATION | 1 | |
| 20 | 92-4009 | INSULATION | 1 | |
| 21 | 92-4010 | INSULATION | 1 | |
| 22 | 99-2495 | STRIP - neoprene | A/R | |
| 23 | 33-3540 | STRIP - neoprene | A/R |
