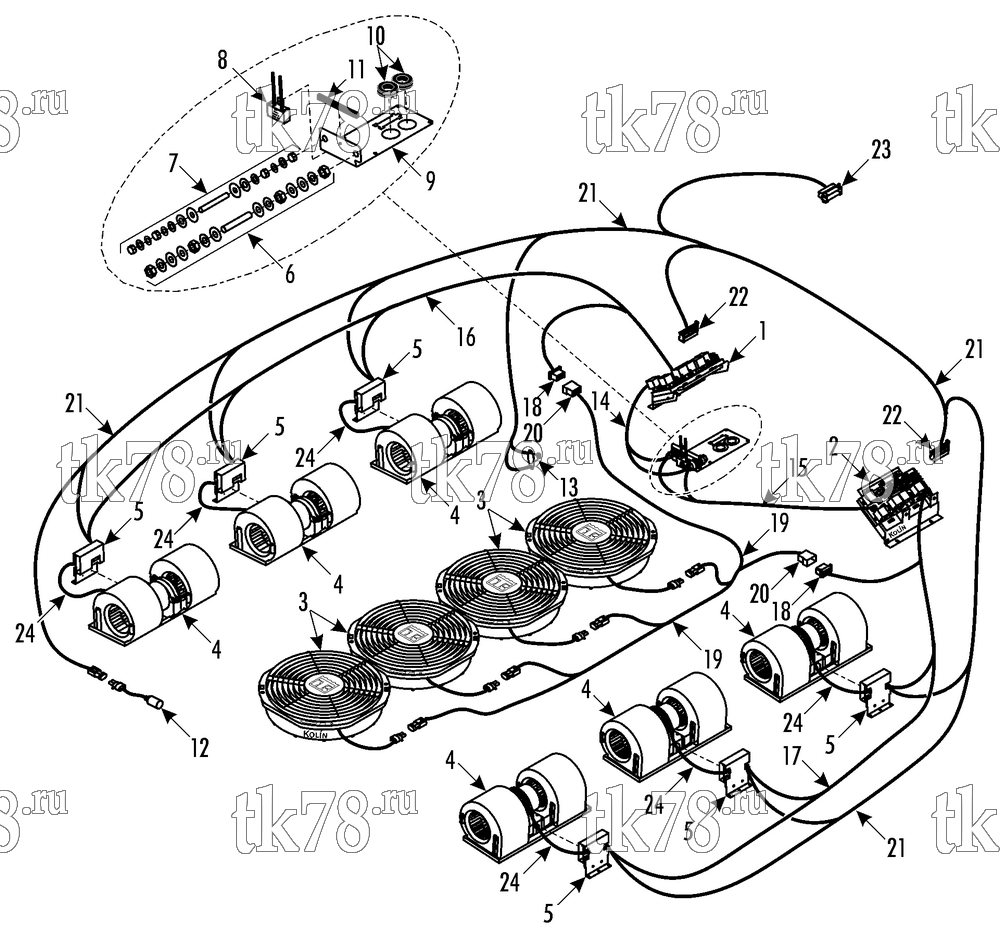

Установкa Thermo King ATHENIA S800 N 1000 Van Hool схема ELECTRICAL COMPONENTS – 218B2
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER - left (see 218B3) | 1 | |
| 2 | NSS | CONTROLLER - right (see 218B4) | 1 | |
| 3 | 78-1414 | FAN (see 199C7) | 4 | |
| 4 | 78-1395 | BLOWER (see 216H6) | 6 | |
| 5 | 41-2757 | CONTROLLER - speed (see 216H6) | 6 | |
| 6 | 55-9191 | STUD - negative (M10) | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 7 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 8 | 41-6098 | SUPPRESSOR - voltage | 1 | |
| 51-888 | STUD - self-clinching | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 9 | 92-6076 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 10 | 33-452 | GROMMET (0.875 id) | 2 | |
| 11 | 92-3279 | STRIP - flange | A/R | |
| 12 | 41-5220 | SWITCH - hpco (see 199D5) | 1 | |
| 13 | 41-9627 | SWITCH - thermostat | 1 | |
| 55-7843 | SCREW - switch | 2 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-8120 | FLATWASHER (nylon) | 2 | ||
| 55-7665 | NUT | 2 | ||
| 14 | 41-6101 | HARNESS - supply, left | 1 | |
| 15 | 41-6501 | HARNESS - supply, right | 1 | |
| 16 | 41-7656 | HARNESS - control panel, left | 1 | |
| 17 | 41-7657 | HARNESS - control panel, right | 1 | |
| 18 | 41-3862 | CONNECTOR (6-pin) | 2 | |
| 19 | 41-6502 | HARNESS - condenser (for connectors see 115D14) | 1 | |
| 20 | 41-3967 | CONNECTOR (6-pin) | 2 | |
| 21 | 41-7658 | HARNESS - control (for connectors see 115D14) | 1 | |
| 22 | 41-3856 | CONNECTOR (female, 18-pin) | 2 | |
| 23 | 41-2772 | CONNECTOR (male, 18-pin) | 1 | |
| 24 | 41-5192 | HARNESS - blower | 6 |
