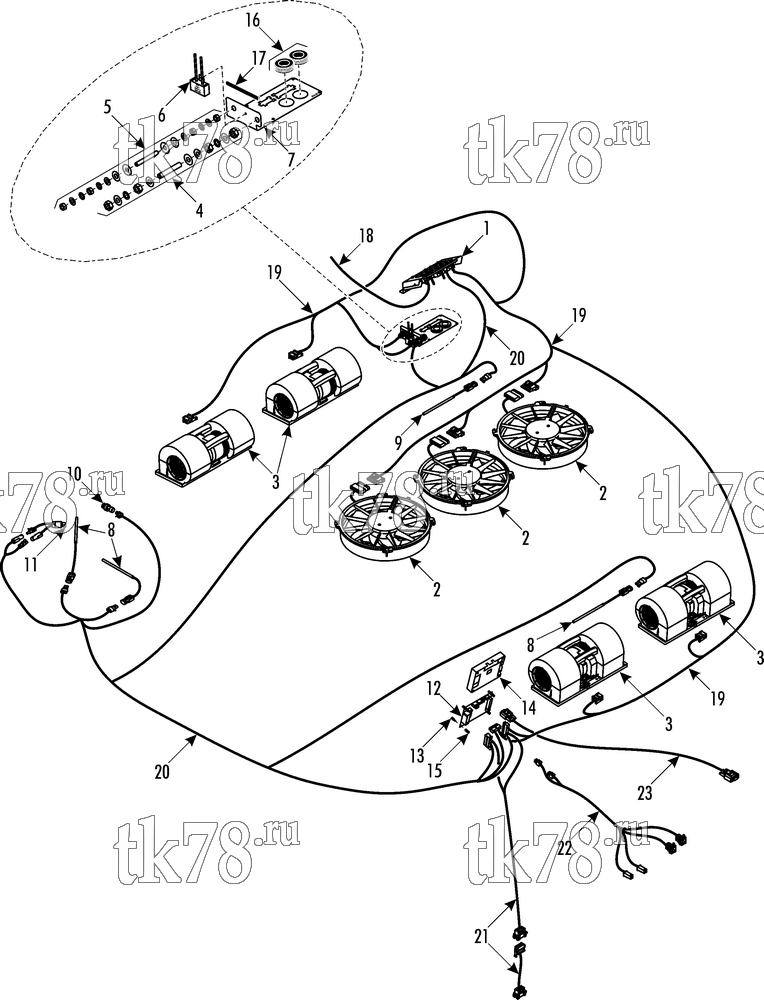

Установкa Thermo King ATHENIA S700 W CAN VDL схема ELECTRICAL COMPONENTS – 234E3
Обновление от: 3/12/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER (see 234E2) | 1 | |
| 2 | 78-1529 | FAN | 3 | |
| 3 | 78-1679 | BLOWER | 4 | |
| 4 | 55-9191 | STUD - negative (M10) | 1 | |
| 55-3672 | LOCKWASHER | 1 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 55-9189 | NUT | 4 | ||
| 5 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon, w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 6 | 41-6098 | SUPRESSOR - voltage | 1 | |
| 51-888 | STUD - self clinching | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 7 | 92-4041 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 8 | 41-4157 | SENSOR - temperature | 3 | |
| 9 | 41-4335 | SENSOR - temperature | 1 | |
| 10 | 41-5781 | TRANSDUCER | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 11 | 41-4209 | SWITCH - lpco | 1 | |
| 12 | 41-8140 | MODULE - main, can | 1 | |
| 51-1848 | STUD - module | 4 | ||
| 55-8410 | FLATWASHER | 4 | ||
| 13 | 51-1849 | SPACER | 4 | |
| 14 | 92-7576 | COVER - module | 1 | |
| 15 | 51-1850 | SPACER | 4 | |
| 55-9195 | SCREW - cover | 4 | ||
| 55-9057 | LOCKWASHER | 4 | ||
| 55-8410 | FLATWASHER | 4 | ||
| 16 | 33-452 | GROMMET (0.875 id) | 2 | |
| 17 | 92-3279 | RUBBER - profile | 1 | |
| 18 | 41-8630 | HARNESS - power supply | 1 | |
| 19 | 41-8628 | HARNESS - fan & blowers (for connectors see 234E4) | 1 | |
| 20 | 41-8631 | HARNESS - control (for connectors see 234E4) | 1 | |
| 21 | 41-8629 | HARNESS - compressor (for connectors see 234E4) | 1 | |
| 22 | 41-8624 | HARNESS - can interface (for connectors see 234E4) | 1 | |
| 23 | 41-5750 | CABLE - connecting | 1 |
