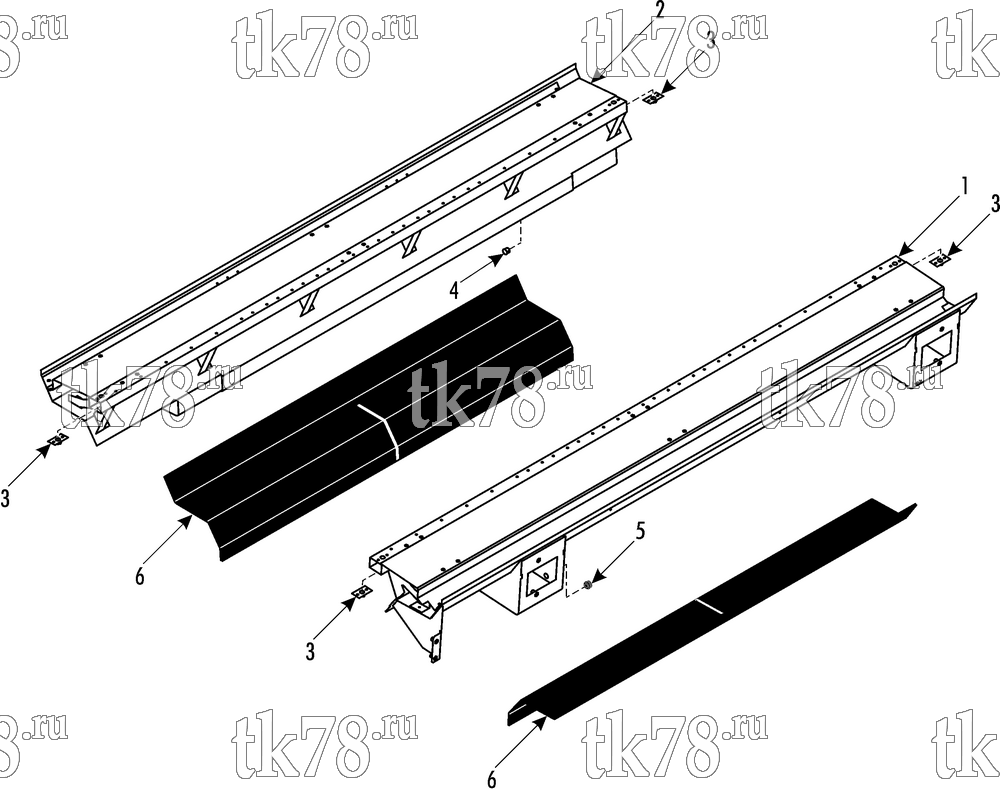

Установкa Thermo King ATHENIA S700 W CAN VDL схема AIR INTAKE w/o FA DAMPER (008690) – 234D9
Обновление от: 3/12/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8219 | BASE - weldment | 1 | |
| 2 | 98-8220 | BASE - weldment | 1 | |
| 55-8375 | NUT - captive (M5, cover hinge) | 12 | ||
| 55-9837 | NUT - captive (M6, evaporator base to frame) | 10 | ||
| 3 | 92-4030 | BRACKET - lifting eye | 4 | |
| 55-5130 | RIVET - bracket | 8 | ||
| 4 | 55-9574 | PLUG | 1 | |
| 5 | 33-314 | GROMMET (0.312 id) | 1 | |
| 6 | 92-5055 | INSULATION | 2 |
