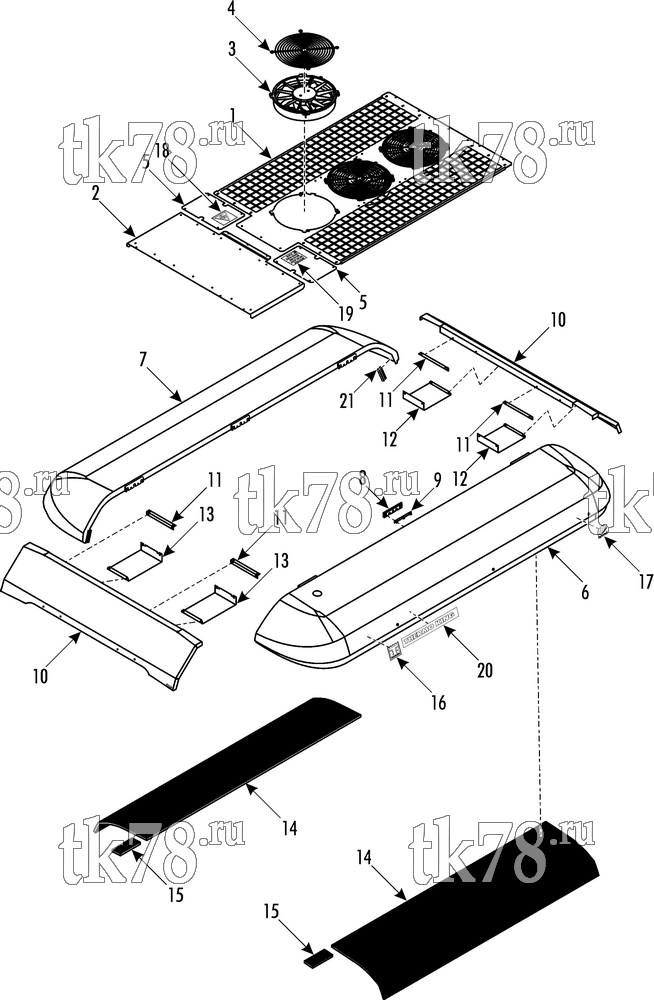

Установкa Thermo King ATHENIA S700 W CAN VDL схема COVER – 234D6
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8216 | COVER - condenser | 1 | |
| 55-7373 | NUT - captive | A/R | ||
| 2 | 98-7243 | COVER - frame (added) | 1 | |
| 55-5130 | RIVET - covers (5/32, 0.425) | A/R | ||
| 55-5047 | RIVET - covers (5/32, 0.550) | A/R | ||
| 3 | 78-1529 | FAN | 3 | |
| 4 | 98-5425 | GUARD - fan | 3 | |
| 55-7372 | SCREW - fan & guard to cover | 16 | ||
| 55-7170 | LOCKWASHER | 16 | ||
| 56-2086 | FLATWASHER | 64 | ||
| 5 | 92-4018 | PLATE | 2 | |
| 55-5047 | RIVET - plate | 8 | ||
| 6 | 98-7246 | COVER - evaporator | 1 | |
| 7 | 98-7247 | COVER - evaporator | 1 | |
| 55-9306 | SCREW - cover | 6 | ||
| 8 | 91-7098 | HINGE - cover | 6 | |
| 55-7036 | SCREW - hinge to frame & cover | 30 | ||
| 55-7171 | LOCKWASHER | 30 | ||
| 55-7089 | FLATWASHER | 30 | ||
| 9 | 92-4019 | NUTPLATE | 6 | |
| 10 | 98-6898 | SPOILER | 2 | |
| 11 | 92-4021 | BRACKET - spoiler | 4 | |
| 12 | 92-4024 | BRACKET - spoiler | 2 | |
| 13 | 92-4025 | BRACKET - spoiler | 2 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 14 | 92-5046 | INSULATION - cover | 2 | |
| 15 | 95-7564 | INSULATION - cover | 2 | |
| 16 | 99-2789 | NAMEPLATE - TK logo | 2 | |
| 17 | 92-1307 | NAMEPLATE - IR logo | 2 | |
| 18 | 99-8506 | NAMEPLATE - Caution Fan | 1 | |
| 19 | 99-8507 | NAMEPLATE - Caution Fan | 1 | |
| 20 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 21 | 92-146 | RUBBER - profile | A/R |
