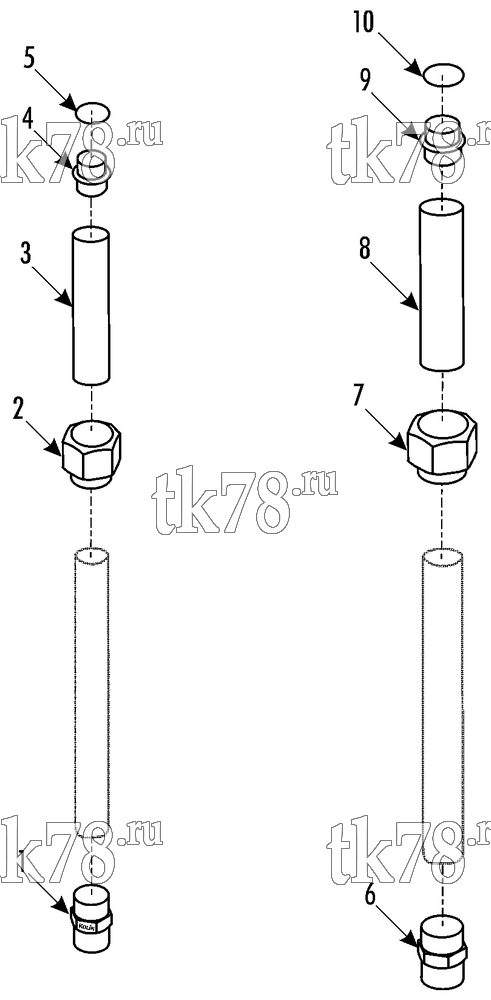

Установкa Thermo King ATHENIA S700 Split схема ADAPTERS KIT (720090) – 211G8
Обновление от: 6/6/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-8692 | ADAPTER (3/4 in) | 2 | |
| 2 | 61-2487 | NUT | 2 | |
| 3 | 61-3647 | TUBE | 2 | |
| 4 | 61-3648 | ADAPTER | 2 | |
| 5 | 33-2846 | O-RING (7/16 id) | 2 | |
| 6 | 61-3473 | ADAPTER (7/8 in) | 2 | |
| 7 | 51-857 | NUT | 2 | |
| 8 | 61-3109 | TUBE | 2 | |
| 9 | 61-3008 | ADAPTER | 2 | |
| 10 | 33-2848 | O-RING (9/16 id) | 2 |
