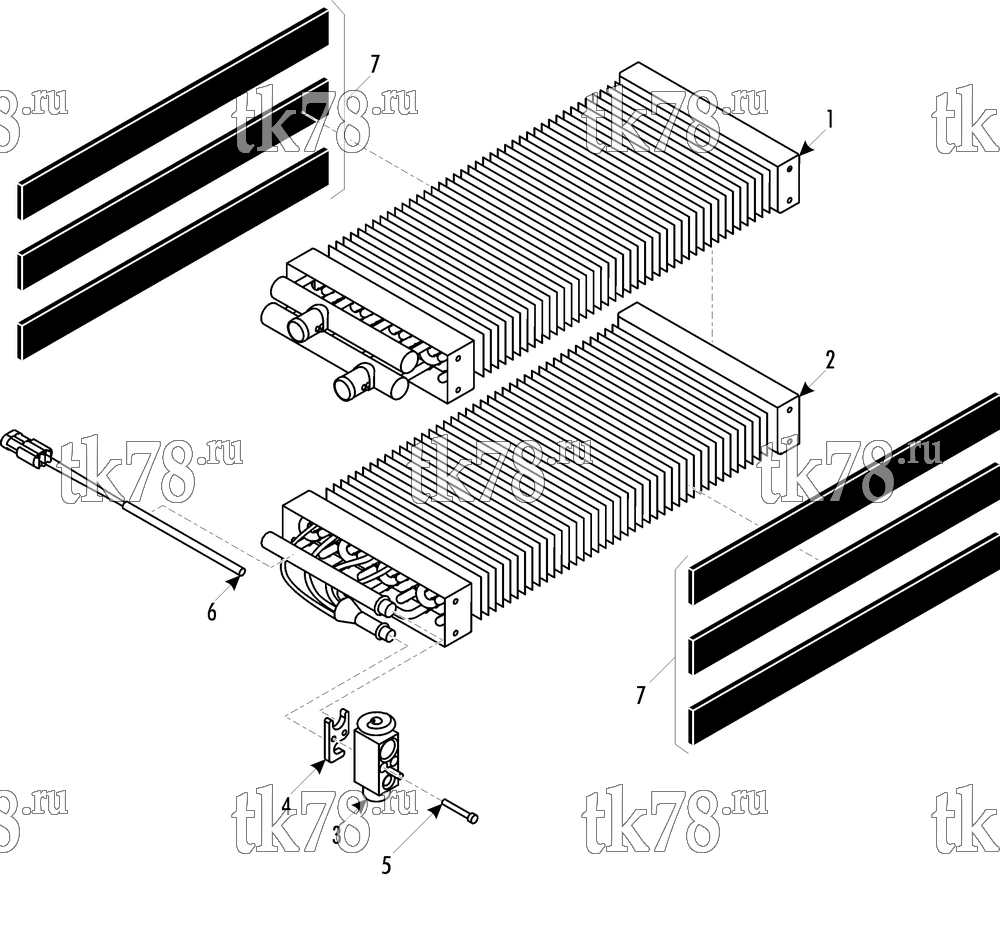

Установкa Thermo King ATHENIA S500 SB-200 BERKHOF схема COOL and HEAT MODULE – 245D9
Обновление от: 10/14/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2471 | HEATER - water | 1 | |
| 51-257 | RIVET - heater & evaporator | 1 | ||
| 2 | 67-2469 | EVAPORATOR | 1 | |
| 3 | 61-2546 | VALVE - expansion | 1 | |
| 4 | 92-5860 | FLANGE - valve | 1 | |
| 5 | 51-1343 | SCREW - flange | 2 | |
| 6 | 41-4157 | SENSOR - temperature | 1 | |
| 7 | 92-3175 | STRIP - neoprene | A/R |
