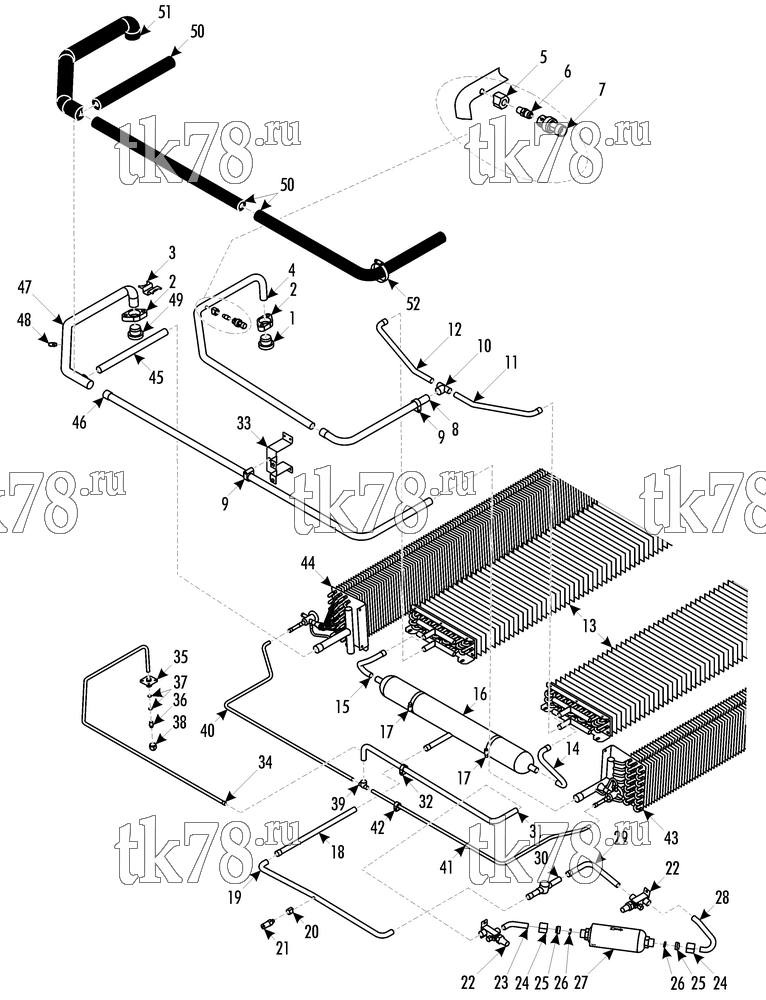

Установкa Thermo King ATHENIA S500 SB-200 BERKHOF схема TUBE COOLING (S500) – 245D5
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-9369 | ADAPTER - inlet | 1 | |
| 2 | 55-9186 | FLANGE | 2 | |
| 55-5427 | SCREW - flange | 4 | ||
| 3 | 92-4015 | BRACKET- adapters | 1 | |
| 55-6994 | SCREW - bracket | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 4 | 61-2760 | TUBE - to condenser | 1 | |
| 5 | 66-4553 | FITTING - saddle | 1 | |
| 6 | 55-7213 | BODY - valve | 1 | |
| 7 | 41-5781 | TRANSDUCER | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 8 | 61-3323 | TUBE - to condenser | 1 | |
| 9 | 55-7013 | CLAMP - tube | 2 | |
| 55-7027 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 10 | 55-9229 | TEE (5/8 x 5/8 x 7/8) | 1 | |
| 11 | 61-3038 | TUBE - to condenser | 1 | |
| 12 | 61-3039 | TUBE - to condenser | 1 | |
| 13 | NSS | CONDENSER - standard (see 194G2) | 2 | |
| 14 | 61-3040 | TUBE - to receiver tank | 1 | |
| 15 | 61-3041 | TUBE - to receiver tank | 1 | |
| 16 | 67-2026 | TANK - receiver | 1 | |
| 17 | 55-2688 | CLAMP - tank | 2 | |
| 18 | 61-3324 | TUBE - to filter drier | 1 | |
| 19 | 61-2765 | TUBE - to filter drier | 1 | |
| 20 | 99-3060 | FITTING - saddle | 1 | |
| 21 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 22 | 66-2104 | VALVE - shut-off | 2 | |
| 55-6994 | SCREW - valve | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 1 | ||
| 23 | 61-2766 | TUBE - to filter drier | 1 | |
| 24 | 55-7675 | NUT - shoulder | 2 | |
| 25 | 55-6356 | SHOULDER | 2 | |
| 26 | 33-672 | O-RING | 2 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 27 | 66-9352 | FILTER - drier | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 28 | 61-2767 | TUBE - to indicator | 1 | |
| 29 | 61-2768 | TUBE - to indicator | 1 | |
| 30 | 66-9856 | INDICATOR - liquid (sight glass) | 1 | |
| 31 | 61-2769 | TUBE - to evaporator | 1 | |
| 32 | 91-758 | CLAMP - tube | 1 | |
| 55-8316 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 33 | 92-4016 | HOLDER - tube | 1 | |
| 55-5130 | RIVET - holder | A/R | ||
| 34 | 61-2770 | TUBE | 1 | |
| 35 | 61-1079 | FITTING - assembly | 1 | |
| 55-5130 | RIVET - fitting | A/R | ||
| 36 | 92-120 | INSERT - plug | 1 | |
| 37 | 33-1461 | O-RING | 2 | |
| 38 | 92-121 | NUT | 1 | |
| 39 | 55-7142 | TEE (3/8 x 3/8 x 5/8) | 1 | |
| 40 | 61-2772 | TUBE - to evaporator | 1 | |
| 41 | 61-2771 | TUBE - to evaporator | 1 | |
| 42 | 55-6388 | CLAMP - tube | 1 | |
| 55-8464 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 43 | 67-2291 | COIL - evaporator/heater curbside (see 218E6) | 1 | |
| 44 | 67-2292 | COIL - evaporator/heater roadside (see 218E6) | 1 | |
| 45 | 61-2773 | TUBE - tube to compressor | 1 | |
| 46 | 61-2774 | TUBE - tube to compressor | 1 | |
| 47 | 61-2775 | TUBE - tube to compressor | 1 | |
| 48 | 61-2059 | VALVE - service port | 1 | |
| 49 | 51-374 | ADAPTER - outlet | 1 | |
| 50 | 91-3542 | TUBE - rubber | A/R | |
| 51 | 92-2015 | TUBE - rubber | A/R | |
| 52 | 55-4979 | CLAMP - rubber tube | 1 |
