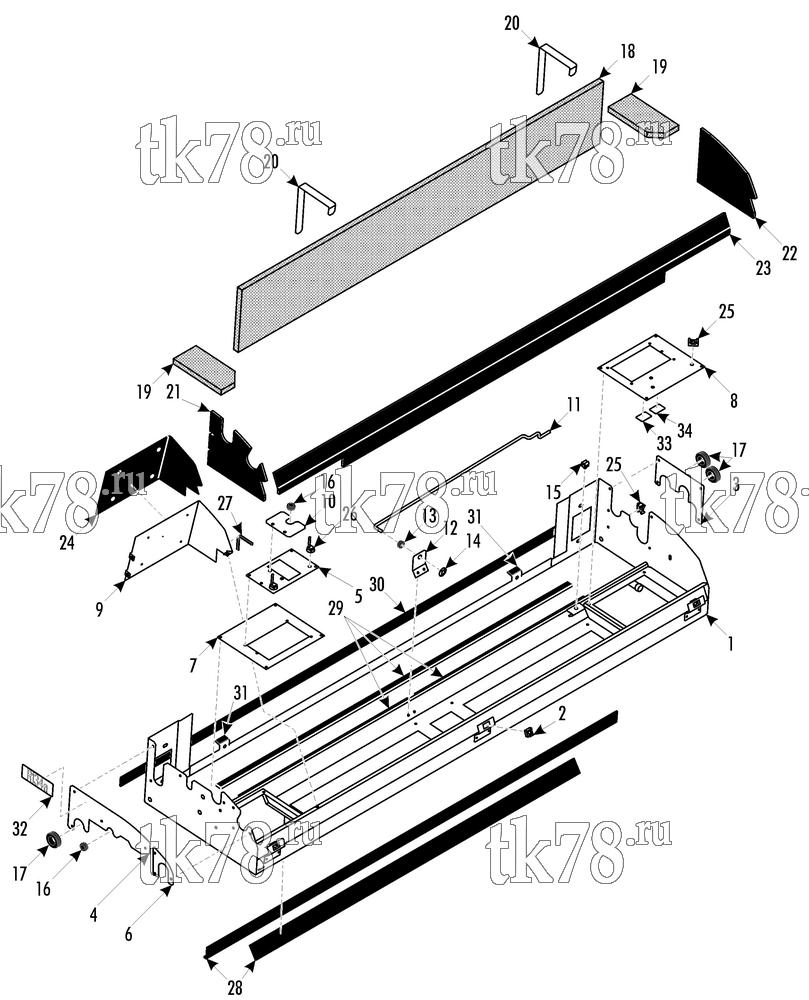

Установкa Thermo King ATHENIA S500 SB-200 BERKHOF схема EVAPORATOR BASE 1 – 245D2
Обновление от: 10/14/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8217 | BASE - evaporator | 1 | |
| 55-6994 | SCREW - base | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 2 | 55-9194 | NUT - captive | 3 | |
| 3 | 92-4003 | PLATE - cover | 1 | |
| 4 | 92-4618 | PLATE - cover | 1 | |
| 5 | 92-7565 | PLATE - electric connection | 1 | |
| 6 | 92-7465 | PLATE - cover | 1 | |
| 7 | 92-7566 | PLATE - board | 1 | |
| 8 | 92-7567 | PLATE - board | 1 | |
| 55-5130 | RIVET - plates | A/R | ||
| 9 | 92-7568 | COVER | 1 | |
| 10 | 92-6089 | COVER | 1 | |
| 55-7664 | SCREW - cover | 5 | ||
| 55-7369 | LOCKWASHER | 5 | ||
| 55-7697 | FLATWASHER | 5 | ||
| 55-7866 | NUT - captive | 5 | ||
| 11 | 92-4005 | SUPPORT - cover | 1 | |
| 12 | 92-5048 | BRACKET - support | 1 | |
| 55-5130 | RIVET - bracket | 2 | ||
| 13 | 83-258 | GROMMET (0.25 id) | 1 | |
| 14 | 51-809 | FLATWASHER | 1 | |
| 15 | 51-1669 | CLIP - plastic | 1 | |
| 16 | 33-428 | GROMMET (0.5 id) | 2 | |
| 17 | 33-452 | GROMMET (0.875 id) | 3 | |
| 18 | 92-5049 | FILTER - evaporator | 1 | |
| 19 | 92-4007 | FILTER - evaporator | 2 | |
| 20 | 92-5831 | CLIP | 2 | |
| 21 | 92-7569 | INSULATION | 1 | |
| 22 | 92-5594 | INSULATION | 1 | |
| 23 | 92-5050 | INSULATION | 1 | |
| 24 | 92-7570 | INSULATION | 1 | |
| 25 | 99-3281 | MOUNT - bandwrap | 2 | |
| 55-5130 | RIVET - mount | 1 | ||
| 55-7664 | SCREW - mount | 1 | ||
| 55-7369 | LOCKWASHER | 1 | ||
| 55-7866 | NUT - captive | 1 | ||
| 26 | 51-1631 | STRAP - cable | 5 | |
| 27 | 92-3279 | RUBBER - profile | A/R | |
| 28 | 33-2420 | STRIP - neoprene | A/R | |
| 29 | 99-2996 | STRIP - neoprene | A/R | |
| 30 | 99-6968 | STRIP - neoprene | A/R | |
| 31 | 99-1908 | STRIP - neoprene | A/R | |
| 32 | 91-5459 | NAMEPLATE - R134a | 1 | |
| 33 | 91-7550 | NAMEPLATE - liquid out | 1 | |
| 34 | 91-7703 | NAMEPLATE - liquid in | 1 |
