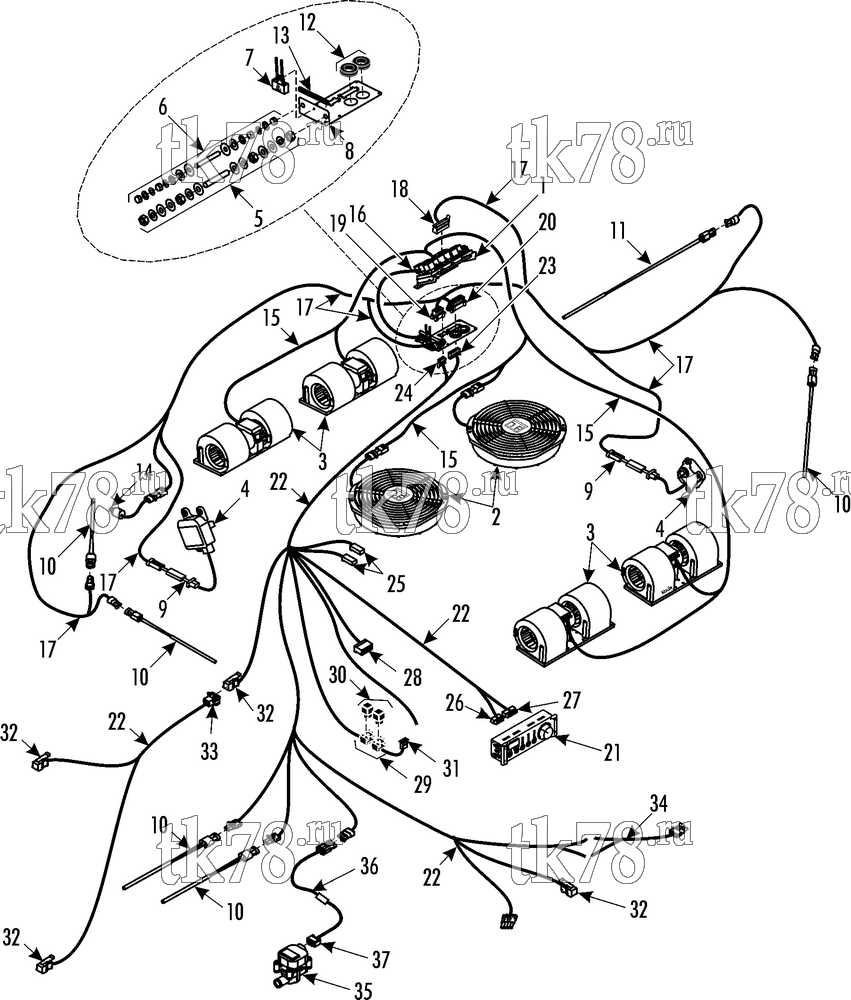

Установкa Thermo King ATHENIA S500 N 1004 Jonckheere схема ELECTRICAL COMPONENTS – 224D0
Обновление от: 10/9/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER (see 203H5) | 1 | |
| 2 | 78-1414 | FAN (see 203F5) | 2 | |
| 3 | 78-1297 | BLOWER (see 203G4) | 4 | |
| 4 | 41-2755 | SERVOMOTOR (218E5 or 203F9) | 2 | |
| 5 | 55-9191 | STUD - negative (M10) | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 6 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 7 | 41-6098 | SUPPRESSOR - voltage | 1 | |
| 51-888 | STUD - self clinching | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 8 | 92-4041 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 9 | 41-7190 | CONTROLLER - servomotor | 2 | |
| 10 | 41-4157 | SENSOR - temperature | 5 | |
| 11 | 41-4335 | SENSOR - temperature | 1 | |
| 12 | 33-452 | GROMMET (0.875 id) | 2 | |
| 13 | 92-3279 | STRIP - flange | A/R | |
| 14 | 41-5220 | SWITCH - hpco | 1 | |
| 41-3831 | SWITCH - only | 1 | ||
| 15 | 41-7845 | HARNESS - control panel (for connectors see 115D14) | 1 | |
| 16 | 41-7761 | HARNESS - supply | 1 | |
| 17 | 41-7846 | HARNESS - control (for connectors see 115D14) | 1 | |
| 18 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 19 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 20 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 21 | 41-4658 | ClimaAIRE II (see 184F9) | 1 | |
| 22 | 41-7938 | HARNESS - drive panel (for connectors see 115D14) | 1 | |
| 41-7307 | RESISTOR | 1 | ||
| 23 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 24 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 25 | 44-6381 | CONNECTOR (1-pin, female) | 2 | |
| 26 | 41-661 | CONNECTOR (14 socket) | 1 | |
| 27 | 41-650 | CONNECTOR (18 socket) | 1 | |
| 28 | 41-5828 | CONNECTOR (8-pin) | 1 | |
| 29 | 44-5537 | SOCKET - relay | 2 | |
| 30 | 41-5657 | RELAY | 2 | |
| 31 | 41-4965 | HOLDER - fuse | 1 | |
| 41-1292 | FUSE (5 amp) | 1 | ||
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 32 | 41-2769 | CONNECTOR (4-pin, female) | 4 | |
| 33 | 41-4949 | CONNECTOR (4-pin, male) | 1 | |
| 34 | 41-5390 | HARNESS - water valve (for connectors see 115D14) | 1 | |
| 35 | 41-6592 | VALVE - water | 1 | |
| 36 | 41-6767 | CONTROLLER - servomotor (for connectors see 115D14) | 1 | |
| 37 | 41-3288 | CONNECTOR (6-pin, female) | 1 |
