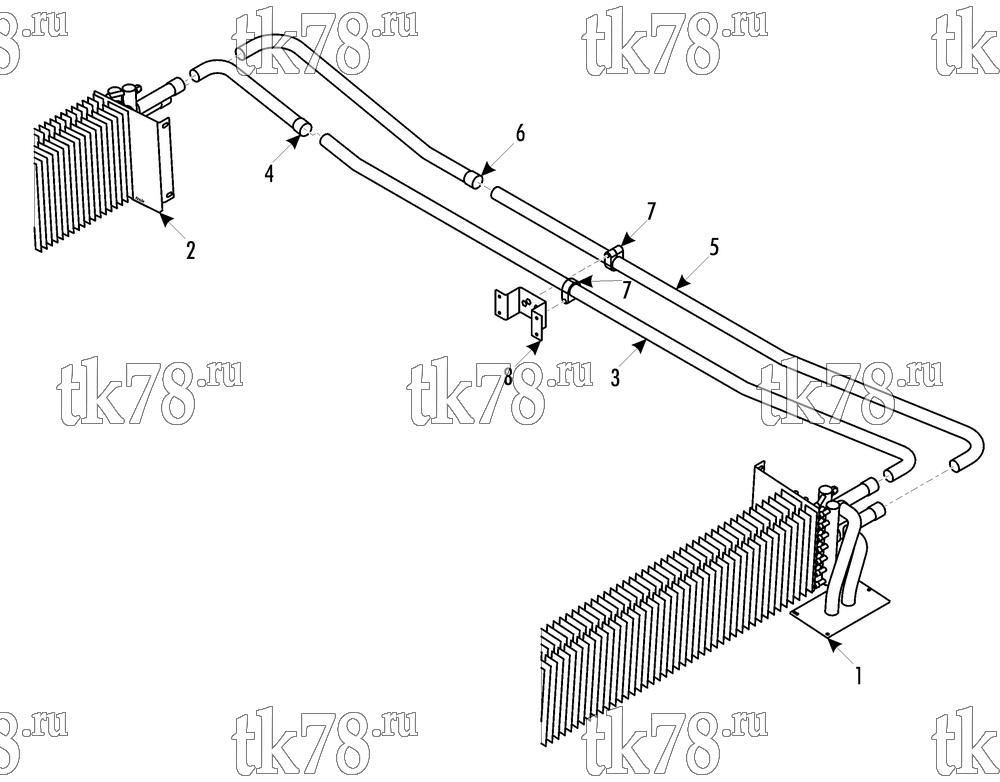

Установкa Thermo King ATHENIA MKII S960 W 1004 TORINO IVECO схема TUBE HEATING – 253C7
Обновление от: 2/6/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2679 | COIL - evaporator/heater, #1 (S960), before 04/2012 | 1 | |
| 67-2732 | COIL - evaporator/heater, #1 (S960), 04/2012 and after | 1 | ||
| 2 | 67-2631 | COIL - evaporator/heater, #2 (S960), before 04/2012 | 1 | |
| 67-2733 | COIL - evaporator/heater, #2 (S960), 04/2012 and after | 1 | ||
| 3 | 61-4984 | TUBE - heating | 1 | |
| 4 | 61-5630 | TUBE - heating | 1 | |
| 5 | 61-4990 | TUBE - heating | 1 | |
| 6 | 61-5631 | TUBE - heating | 1 | |
| 7 | 55-7013 | CLAMP - tube | 2 | |
| 55-7027 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 8 | 92-9086 | HOLDER - tube | 1 |
