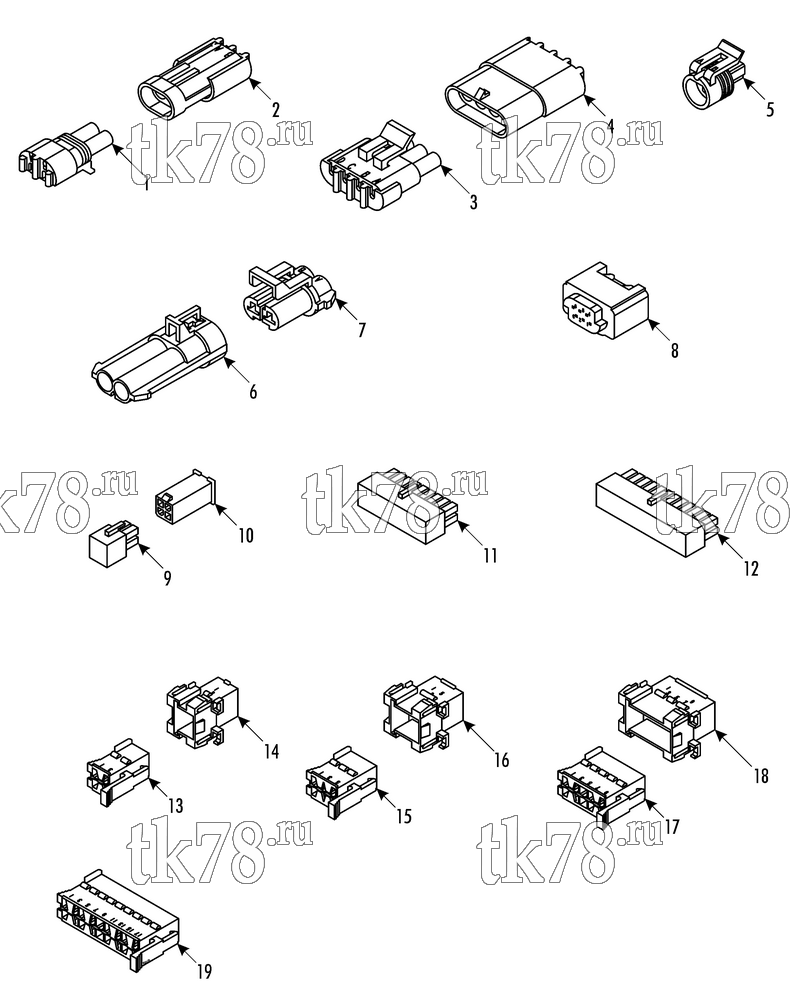

Установкa Thermo King ATHENIA MKII S960 1012 схема CONNECTORS – 252E9
Обновление от: 6/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 2 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 3 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 4 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 5 | 41-5799 | CONNECTOR - 3 way, female | 1 | |
| 6 | 44-8487 | CONNECTOR - male (2-pin) | 1 | |
| 7 | 44-9688 | CONNECTOR - female (2-pin) | 1 | |
| 8 | 41-3288 | CONNECTOR - (6-pin) | 1 | |
| 9 | 41-654 | CONNECTOR - in-line (4-pin, male) | 1 | |
| 10 | 41-8221 | CONNECTOR - in-line (4-pin, female) | 1 | |
| 11 | 41-650 | CONNECTOR - in-line (18-pin, male) | 1 | |
| 12 | 41-656 | CONNECTOR - in-line (24-pin, male) | 1 | |
| 13 | 41-2769 | CONNECTOR - female (4-pin) | 1 | |
| 14 | 41-4949 | CONNECTOR - male (4-pin) | 1 | |
| 15 | 41-2767 | CONNECTOR - female (6-pin) | 1 | |
| 16 | 41-4055 | CONNECTOR - male (6-pin) | 1 | |
| 17 | 41-3855 | CONNECTOR - female (10-pin) | 1 | |
| 18 | 41-4054 | CONNECTOR - male (10-pin) | 1 | |
| 19 | 41-3856 | CONNECTOR - female (18-pin) | 1 |
