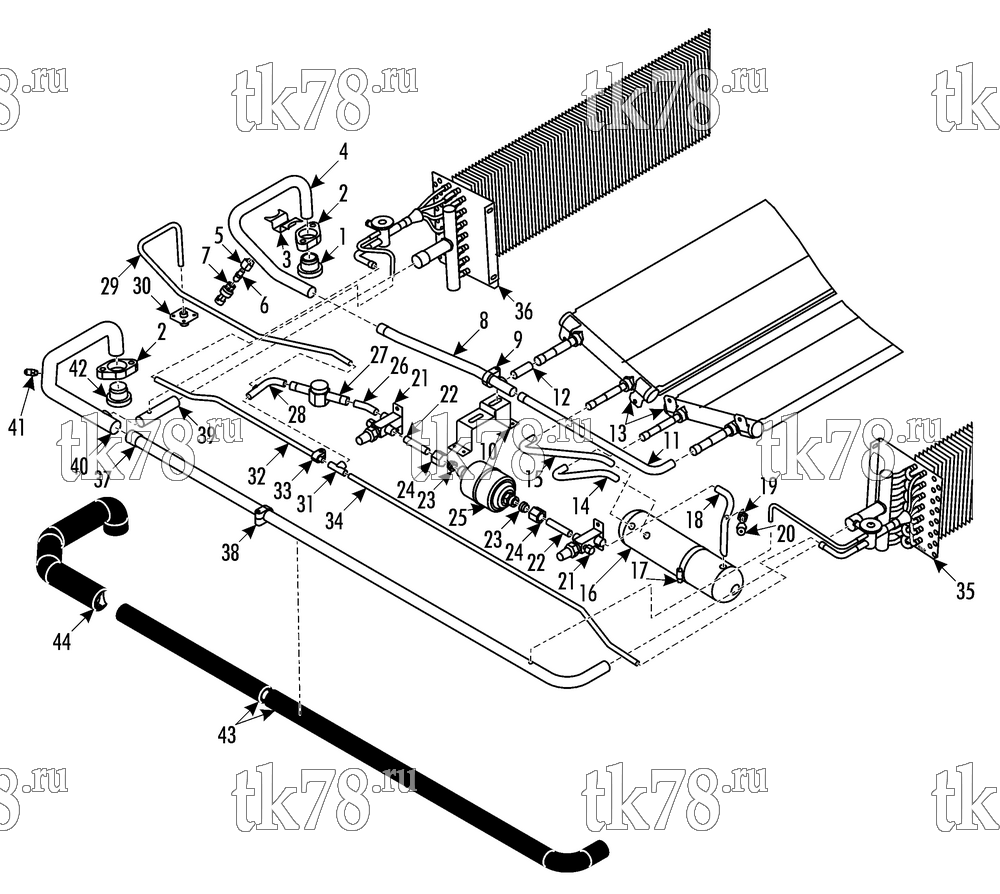

Установкa Thermo King ATHENIA MKII S960 1012 схема TUBE COOLING – 252E2
Обновление от: 6/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-9369 | ADAPTER - inlet | 1 | |
| 2 | 55-9186 | FLANGE | 2 | |
| 55-5427 | SCREW - flange | 4 | ||
| 3 | 92-4015 | BRACKET - adapters | 1 | |
| 55-6994 | SCREW - bracket | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 4 | 61-4064 | TUBE | 1 | |
| 5 | 66-4553 | FITTING - saddle | 1 | |
| 6 | 55-7213 | BODY - valve | 1 | |
| 7 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 8 | 61-5647 | TUBE (narrow unit) | 1 | |
| 61-5648 | TUBE (wide unit) | 1 | ||
| 9 | 91-372 | CLAMP - tube | 1 | |
| 55-7739 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-6997 | NUT - captive | 1 | ||
| 10 | 92-9095 | HOLDER - tube | 1 | |
| 11 | 61-5649 | TUBE | 1 | |
| 12 | 61-5650 | TUBE | 1 | |
| 13 | 67-2626 | CONDENSER (see 252D5) | 2 | |
| 14 | 61-5651 | TUBE | 1 | |
| 15 | 61-5652 | TUBE | 1 | |
| 16 | 67-2637 | TANK - receiver | 1 | |
| 17 | 55-2688 | CLAMP - tank | 1 | |
| 18 | 61-5653 | TUBE | 1 | |
| 19 | 55-3295 | FITTING - saddle | 1 | |
| 20 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 21 | 66-4694 | VALVE - shut-off | 2 | |
| 55-6994 | SCREW - valve | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 22 | 61-5654 | TUBE | 2 | |
| 23 | 55-6837 | SHOULDER | 2 | |
| 24 | 55-6838 | NUT - shoulder | 2 | |
| 25 | 66-8344 | FILTER - drier | 1 | |
| 26 | 61-5655 | TUBE | 1 | |
| 27 | 66-1188 | INDICATOR - liquid | 1 | |
| 28 | 61-5636 | TUBE | 1 | |
| 29 | 61-5637 | TUBE (narrow unit) | 1 | |
| 61-5638 | TUBE (wide unit) | 1 | ||
| 30 | 61-1079 | FITTING - assembly | 1 | |
| 55-5130 | RIVET - fitting | 4 | ||
| 31 | 55-6222 | TEE (3/8C x 3/8C x 1/2C) | 1 | |
| 32 | 61-5634 | TUBE (narrow unit) | 1 | |
| 61-5635 | TUBE (wide unit) | 1 | ||
| 33 | 55-6388 | CLAMP - tube | 1 | |
| 34 | 61-5632 | TUBE (narrow unit) | 1 | |
| 61-5633 | TUBE (wide unit) | 1 | ||
| 35 | 67-2624 | COIL - evaporator, #1 (S805/S500/S700) | 1 | |
| 67-2628 | COIL - evaporator, #1 (S960) | 1 | ||
| 67-2664 | COIL - evaporator, #1 (S960 AdvanTech) | 1 | ||
| 67-2627 | COIL - evaporator/heater, #1 (S805, S500/S700 0% FA) | 1 | ||
| 67-2630 | COIL - evaporator/heater, #1 (S960, S500/S700 100% FA) | 1 | ||
| 67-2666 | COIL - evaporator/heater, #1 (S960 AdvanTech) | 1 | ||
| 36 | 67-2625 | COIL - evaporator, #2 (S805/S500/S700) | 1 | |
| 67-2629 | COIL - evaporator, #2 (S960) | 1 | ||
| 67-2665 | COIL - evaporator, #2 (S960 AdvanTech) | 1 | ||
| 67-2644 | COIL - evaporator/heater, #2 (S805, S500/S700 0% FA) | 1 | ||
| 67-2631 | COIL - evaporator/heater, #2 (S960, S500/S700 100% FA) | 1 | ||
| 67-2667 | COIL - evaporator/heater, #2 (S960 AdvanTech) | 1 | ||
| 37 | 61-4075 | TUBE (narrow unit) | 1 | |
| 61-4081 | TUBE (wide unit) | 1 | ||
| 38 | 55-7013 | CLAMP - tube | 1 | |
| 55-8993 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-6997 | NUT - captive | 1 | ||
| 39 | 61-4076 | TUBE | 1 | |
| 40 | 61-4077 | TUBE | 1 | |
| 41 | 61-2059 | VALVE | 1 | |
| 42 | 55-9370 | ADAPTER | 1 | |
| 43 | 91-3542 | TUBE - rubber | 1 | |
| 44 | 92-2015 | TUBE - rubber | 1 |
