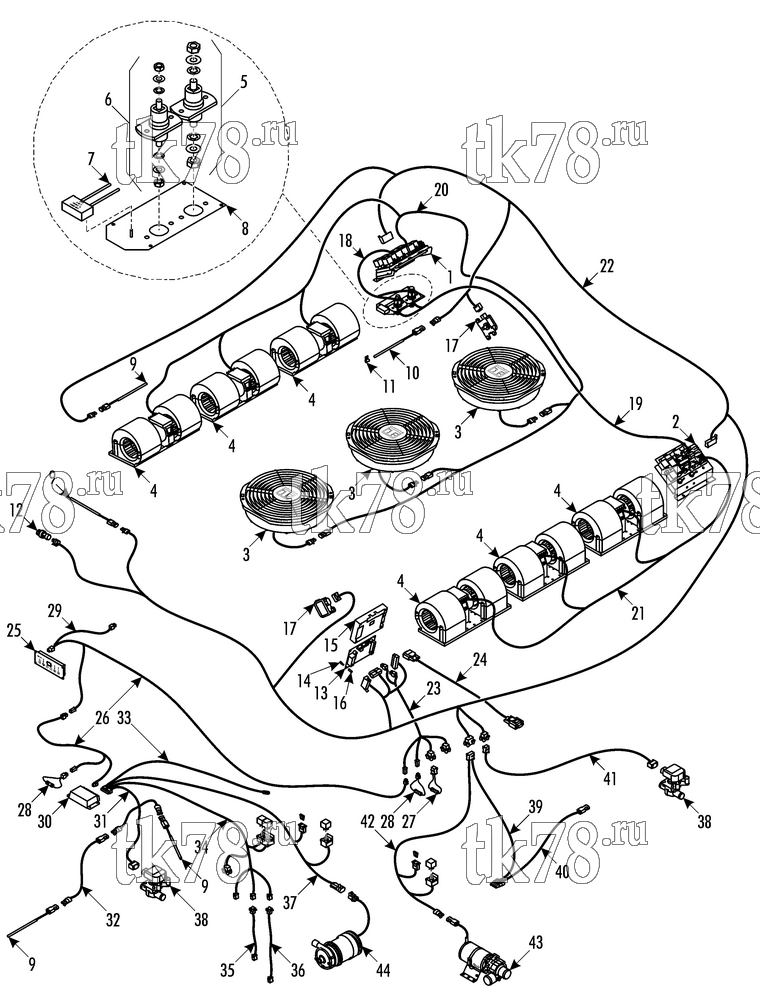

Установкa Thermo King ATHENIA MKII S805 схема ELECTRICAL COMPONENTS – 252E8
Обновление от: 6/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER - left (see 252E6) | 1 | |
| 2 | NSS | CONTROLLER - right (see 252E7) | 1 | |
| 3 | 78-1414 | FAN | 3 | |
| 4 | 78-1297 | BLOWER | 6 | |
| 5 | 41-9743 | CONNECTOR - wire, negative | 1 | |
| 55-3066 | LOCKWASHER | 2 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-9189 | NUT | 2 | ||
| 6 | 41-9742 | CONNECTOR - wire, positive | 1 | |
| 55-3238 | LOCKWASHER | 2 | ||
| 55-8955 | FLATWASHER | 2 | ||
| 305-1653 | NUT | 2 | ||
| 55-6994 | SCREW - connectors | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 7 | 41-6098 | SUPRESSOR - voltage | 1 | |
| 51-888 | STUD - self clinching | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 8 | 92-9087 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 9 | 41-4157 | SENSOR - temperature | 4 | |
| 10 | 41-4335 | SENSOR - temperature | 1 | |
| 11 | 56-546 | CLAMP | 1 | |
| 55-7169 | SCREW - clamp | 1 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7034 | NUT - hexstop | 1 | ||
| 12 | 41-5781 | TRANSDUCER - dpt | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 13 | 41-8140 | MODULE - main, can | 1 | |
| 51-1848 | STUD - module | 4 | ||
| 55-8410 | FLATWASHER | 4 | ||
| 14 | 51-1849 | SPACER | 4 | |
| 15 | 92-7576 | COVER - module | 1 | |
| 16 | 51-1850 | SPACER | 4 | |
| 55-9195 | SCREW - cover | 4 | ||
| 55-9057 | LOCKWASHER | 4 | ||
| 55-8410 | FLATWASHER | 4 | ||
| 17 | 41-3255 | SERVOMOTOR | 2 | |
| 18 | 41-7761 | HARNESS - supply, left | 1 | |
| 19 | 41-9803 | HARNESS - supply, right | 1 | |
| 20 | 41-9801 | HARNESS - control panel left (for connectors see 252E9) | 1 | |
| 21 | 41-9802 | HARNESS - control panel right (for connectors see 252E9) | 1 | |
| 22 | 41-9800 | HARNESS - control (for connectors see 252E9) | 1 | |
| 23 | 41-9799 | HARNESS - can interface (for connectors see 252E9) | 1 | |
| 24 | 41-5750 | CABLE - connecting | 1 | |
| 25 | 41-8403 | ClimaAIRE I D | 1 | |
| 26 | 41-8791 | HARNESS - can, CA I D x unit (9m, for connectors see 252E9) | 2 | |
| 41-8792 | HARNESS - can, CA I D x unit (18m, for connectors see 252E9) | 2 | ||
| 27 | 41-9798 | TERMINATOR - can | 1 | |
| 28 | 41-8787 | TERMINATOR - can | 2 | |
| 29 | 41-8782 | HARNESS - power (for connectors see 252E9) | 1 | |
| 30 | 41-8142 | MODULE - floor, can | 1 | |
| 55-2359 | FLATWASHER | 4 | ||
| 31 | 41-8793 | HARNESS - floor water valve (2m, for connectors see 252E9) | 1 | |
| 41-8797 | HARNESS - floor water valve (5m, for connectors see 252E9) | 1 | ||
| 32 | 41-5228 | HARNESS - extension temperature sensor (9m, for connectors see 252E9) | 1 | |
| 33 | 41-8801 | HARNESS - floor module x preheater (7m) | 1 | |
| 34 | 41-8794 | HARNESS - forced air blower (2m, for connectors see 252E9) | 1 | |
| 41-8798 | HARNESS - forced air blower (5m, for connectors see 252E9) | 1 | ||
| 44-5537 | SOCKET - relay | 2 | ||
| 41-5657 | RELAY | 2 | ||
| 35 | 41-8795 | HARNESS - extension forced air blower (10m, for connectors see 252E9) | 1 | |
| 36 | 41-8796 | HARNESS - extension forced air blower (20m, for connectors see 252E9) | 1 | |
| 37 | 41-8800 | HARNESS - floor module x boost pump (7m, for connectors see 252E9) | 1 | |
| 44-5537 | SOCKET - relay | 1 | ||
| 41-5657 | RELAY | 1 | ||
| 41-4965 | HOLDER - fuse | 1 | ||
| 44-9344 | FUSE | 1 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 38 | 41-6592 | VALVE - WATER (2 way) | 1 | |
| 41-5649 | VALVE - WATER (3 way) | 1 | ||
| 39 | 41-8783 | HARNESS - compressor (8m, for connectors see 252E9) | 1 | |
| 41-8784 | HARNESS - compressor (14m, for connectors see 252E9) | 1 | ||
| 41-8790 | HARNESS - compressor (20m, for connectors see 252E9) | 1 | ||
| 40 | 41-8788 | HARNESS - excitation (14m, for connectors see 252E9) | 1 | |
| 41-8799 | HARNESS - excitation (20m, for connectors see 252E9) | 1 | ||
| 41 | 41-5085 | HARNESS - control panel x vater valve (1m, for connectors see 252E9) | 1 | |
| 41-5084 | HARNESS - control panel x vater valve (5m, for connectors see 252E9) | 1 | ||
| 41-7347 | HARNESS - control panel x vater valve (6m, for connectors see 252E9) | 1 | ||
| 41-8785 | HARNESS - control panel x vater valve (10m, for connectors see 252E9) | 1 | ||
| 41-8786 | HARNESS - control panel x vater valve (20m, for connectors see 252E9) | 1 | ||
| 42 | 41-8789 | HARNESS - unit x boost pump (14m, for connectors see 252E9) | 1 | |
| 44-5537 | SOCKET - relay | 1 | ||
| 41-5657 | RELAY | 1 | ||
| 41-4965 | HOLDER - fuse | 1 | ||
| 44-9344 | FUSE | 1 | ||
|
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 43 | 12-822 | PUMP - boost (see 186D1) | 1 | |
| 44 | 12-622 | PUMP - boost (see 186D1) | 1 |
