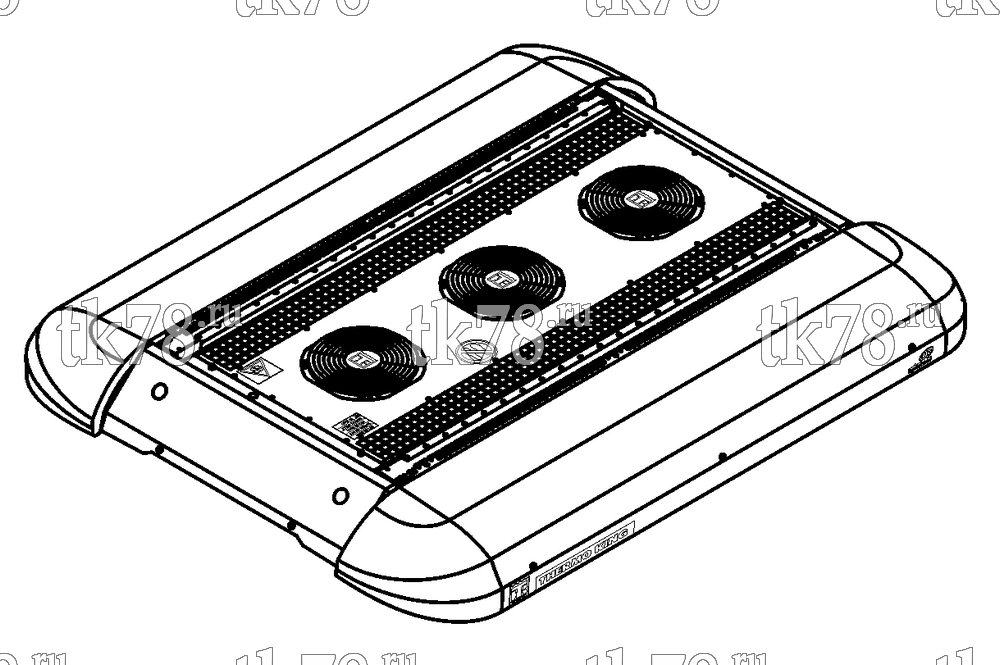

Установкa Thermo King ATHENIA MKII S805 схема ATHENIA MKII S805 REFERENCE SHEET – 16U28
Обновление от: 6/24/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 901771 | ATHENIA MKII S805 N 1000 0% FA | 05/11 | ||
| 901772 | ATHENIA MKII S805 N 1000 100% FA | 05/11 | ||
| 901773 | ATHENIA MKII S805 N 1004 0% FA | 05/11 | ||
| 901774 | ATHENIA MKII S805 N 1004 100 % FA | 05/11 | ||
| 901775 | ATHENIA MKII S805 W 1000 0% FA | 05/11 | ||
| 901776 | ATHENIA MKII S805 W 1000 100% FA | 05/11 | ||
| 901777 | ATHENIA MKII S805 W 1004 0% FA | 05/11 | ||
| 901778 | ATHENIA MKII S805 W 1004 100% FA | 05/11 | ||
| 013194 | Unit - ATHENIA MKII S805 N 1000 0% FA | 05/11 | ||
| 013195 | Unit - ATHENIA MKII S805 N 1000 100% FA | 05/11 | ||
| 013196 | Unit - ATHENIA MKII S805 N 1004 0% FA | 05/11 | ||
| 013197 | Unit - ATHENIA MKII S805 N 1004 100% FA | 05/11 | ||
| 013198 | Unit - ATHENIA MKII S805 W 1000 0% FA | 05/11 | ||
| 013199 | Unit - ATHENIA MKII S805 W 1000 100% FA | 05/11 | ||
| 013200 | Unit - ATHENIA MKII S805 W 1004 0% FA | 05/11 | ||
| 013201 | Unit - ATHENIA MKII S805 W 1004 100% FA | 05/11 | ||
| 013223 | Option - Electric ATHENIA MKII 3 Fans CAN | 05/11 | ||
| 013228 | Option - Panel 3 Fans Narrow | 05/11 | ||
| 013229 | Option - Panel 3 Fans Wide | 05/11 | ||
| 013240 | Kit - Bracket w/ Nuts | 05/11 | ||
| 013241 | Kit - Bracket w/o Nuts | 05/11 | ||
| 013242 | Option - Blower | 05/11 | ||
| 700129 | Kit - Water Valve 2-way Servomotor | 05/11 | ||
| 700130 | Kit - Water Valve 3-way Servomotor | 05/11 | ||
| 700178 | Kit - Grille Return Air - Black | 05/11 | ||
| 700257 | Kit - T-hose Fitting | 05/11 | ||
| 700470 | Kit - Compressor S616 No Clutch | 05/11 | ||
| 700474 | Kit - Adapters Compressor S616 #16, #20 | 05/11 | ||
| 700544 | Kit - Temperature Sensor for ClimaAIRE | 05/11 | ||
| 700574 | Kit - Compressor S391 - HPC, R134a, Pulley 2B/2A | 05/11 | ||
| 701095 | Kit - Bolts Lifting | 05/11 | ||
| 701135 | Kit - Compressor X430 2B - 8.03 dia | 05/11 | ||
| 701418 | Kit - Grille Return Air - Grey | 05/11 | ||
| 701823 | Kit - ClimaAIRE I D CAN, 9 M | 05/11 | ||
| 701824 | Kit - ClimaAIRE I D CAN, 18 M | 05/11 | ||
| 701825 | Kit - Harness Power | 05/11 | ||
| 701826 | Kit - Harness Compressor, 8 M | 05/11 | ||
| 701827 | Kit - Harness Compressor, 14 M | 05/11 | ||
| 701830 | Kit - CAN Terminator | 05/11 | ||
| 701831 | Kit - Harness Excitation CANAIRE, 14 M | 05/11 | ||
| 701843 | Kit - Harness Compressor, 20 M | 05/11 | ||
| 701844 | Kit - Harness CAN, 9 M | 05/11 | ||
| 701845 | Kit - Harness CAN, 18 M | 05/11 | ||
| 701846 | Kit - Floor Module Harness, 2 M | 05/11 | ||
| 701847 | Kit - Harness Forced Air, 2 M | 05/11 | ||
| 701848 | Kit - Harness Extension Forced Air, 10 M | 05/11 | ||
| 701849 | Kit - Harness Extension Forced Air, 20 M | 05/11 | ||
| 701850 | Kit - Floor Module Harness, 5 M | 05/11 | ||
| 701851 | Kit - Harness Forced Air Blower, 5 M | 05/11 | ||
| 701857 | Kit - Harness Excitation CAN, 20 M | 05/11 | ||
| 701869 | Kit - Harness Floor - Pump, 7 M | 05/11 | ||
| 701870 | Kit - Harness Floor - Preheater, 7 M | 05/11 | ||
| 702195 | Kit - Compressor Bock FKX40/560K Clutch LA16.0151Y | 05/11 | ||
| 702196 | Kit - Compressor Bock FKX40/560K Clutch LA16.0205Y | 05/11 | ||
| 702197 | Kit - Compressor Bock FKX40/560K Clutch LA16.0228Y | 05/11 | ||
| 702198 | Kit - Compressor Bock FKX40/655K Clutch LA16.0151Y | 05/11 | ||
| 702199 | Kit - Compressor Bock FKX40/655K Clutch LA16.0205Y | 05/11 | ||
| 702200 | Kit - Compressor Bock FKX40/655K Clutch LA16.0228Y | 05/11 | ||
| 702261 | Kit - Fittings Refrigerant Flange (#20, #16 - Suct 0 deg/Disch 45 deg) | 05/11 | ||
| 702262 | Kit - Fittings Refrigerant Flange (#20, #16 - Suct 45 deg/Disch 0 deg) | 05/11 | ||
| 702291 | Kit - Compressor X430 w/o Pulley | 05/11 | ||
| 702423 | Kit - Crate Returnable - Narrow | 05/11 | ||
| 702424 | Kit - Crate Returnable - Wide | 05/11 | ||
| 702426 | Kit - Grille Return Air Complete ATHENIA | 05/11 | ||
| 702427 | Kit - Grille Return Air Complete ATHENIA | 05/11 | ||
| 715245 | Kit - Muffler Compressor | 05/11 | ||
| 718220 | Kit - Compressor X430 2B/2A 9" 24 V" | 05/11 | ||
| 719305 | Kit - Alternator ClimaAIRE, 24 V Excitation | 05/11 | ||
| 719306 | Kit - Alternator ClimaAIRE, 12 V Excitation | 05/11 | ||
| 720171 | Kit - Muffler without Hose | 05/11 | ||
| 720208 | Kit - Fitting Compressor X430 Side (Suct 0 deg/Disch 0 deg) | 05/11 | ||
| 720209 | Kit - Fitting Compressor X430 Side (Suct 45 deg/Disch 45deg) | 05/11 | ||
| 720210 | Kit - Fitting Compressor X430 Side (Suct 90 deg/Disch 90 deg) | 05/11 | ||
| 720211 | Kit - Fitting Refrigerant Unit Side (Suct 0 deg/Disch 0 deg) | 05/11 | ||
| 720212 | Kit - Fitting Refrigerant Unit Side (Suct 90 deg/Disch 90 deg) | 05/11 | ||
| 720213 | Kit - Fitting Refrigerant Unit Side (Suct 45 deg/Disch 45 deg) | 05/11 | ||
| 720214 | Kit - Fitting Refrigerant Unit Side (Suct 90 deg/Disch 0 deg) | 05/11 | ||
| 720215 | Kit - Hose Refrigerant (#16, #20, 1 M - w/o Fittings) | 05/11 | ||
| 720216 | Kit - Hose Refrigerant (#16, #20, 6 M - w/o Fittings) | 05/11 | ||
| 720217 | Kit - Hose Refrigerant (#16, #20, 7 M - w/o Fittings) | 05/11 | ||
| 720218 | Kit - Hose Refrigerant (#16, #20, 8 M - w/o Fittings) | 05/11 | ||
| 720219 | Kit - Hose Refrigerant (#16, #20, 9 M - w/o Fittings) | 05/11 | ||
| 720220 | Kit - Hose Refrigerant (#16, #20 ,10 M - w/o Fittings) | 05/11 | ||
| 720221 | Kit - Hose Refrigerant (#16, #20, 12 M - w/o Fittings) | 05/11 | ||
| 720222 | Kit - Hose Refrigerant (#16, #20, 14 M - w/o Fittings) | 05/11 | ||
| 720223 | Kit - Hose Refrigerant (#16, #20, 16 M - w/o Fittings) | 05/11 | ||
| 720224 | Kit - Hose Refrigerant (#16, #20, 18 M - w/o Fittings) | 05/11 | ||
| 720365 | Kit - Fitting Refrigeration Unit Side (Suct 0 deg/Disch 90 deg) | 05/11 | ||
| 720366 | Kit - Fitting Refrigeration Unit Side (Suct 90 deg/Disch 45 deg) | 05/11 | ||
| 720367 | Kit - Fitting Refrigeration Unit Side (Suct 45 deg/Disch 90 deg) | 05/11 | ||
| 720395 | Kit - Fitting - Tube Installation | 05/11 | ||
| 720587 | Kit - Compressor X430 HPC, 24 V, Pulley 2B/2A, 8.03 | 05/11 | ||
| 720590 | Kit - Compressor X430 HPC, 24 V, 12-K -W 2.28 | 05/11 | ||
| 720702 | Kit - Compressor S616 | 05/11 | ||
| 800339 | Kit - Plate of Decal Assy - R134a | 05/11 | ||
| 800355 | Kit - Drain Water Hose, 20 M | 05/11 | ||
| 800356 | Kit - Drain Water Hose, 40 M | 05/11 | ||
| 880110 | Kit - Ports for X430 Compressor | 05/11 | ||
| 880153 | Kit - Adapters Compressor (#20, #24) | 05/11 | ||
| 880269 | Kit - Installation | 05/11 | ||
| 719842 | Kit - Harness CP - Water Valve, 5 M | 05/11 | ||
| 720084 | Kit - Harness CP - Water Valve, 1 M | 05/11 | ||
| 719004 | Kit - Water Boost Pump | 05/11 | ||
| 719005 | Kit - Water Boost Pump | 05/11 | ||
| 701833 | Kit - Harness Unit - Boost Pump CAN, 14 M | 05/11 | ||
| 701828 | Kit - Harness Water Valve, 10 M | 05/11 | ||
| 701829 | Kit - Harness Water Valve, 20 M | 05/11 | ||
| 700009 | Kit - Harness CP - Water Valve, 6 M | 05/11 |
