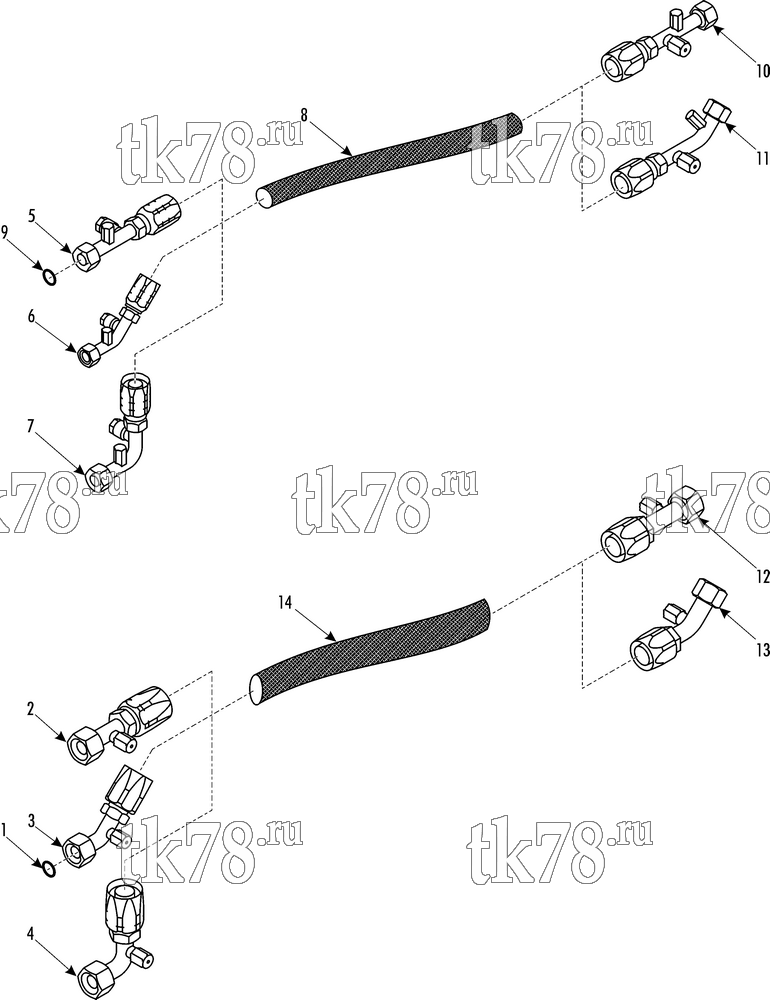

Установкa Thermo King ATHENIA MKII S805 SPLIT схема KIT HOSE & FITTINGS TM31 COMPRESSOR – 265D7
Обновление от: 3/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-2847 | O-RING #16 | A/R | |
| 2 | 61-5536 | FITTING - straight (#12 ftg, #16 hose) | 1 | |
| 3 | 55-9598 | FITTING - 45 degree (#12 ftg, #16 hose) | 1 | |
| 4 | 61-5538 | FITTING - 90 degree (#12 ftg, #16 hose) | 1 | |
| 5 | 61-5537 | FITTING - straight (#10 ftg, #12 hose) | 1 | |
| 6 | 55-9599 | FITTING - 45 degree (#10 ftg, #12 hose) | 1 | |
| 7 | 61-5539 | FITTING - 90 degree (#10 ftg, #12 hose) | 1 | |
| 8 | 61-5213 | HOSE #12, R134a | A/R | |
| 9 | 33-2848 | O-RING #12 | A/R | |
| 10 | 61-5546 | FITTING - straight (#10 ftg, #12 hose) | 1 | |
| 11 | 61-5551 | FITTING - 45 degree (#10 ftg, #12 hose) | 1 | |
| 12 | 61-5543 | FITTING - straight (#12 ftg, #16 hose) | 1 | |
| 13 | 61-5545 | FITTING - 45 degree (#12 ftg, #16 hose) | 1 | |
| 14 | 61-4769 | HOSE #16, R134a | A/R |
