Установкa Thermo King ATHENIA MKII S805 SPLIT схема ELECTRICAL COMPONENTS – 265D4

Обновление от: 3/25/13

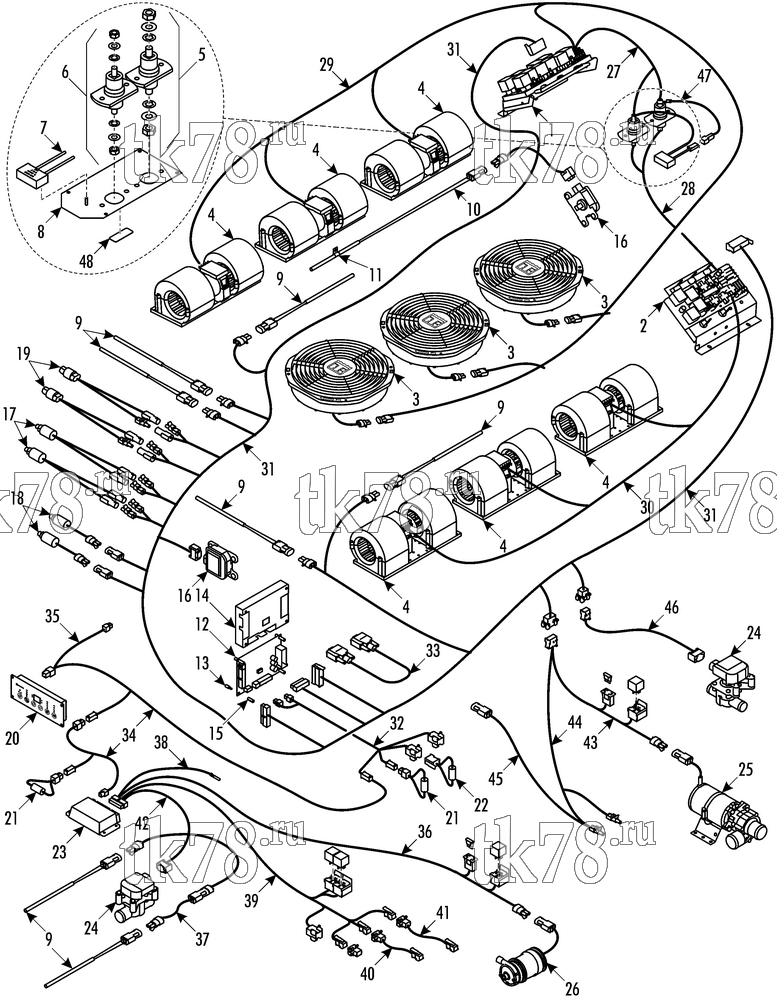

Каталог запчастей для Thermo King ATHENIA MKII S805 SPLIT ELECTRICAL COMPONENTS
№TK #ОписаниеКол-во
Цена
1NSSCONTROLLER - left (see 252E6)1
2NSSCONTROLLER - right (see 252E7)1
378-1414FAN - assembly (24VDC)3
478-1297BLOWER (see 252E5)6
78-1679BLOWER (see 265D5)6
541-9743CONNECTOR - wire, negative1
55-3066LOCKWASHER2
55-0448FLATWASHER2
55-9189NUT2
641-9742CONNECTOR - wire, positive1
55-3238LOCKWASHER2
55-8955FLATWASHER2
305-1653NUT2
55-6994SCREW - connectors4
55-7075FLATWASHER8
55-7042NUT4
741-6098SUPRESSOR - voltage1
51-0888STUD - self clinching1
55-7830FLATWASHER1
55-9057LOCKWASHER1
55-7749NUT1
892-9087PLATE - electric connection1
55-5130RIVET - plate4
941-4157SENSOR - temperature7
1041-4335SENSOR - temperature1
1156-0546CLAMP1
55-7169SCREW - clamp1
55-7089FLATWASHER2
55-7034NUT - hexstop1
1241-8140MODULE - main, CAN1
51-1848STUD - module4
55-8410FLATWASHER4
1351-1849SPACER4
1492-7576COVER - module1
1551-1850SPACER4
55-9195SCREW - cover4
55-9057LOCKWASHER4
55-8410FLATWASHER4
1641-3255SERVOMOTOR2
1741-4146SWITCH - high pressure cutout2
1841-5220SWITCH - condenser pressure2
1941-4147SWITCH - low pressure cutout2
2041-8403ClimaAIRE I D1
2141-9798TERMINATOR - CAN1
2241-8787TERMINATOR - CAN2
2341-8142MODULE - floor, CAN1
55-2359FLATWASHER4
2441-6592VALVE - WATER (2 way)1
41-5649VALVE - WATER (3 way)1
2512-0822PUMP - boost (see 186D1)1
2612-0622PUMP - boost (see 186D1)1
2741-9948HARNESS - supply, left1
2841-9803HARNESS - supply, right1
2941-9801HARNESS - control panel left (for connectors see 265D6)1
44-5835CONNECTOR - shroud (black, 2 pin)3
3041-9802HARNESS - control panel right (for connectors see 265D6)1
3142-1023HARNESS - control (for connectors 265D6)1
44-5835CONNECTOR - shroud (black, 2 pin)2
44-7327CONNECTOR - tower (1 pin)6
44-7330CONNECTOR - shroud (1 pin)2
44-5838CONNECTOR - tower (black, 2 pin)6
41-3856CONNECTOR - female (18 pin)3
41-0650CONNECTOR - in-line (18 pin, male)1
41-0656CONNECTOR - in-line (24 pin, male)1
41-3288CONNECTOR - female (6 pin)2
41-4054CONNECTOR - male (10 pin)1
41-4055CONNECTOR - male (6 pin)1
3241-9799HARNESS - can interface (for connectors see 265D6)1
41-0654CONNECTOR - in-line (4 pin, male)2
41-8221CONNECTOR - in-line (4 pin, female)2
41-4949CONNECTOR - male (4 pin)2
41-8221CONNECTOR - in-line (4 pin, female)1
3341-5750CABLE - connecting1
3441-9952HARNESS - CAN, CA I D x unit (3m, for connectors see 265D6)2
41-8791HARNESS - CAN, CA I D x unit (9m, for connectors see 265D6)2
41-8792HARNESS - CAN, CA I D x unit (18m, for connectors see 265D6)2
41-8221CONNECTOR - in-line (4 pin, female)1
41-0654CONNECTOR - in-line (4 pin, male)2
3541-8782HARNESS - power (for connectors see 265D6)1
41-0654CONNECTOR - in-line (4 pin, male)1
3641-8800HARNESS - floor module x boost pump (7m, for connectors see 265D6)1
44-5537SOCKET - relay1
41-5657RELAY1
41-4965HOLDER - fuse1
44-9344FUSE (15 amp, 32 V)1
 10-44-9344 Предохранитель 15 ампер 10 шт 1 860 ₽
44-5838CONNECTOR - tower (black, 2 pin)1
3741-5228HARNESS - extension temperature sensor (9m, for connectors see 265D6)1
44-5838CONNECTOR - tower (black, 2 pin)1
44-5835CONNECTOR - shroud (black, 2 pin)1
3841-8801HARNESS - floor module x preheater (7m)1
3941-8794HARNESS - forced air blower (2m, for connectors see 265D6)1
41-8798HARNESS - forced air blower (5m, for connectors see 265D6)1
44-5537SOCKET - relay2
41-5657RELAY2
41-2769CONNECTOR - female (4 pin)3
41-4949CONNECTOR - male (4 pin)1
4041-8795HARNESS - extension forced air blower (10m, for connectors see 265D6)1
41-2769CONNECTOR - female (4 pin)1
41-4949CONNECTOR - male (4 pin)1
4141-8796HARNESS - extension forced air blower (20m, for connectors see 265D6)1
41-2769CONNECTOR - female (4 pin)1
41-4949CONNECTOR - male (4 pin)1
4241-8793HARNESS - floor water valve (2m, for connectors see 265D6)1
41-8797HARNESS - floor water valve (5m, for connectors see 265D6)1
41-3288CONNECTOR - female (6 pin)1
44-5838CONNECTOR - tower (black, 2 pin)2
41-0650CONNECTOR - in-line (18 pin, male)1
4341-8789HARNESS - unit x boost pump (14m, for connectors see 265D6)1
44-5537SOCKET - relay1
41-5657RELAY1
41-4965HOLDER - fuse1
44-9344FUSE (15 amp, 32 V)1
 10-44-9344 Предохранитель 15 ампер 10 шт 1 860 ₽
44-5838CONNECTOR - tower (black, 2 pin)1
4442-1024HARNESS - compressor (12m, for connectors see 265D6)1
41-3855CONNECTOR - female (10 pin)1
44-7327CONNECTOR - tower (1 pin)2
4541-8788HARNESS - excitation (14m, for connectors see 265D6)1
41-8799HARNESS - excitation (20m, for connectors see 265D6)1
41-3855CONNECTOR - female (10 pin)1
4641-5085HARNESS - control panel x water valve (1m, for connectors see 265D6)1
41-5084HARNESS - control panel x water valve (5m, for connectors see 265D6)1
41-7347HARNESS - control panel x water valve (6m, for connectors see 265D6)1
41-8785HARNESS - control panel x water valve (10m, for connectors see 265D6)1
41-8786HARNESS - control panel x water valve (20m, for connectors see 265D6)1
41-3288CONNECTOR - female (6 pin)1
41-2767CONNECTOR - female (6 pin)1
4742-0259HARNESS - supressor connection (0.127m, for connectors see 265D6)1
44-6264CONNECTOR - male (1 pin)1
44-2786TERMINAL - ring (3/8 blue, 16-14 ga)1
4891-7509NAMEPLATE - Positive/Negative1
