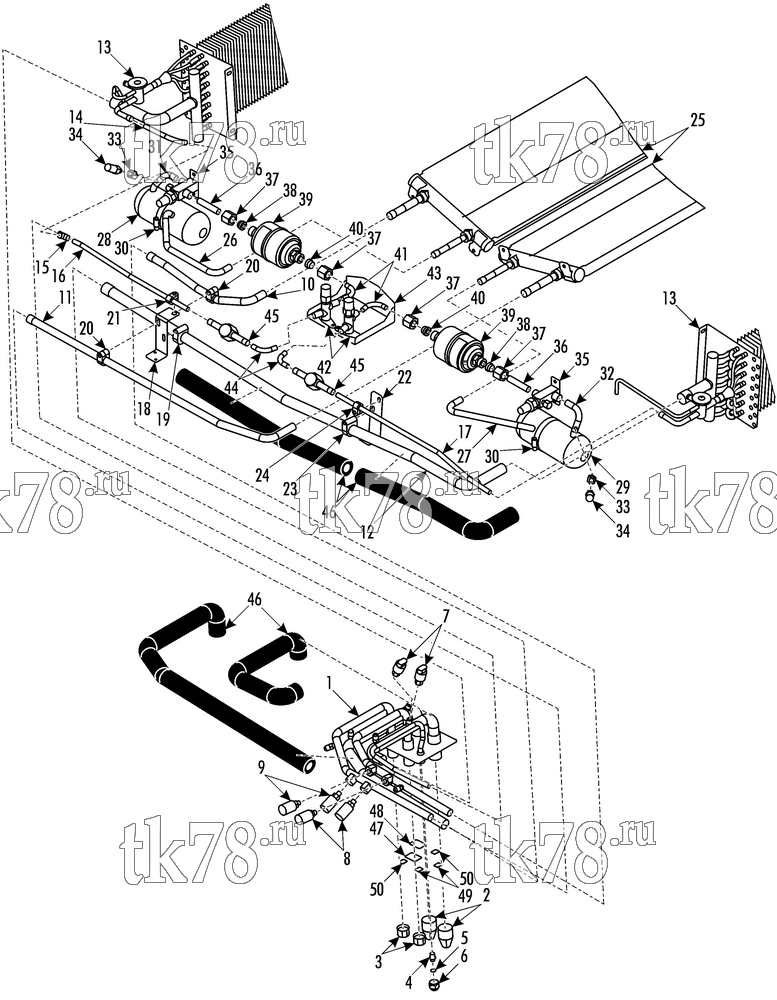

Установкa Thermo King ATHENIA MKII S805 SPLIT схема TUBE COOLING – 265C9
Обновление от: 3/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | ADAPTER - assy (see 265D1) | 1 | |
| 55-5130 | RIVET - adapter | 4 | ||
| 2 | 92-3542 | CAP - plastic | 2 | |
| 3 | 61-2552 | CAP - manifold | 2 | |
| 4 | 92-0120 | INSERT - plug | 1 | |
| 5 | 33-1461 | O-RING | 1 | |
| 6 | 92-0121 | NUT | 1 | |
| 7 | 41-4147 | SWITCH - low pressure cutout | 2 | |
| 8 | 41-5220 | SWITCH - condenser pressure | 2 | |
| 9 | 41-4146 | SWITCH - high pressure cutout | 2 | |
| 10 | 61-6438 | TUBE (narrow version) | 1 | |
| 61-6439 | TUBE (wide version) | 1 | ||
| 11 | 61-6440 | TUBE (narrow version) | 1 | |
| 61-6441 | TUBE (wide version) | 1 | ||
| 12 | 61-6442 | TUBE (narrow version) | 1 | |
| 61-6443 | TUBE (wide version) | 1 | ||
| 13 | NSS | COIL - evaporator, ATHENIA MKII S805 Split (see 265D2) | 1 | |
| NSS | COIL - evaporator, ATHENIA MKII S960 Split (see 265E1) | 1 | ||
| NSS | COIL - evaporator/heater, ATHENIA MKII S805 Split (265D3) | 1 | ||
| NSS | COIL - evaporator/heater, ATHENIA MKII S960 Split (see 265E2) | 1 | ||
| 14 | 61-6444 | TUBE | 1 | |
| 15 | 55-3251 | TEE (1/2 x 3/8 x 3/8) | 1 | |
| 16 | 61-6445 | TUBE (narrow version) | 1 | |
| 61-6446 | TUBE (wide version) | 1 | ||
| 17 | 61-6447 | TUBE (narrow version) | 1 | |
| 61-6448 | TUBE (wide version) | 1 | ||
| 18 | 93-869 | BRACKET - tube | 1 | |
| 55-5130 | RIVET - brackets | 2 | ||
| 19 | 55-7013 | CLAMP - tube | 1 | |
| 55-8993 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | LOCKNUT | 1 | ||
| 20 | 91-0758 | CLAMP - tube | 2 | |
| 55-7029 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | LOCKNUT | 1 | ||
| 21 | 55-6388 | CLAMP - tube | 1 | |
| 55-8464 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 22 | 93-870 | BRACKET - tube | 1 | |
| 55-5130 | RIVET - brackets | 2 | ||
| 23 | 55-7013 | CLAMP - tube | 1 | |
| 55-8993 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | LOCKNUT | 1 | ||
| 24 | 55-6388 | CLAMP - tube | 1 | |
| 55-8316 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | LOCKNUT | 1 | ||
| 25 | 67-2626 | CONDENSER (see 252D5) | 2 | |
| 26 | 61-6449 | TUBE | 1 | |
| 27 | 61-6450 | TUBE | 1 | |
| 28 | 67-2827 | TANK - receiver | 1 | |
| 29 | 67-2828 | TANK - receiver | 1 | |
| 30 | 55-2688 | CLAMP - tank | 2 | |
| 31 | 61-6451 | TUBE | 1 | |
| 32 | 61-5653 | TUBE | 1 | |
| 33 | 55-3295 | FITTING - saddle | 2 | |
| 34 | 66-7392 | VALVE - relief | 2 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 35 | 66-4694 | VALVE - shut-off | 2 | |
| 55-6994 | SCREW - valve | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 36 | 61-5654 | TUBE | 2 | |
| 37 | 55-6838 | NUT - shoulder | 4 | |
| 38 | 55-6837 | SHOULDER | 2 | |
| 39 | 66-8344 | FILTER - dehydrator | 2 | |
| 40 | 61-6452 | SHOULDER | 2 | |
| 41 | 61-6453 | TUBE | 2 | |
| 42 | 66-1867 | VALVE - shut-off | 2 | |
| 55-7340 | SCREW - valve | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7089 | FLATWASHER | 8 | ||
| 55-7367 | NUT | 4 | ||
| 43 | 93-872 | BRACKET - valve | 1 | |
| 55-5130 | RIVET - bracket | 3 | ||
| 44 | 61-6454 | TUBE | 2 | |
| 45 | 66-1296 | INDICATOR - liquid (sight glass) | 2 | |
| 46 | 91-3542 | TUBE - rubber | 1 | |
| 47 | 91-7510 | NAMEPLATE - gas in | 1 | |
| 48 | 91-8536 | NAMEPLATE - vapour out | 1 | |
| 49 | 92-1488 | NAMEPLATE - terminal #1 | 2 | |
| 50 | 92-1489 | NAMEPLATE - terminal #2 | 2 |
