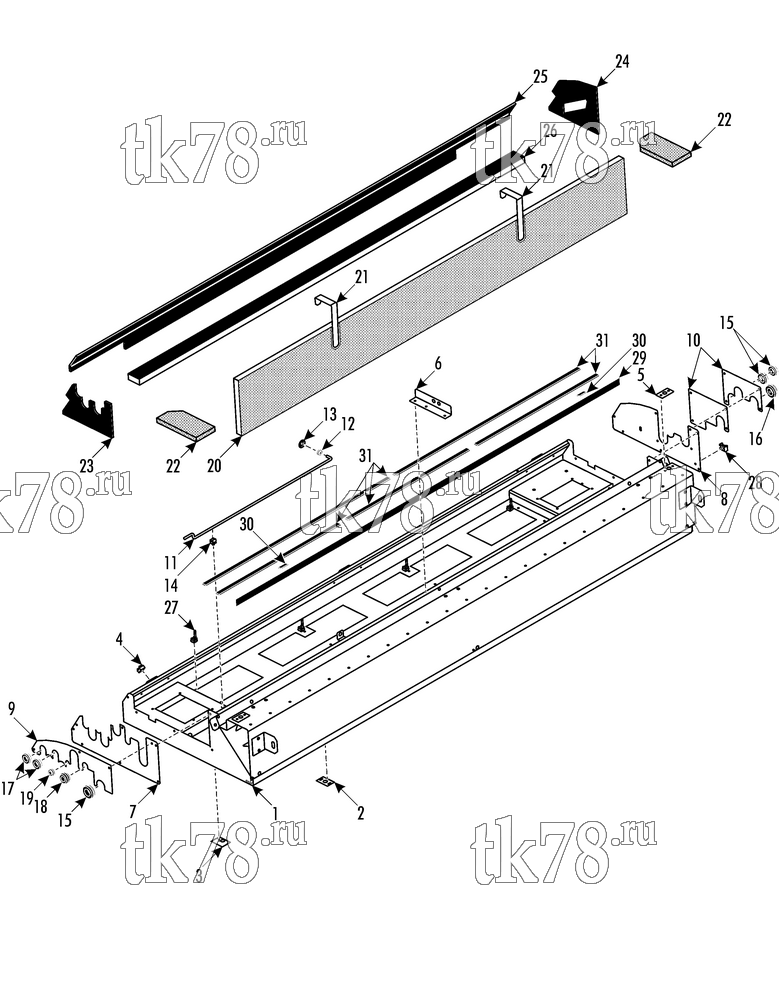

Установкa Thermo King ATHENIA MKII S805 SPLIT схема EVAPORATOR BASE 2 – 265C8
Обновление от: 3/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9226 | BASE - evaporator (0 % fresh air, split version) | 1 | |
| 98-9227 | BASE - evaporator (100 % fresh air, split version) | 1 | ||
| 51-1930 | SCREW - base | 2 | ||
| 51-0953 | FLATWASHER | 2 | ||
| 2 | 92-9056 | SPACER | 5 | |
| 3 | 92-9057 | SPACER | 2 | |
| 51-0118 | NUT - captive (optional) | 7 | ||
| 4 | 55-9194 | NUT - captive | 3 | |
| 5 | 92-4030 | BRACKET - lifting eye | 2 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 6 | 92-9058 | BRACKET - middle | 1 | |
| 55-5130 | RIVET - bracket | 3 | ||
| 7 | 93-0866 | BLADE | 1 | |
| 8 | 92-9060 | BLADE | 1 | |
| 9 | 93-0867 | PLATE - cover | 1 | |
| 10 | 92-4002 | PLATE - cover (unit w/o heater) | 1 | |
| 92-4003 | PLATE - cover (unit w/ heater) | 1 | ||
| 55-5130 | RIVET - plates | A/R | ||
| 11 | 92-8933 | SUPPORT - cover | 1 | |
| 12 | 83-0258 | GROMMET (0.250 id) | 1 | |
| 13 | 51-0809 | LOCKWASHER | 1 | |
| 14 | 51-1669 | CLIP - plastic | 1 | |
| 15 | 33-0452 | GROMMET (0.875 id, unit w/o heater) | 1 | |
| 33-0452 | GROMMET (0.875 id, unit w heater) | 3 | ||
| 16 | 33-0489 | GROMMET (1.250 id) | 1 | |
| 17 | 33-0367 | GROMMET (0.625 id) | 2 | |
| 18 | 33-0428 | GROMMET (0.500 id) | 1 | |
| 19 | 33-0451 | GROMMET (0.375 id) | 1 | |
| 20 | 92-5663 | FILTER - evaporator | 1 | |
| 21 | 92-3540 | CLIP | 2 | |
| 22 | 92-4007 | FILTER - evaporator | 2 | |
| 23 | 93-0868 | INSULATION | 1 | |
| 24 | 92-9072 | INSULATION | 1 | |
| 25 | 92-9067 | INSULATION | 1 | |
| 26 | 92-9069 | INSULATION (unit w/o heater) | 1 | |
| 27 | 51-1631 | STRAP - cable | 5 | |
| 28 | 99-3281 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 29 | 99-6968 | STRIP - neoprene | A/R | |
| 30 | 99-1908 | STRIP - neoprene | A/R | |
| 31 | 99-2996 | STRIP - neoprene | A/R |
