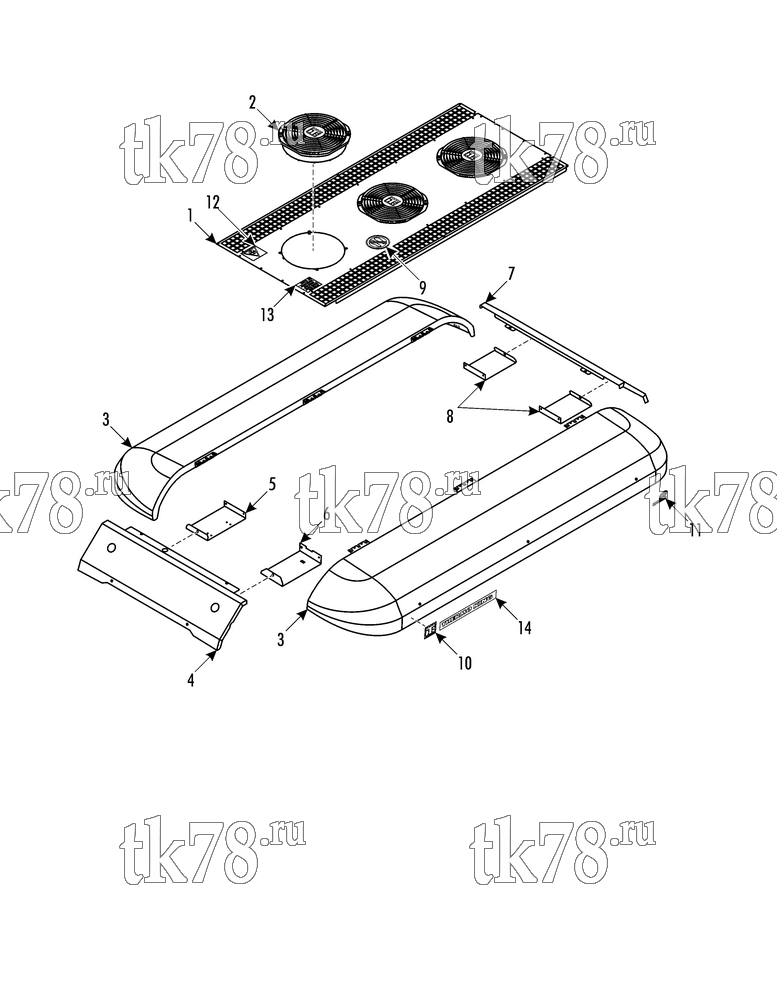

Установкa Thermo King ATHENIA MKII S805 SPLIT схема COVER – 252D6
Обновление от: 3/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8693 | COVER - condenser (narrow unit) | 1 | |
| 98-8703 | COVER - condenser (wide unit) | 1 | ||
| 98-9217 | COVER - condenser (narrow unit, bad road version) | 1 | ||
| 98-9218 | COVER - condenser (wide unit, bad road version) | 1 | ||
| 55-7373 | NUT - captive | 12 | ||
| 2 | 78-1414 | FAN - assembly | 3 | |
| 78-1416 | GUARD - fan | 1 | ||
| 51-1243 | SCREW - fan | 1 | ||
| 55-7372 | SCREW - fan | 12 | ||
| 55-9190 | WASHER - spring | 12 | ||
| 3 | 98-9219 | COVER - side, complete | 2 | |
| 92-9052 | INSULATION | 1 | ||
| 92-9810 | PLATE - nut | 3 | ||
| 51-1930 | SCREW - cover | 3 | ||
| 91-7098 | HINGE - cover | 3 | ||
| 55-7089 | FLATWASHER | 15 | ||
| 55-7171 | LOCKWASHER | 9 | ||
| 55-7036 | SCREW - hinge to cover | 9 | ||
| 55-7404 | LOCKWASHER | 6 | ||
| 55-7340 | SCREW - hinge to frame | 6 | ||
| 4 | 98-9220 | SPOILER - complete, front, narrow, split version | 1 | |
| 98-9221 | SPOILER - complete, front, wide, split version | 1 | ||
| 98-9222 | SPOILER - complete, front, narrow | 1 | ||
| 98-9223 | SPOILER - complete, front, wide | 1 | ||
| 5 | 92-9053 | BRACKET | 1 | |
| 6 | 92-9055 | BRACKET | 1 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 7 | 98-9224 | SPOILER - complete, rear, narrow | 1 | |
| 98-9225 | SPOILER - complete, rear, wide | 1 | ||
| 55-7172 | SCREW - spoiler (16 mm Length) | 2 | ||
| 55-6994 | SCREW - spoiler (20 mm Length) | 2 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 56-2086 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 55-5130 | RIVET - bracket | 4 | ||
| 8 | 92-9054 | BRACKET | 2 | |
| 9 | 92-3767 | NAMEPLATE - No Step | 1 | |
| 10 | 99-2789 | NAMEPLATE - TK logo | 2 | |
| 11 | 92-1307 | NAMEPLATE - IR (black letters) | 2 | |
| 12 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 13 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 14 | 91-1154 | NAMEPLATE - Thermo King | 2 |
