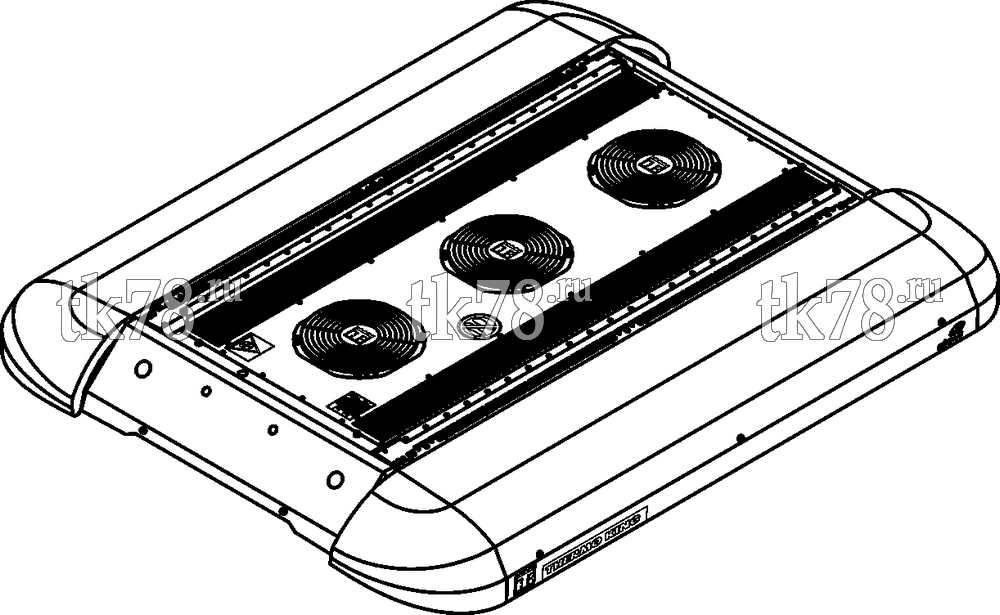

Установкa Thermo King ATHENIA MKII S805 SPLIT схема ATHENIA MKII S805 SPLIT REFERENCE SHEET – 17U98
Обновление от: 3/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 902328 | ATHENIA MKII S805 N Split 1000, 0% Fresh Air | 03/13 | ||
| 902329 | ATHENIA MKII S805 N Split 1004, 0% Fresh Air | 03/13 | ||
| 902331 | ATHENIA MKII S805 N Split 1000, 100% Fresh Air | 03/13 | ||
| 902332 | ATHENIA MKII S805 N Split 1004, 100% Fresh Air | 03/13 | ||
| 902333 | ATHENIA MKII S805 W Split 1000, 0% Fresh Air | 03/13 | ||
| 902334 | ATHENIA MKII S805 W Split 1004, 0% Fresh Air | 03/13 | ||
| 902335 | ATHENIA MKII S805 W Split 1000, 100% Fresh Air | 03/13 | ||
| 902336 | ATHENIA MKII S805 W Split 1004, 100% Fresh Air | 03/13 | ||
| 013653 | Top Assembly - ATHENIA MKII S805 N Split 1000 0% Fresh Air | 03/13 | ||
| 013654 | Top Assembly - ATHENIA MKII S805 N Split 1000 100% Fresh Air | 03/13 | ||
| 013655 | Top Assembly - ATHENIA MKII S805 N Split 1004 0% Fresh Air | 03/13 | ||
| 013656 | Top Assembly - ATHENIA MKII S805 N Split 1004 100% Fresh Air | 03/13 | ||
| 013657 | Top Assembly - ATHENIA MKII S805 W Split 1000 0% Fresh Air | 03/13 | ||
| 013658 | Top Assembly - ATHENIA MKII S805 W Split 1000 100% Fresh Air | 03/13 | ||
| 013659 | Top Assembly - ATHENIA MKII S805 W Split 1004 0% Fresh Air | 03/13 | ||
| 013660 | Top Assembly - ATHENIA MKII S805 W Split 1004 100% Fresh Air | 03/13 | ||
| 013228 | Option - Panel 3-Fans Narrow | 03/13 | ||
| 013229 | Option - Panel 3-Fans Wide | 03/13 | ||
| 013240 | Kit - Brackets w/ Nuts | 03/13 | ||
| 013241 | Kit - Bracket w/o Nuts | 03/13 | ||
| 013242 | Option - Blower | 03/13 | ||
| 013396 | Option - Panel 3-Fans N, Bad Road | 03/13 | ||
| 013397 | Option - Panel 3-Fans W, Bad Road | 03/13 | ||
| 013442 | Option - Blower Brushless | 03/13 | ||
| 013661 | Option - Electric ATHENIA MKII 3-Fans CAN Split | 03/13 | ||
| 700009 | Kit - Harness CP - Water Valve, 6m | 03/13 | ||
| 700129 | Kit - Water Valve 2-Way Servomotor | 03/13 | ||
| 700130 | Kit - Water Valve 3-Way Servomotor | 03/13 | ||
| 700256 | Kit - T-Hose Fitting | 03/13 | ||
| 700296 | Kit - Floor Temperature Sensor, ClimaAIRE II, 9m | 03/13 | ||
| 700544 | Kit - Temperature Sensor for ClimaAIRE | 03/13 | ||
| 701095 | Kit - Bolts Lifting | 03/13 | ||
| 701823 | Kit - ClimaAIRE I D CAN, 9m | 03/13 | ||
| 701824 | Kit - ClimaAIRE I D CAN, 18m | 03/13 | ||
| 701825 | Kit - Harness Power | 03/13 | ||
| 701828 | Kit - Harness Water Valve, 10m | 03/13 | ||
| 701829 | Kit - Harness Water Valve, 20m | 03/13 | ||
| 701830 | Kit - CAN Terminator | 03/13 | ||
| 701831 | Kit - Harness Excitation CANAIRE, 14m | 03/13 | ||
| 701833 | Kit - Harness Unit - Boost Pump CAN, 14m | 03/13 | ||
| 701844 | Kit - Harness CAN, 9m | 03/13 | ||
| 701845 | Kit - Harness CAN, 18m | 03/13 | ||
| 701846 | Kit - Floor Module Harness, 2m | 03/13 | ||
| 701847 | Kit - Harness Forced Air, 2m | 03/13 | ||
| 701848 | Kit - Harness Extension Forced Air, 10m | 03/13 | ||
| 701849 | Kit - Harness Extension Forced Air, 20m | 03/13 | ||
| 701850 | Kit - Floor Module Harness, 5m | 03/13 | ||
| 701851 | Kit - Harness Forced Air Blower, 5m | 03/13 | ||
| 701857 | Kit - Harness Excitation CAN, 20m | 03/13 | ||
| 701863 | Kit - Fitting Compressor TM31 Suct 45deg/Disch 45deg w/o Ports | 03/13 | ||
| 701864 | Kit - Fitting Compressor TM31 Suct 0deg/Disch 0deg w/o Ports | 03/13 | ||
| 701869 | Kit - Harness Floor - Pump, 7m | 03/13 | ||
| 701870 | Kit - Harness Floor - Preheater, 7m | 03/13 | ||
| 702207 | Kit - Harness Compressor Split, 12m | 03/13 | ||
| 702423 | Kit - Crate Returnable, Narrow | 03/13 | ||
| 702424 | Kit - Crate Returnable, Wide | 03/13 | ||
| 702426 | Kit - Grille Return Air Complete ATHENIA S800 - S1300 | 03/13 | ||
| 702427 | Kit - Grille Return Air Complete ATHENIA | 03/13 | ||
| 702488 | Kit - Crate Dry Wide ATHENIA S805/S960 | 03/13 | ||
| 702489 | Kit - Crate Dry Narrow ATHENIA S805/S960 | 03/13 | ||
| 702790 | Kit - ClimaAIRE I D CAN, 3m | 03/13 | ||
| 715717 | Kit - Manifold Compressor | 03/13 | ||
| 718121 | Kit - Manifold Compressor Horizontal | 03/13 | ||
| 718371 | Kit - Compressor TM16 2A 24Vdc | 03/13 | ||
| 718373 | Kit - Compressor TM16 POLY 24 | 03/13 | ||
| 718377 | Kit - Compressor TM31 2B 24Vdc | 03/13 | ||
| 718378 | Kit - Oil POE 8oz TM16 | 03/13 | ||
| 719004 | Kit - Boost Pump 24Vdc | 03/13 | ||
| 719005 | Kit - Pump Boost | 03/13 | ||
| 719161 | Kit - Fittings SR50 | 03/13 | ||
| 719162 | Kit - Fittings SR50 | 03/13 | ||
| 719163 | Kit - Fittings SR50 | 03/13 | ||
| 719222 | Kit - Compressor TM31 P 24 POE | 03/13 | ||
| 719305 | Kit - Alternator ClimaAIRE 24Vdc | 03/13 | ||
| 719306 | Kit - Alternator ClimaAIRE 12Vdc | 03/13 | ||
| 719690 | Kit - Fittings SR50 | 03/13 | ||
| 719691 | Kit - Fittings SR50 | 03/13 | ||
| 719692 | Kit - Fittings SR50 | 03/13 | ||
| 719693 | Kit - Hose SR50, 1m | 03/13 | ||
| 719694 | Kit - Hose SR50, 6m | 03/13 | ||
| 719695 | Kit - Hose SR50, 9m | 03/13 | ||
| 719696 | Kit - Hose SR50, 12m | 03/13 | ||
| 719697 | Kit - Hose SR50, 14m | 03/13 | ||
| 719698 | Kit - Hose SR50, 17m | 03/13 | ||
| 719718 | Kit - Compressor TM31 24Vdc POE | 03/13 | ||
| 719800 | Kit - Hose SR50, 13m | 03/13 | ||
| 719804 | Kit - Fittings SR50 | 03/13 | ||
| 719805 | Kit - Fittings SR50 | 03/13 | ||
| 719806 | Kit - Fittings SR50 | 03/13 | ||
| 719807 | Kit - Hose SR50, 15m | 03/13 | ||
| 719808 | Kit - Hose SR50, 16m | 03/13 | ||
| 719842 | Kit - Harness CP - Water Valve, 5m | 03/13 | ||
| 720084 | Kit - Harness CP - Water Valve, 1m | 03/13 | ||
| 720098 | Kit - Adapters | 03/13 | ||
| 720225 | Kit - Hose Refrigerant #12, #16, 1m, w/o Fittings | 03/13 | ||
| 720226 | Kit - Hose Refrigerant #12, #16, 6m, w/o Fittings | 03/13 | ||
| 720227 | Kit - Hose Refrigerant #12, #16, 7m, w/o Fittings | 03/13 | ||
| 720228 | Kit - Hose Refrigerant #12, #16, 8m, w/o Fittings | 03/13 | ||
| 720229 | Kit - Hose Refrigerant #12, #16, 9m, w/o Fittings | 03/13 | ||
| 720230 | Kit - Hose Refrigerant #12, #16, 10m, w/o Fittings | 03/13 | ||
| 720231 | Kit - Hose Refrigerant #12, #16, 12m, w/o Fittings | 03/13 | ||
| 720232 | Kit - Hose Refrigerant #12, #16, 14m, w/o Fittings | 03/13 | ||
| 720233 | Kit - Hose Refrigerant #12, #16, 16m, w/o Fittings | 03/13 | ||
| 720234 | Kit - Hose Refrigerant #12, #16, 18m, w/o Fittings | 03/13 | ||
| 720287 | Kit - Compressor TM21 1B 24Vdc POE | 03/13 | ||
| 720289 | Kit - Compressor TM21 2A 24Vdc POE | 03/13 | ||
| 720291 | Kit - Compressor TM21 8K 24Vdc POE | 03/13 | ||
| 720296 | Kit - Fittings | 03/13 | ||
| 720297 | Kit - Fittings | 03/13 | ||
| 720298 | Kit - Fittings | 03/13 | ||
| 720368 | Kit - Fitting Compressor TM31 Side (Suct 0 deg/Disch 0deg) | 03/13 | ||
| 720369 | Kit - Fitting Compressor TM31 Side (Suct 45deg/Disch 45deg) | 03/13 | ||
| 720370 | Kit - Fitting Compressor TM31 Side (Suct 90deg/Disch 90deg) | 03/13 | ||
| 800339 | Kit - Plate of Decal Assembly - R134a | 03/13 | ||
| 800355 | Kit - Drain Water Hose, 20m | 03/13 | ||
| 800356 | Kit - Drain Water Hose, 40m | 03/13 | ||
| 880269 | Kit - Installation | 03/13 |
