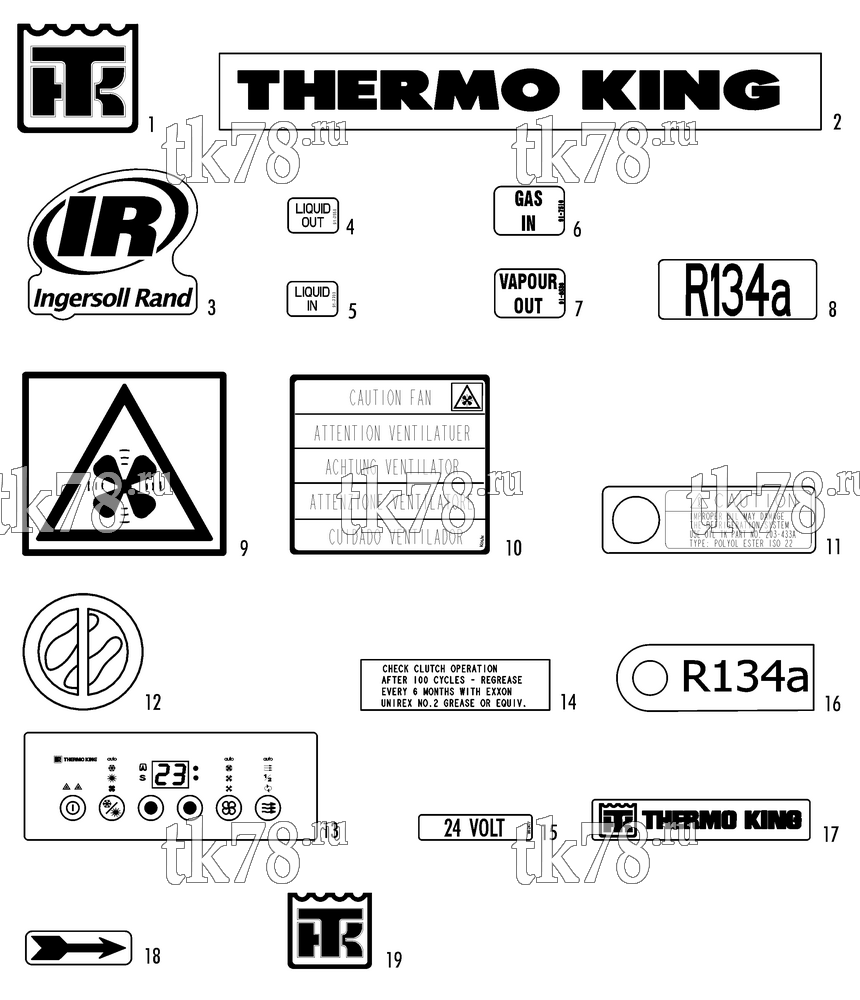

Установкa Thermo King ATHENIA MKII S700 схема NAMEPLATES – 253G0
Обновление от: 10/21/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-2789 | NAMEPLATE - TK logo | 2 | |
| 2 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 3 | 92-1307 | NAMEPLATE - IR logo | 2 | |
| 4 | 91-7550 | NAMEPLATE - Liquid Out | 1 | |
| 5 | 91-7703 | NAMEPLATE - Liquid In | 1 | |
| 6 | 91-7510 | NAMEPLATE - Gas In | 1 | |
| 7 | 91-8536 | NAMEPLATE - Vapor Out | 1 | |
| 8 | 91-5459 | NAMEPLATE - R134a | 2 | |
| 9 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 10 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 11 | 91-7938 | NAMEPLATE - Caution, Improper | 1 | |
| 12 | 92-3767 | NAMEPLATE - No Step | 1 | |
| 13 | 92-5627 | NAMEPLATE - ClimaAIRE I D | 1 | |
| 14 | 99-7517 | NAMEPLATE - Check Clutch Operation | 1 | |
| 15 | 99-2477 | NAMEPLATE - 24 Volt | 1 | |
| 16 | 92-4114 | NAMEPLATE - R134a | 1 | |
| 17 | 91-9638 | NAMEPLATE - Thermo King | 2 | |
| 18 | 99-9084 | NAMEPLATE - Arrow | 1 | |
| 19 | 91-3247 | NAMEPLATE - TK Logo | 1 |
