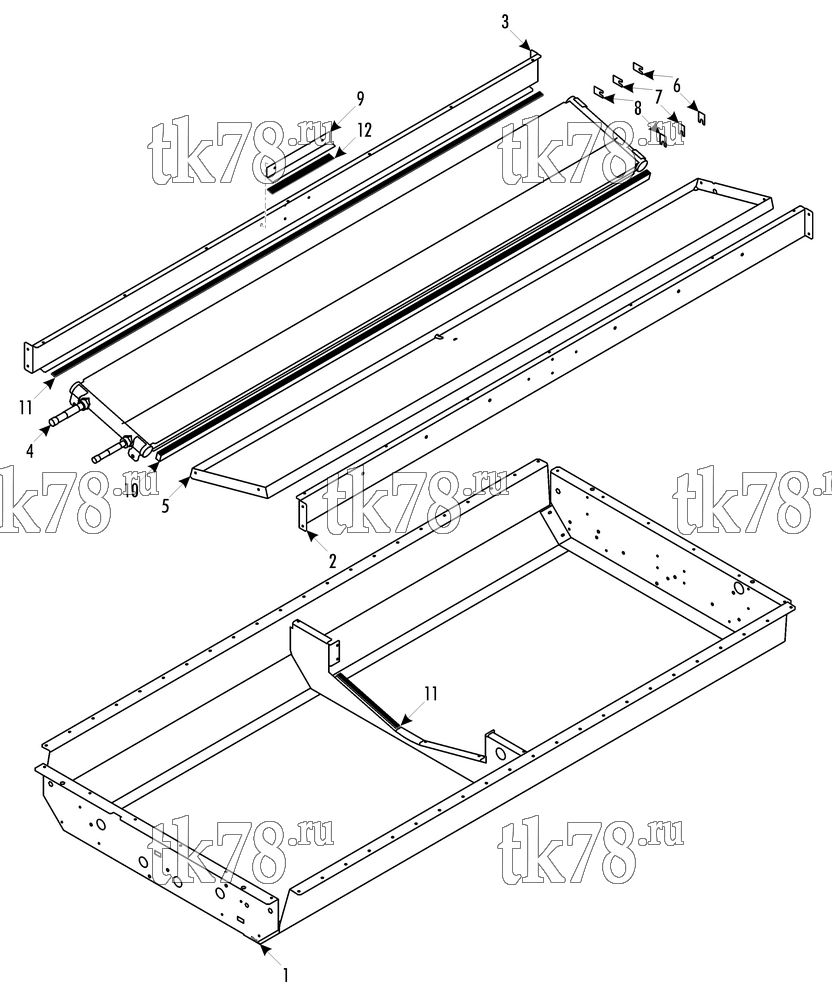

Установкa Thermo King ATHENIA MKII S500 схема CONDENSER – 253H3
Обновление от: 10/21/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8746 | BOX - condenser, weldment (narrow unit) | 1 | |
| 98-8747 | BOX - condenser, weldment (wide unit) | 1 | ||
| 55-3101 | RIVET - condenser | A/R | ||
| 2 | 98-8837 | WALL - side | 1 | |
| 3 | 98-8749 | WALL - side | 1 | |
| 55-5130 | RIVET - wall | A/R | ||
| 4 | 67-2626 | CONDENSER | 1 | |
| 55-6994 | SCREW - condenser | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7042 | NUT | 4 | ||
| 5 | 98-8838 | PLATE - cover | 1 | |
| 55-5130 | RIVET - plate | A/R | ||
| 6 | 92-9047 | SPACER | 2 | |
| 7 | 92-9048 | SPACER | 2 | |
| 8 | 92-9049 | SPACER | 2 | |
| 9 | 92-9050 | BRACKET - condenser | 1 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 10 | 92-9051 | INSULATION | 1 | |
| 11 | 99-2996 | STRIP - neoprene | 1 | |
| 12 | 99-7336 | STRIP - neoprene | 1 |
