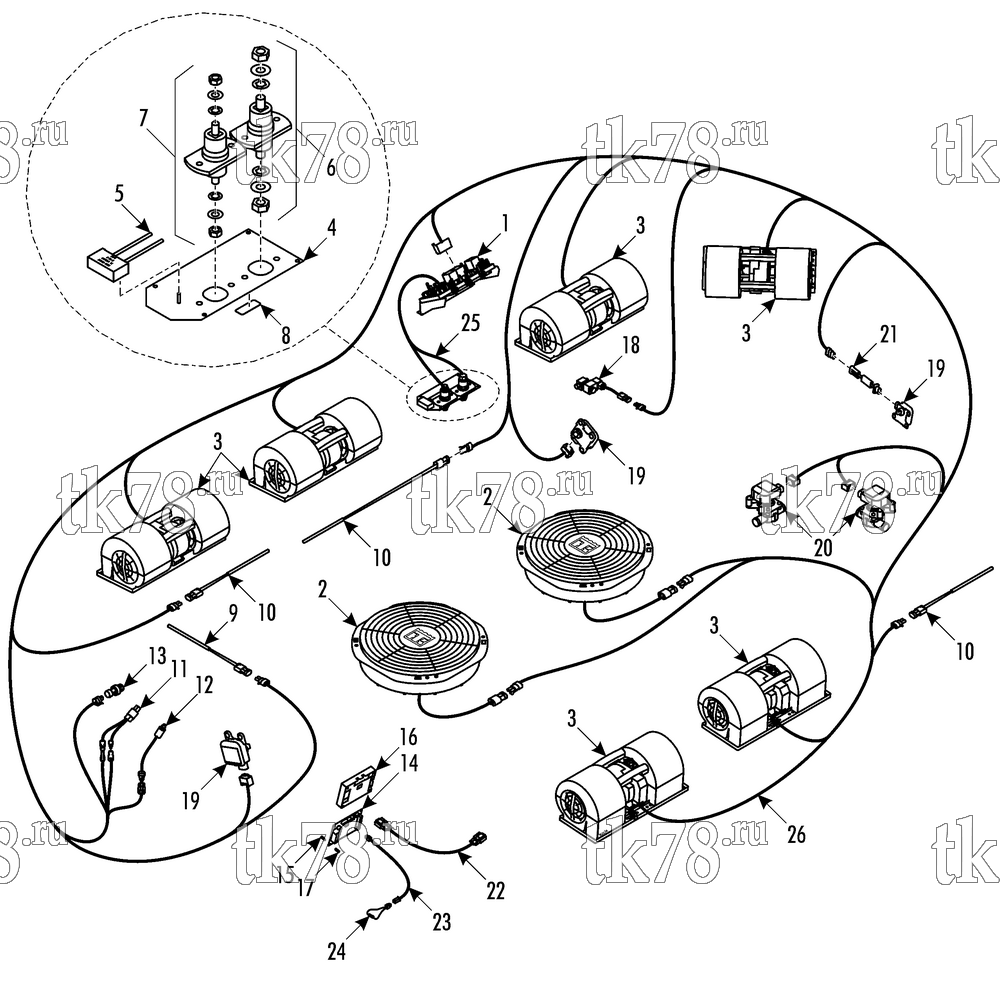

Установкa Thermo King ATHENIA MKII DS500 N 1004 схема ELECTRICAL COMPONENTS – 257D3
Обновление от: 5/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER (see 257D4) | 1 | |
| 2 | 78-1414 | FAN - assembly (24VDC) | 2 | |
| 3 | 78-1679 | BLOWER | 6 | |
| 4 | 92-9087 | PLATE | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 5 | 41-6098 | SUPRESSOR - voltage | 1 | |
| 51-888 | STUD - self clinching | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 6 | 41-9743 | CONNECTOR - wire | 1 | |
| 55-3066 | LOCKWASHER | 2 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-9189 | NUT | 2 | ||
| 7 | 41-9742 | CONNECTOR - wire | 1 | |
| 55-3238 | LOCKWASHER | 2 | ||
| 55-8955 | FLATWASHER | 2 | ||
| 305-1653 | NUT | 2 | ||
| 55-6994 | SCREW - connector | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7042 | NUT | 4 | ||
| 8 | 91-7509 | NAMEPLATE - positive/negative | 1 | |
| 9 | 41-4335 | SENSOR - temperature | 1 | |
| 10 | 41-4157 | SENSOR - temperature | 3 | |
| 11 | 41-4147 | SWITCH - lpco | 1 | |
| 12 | 41-4146 | SWITCH - hpco | 1 | |
| 13 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 14 | 41-8140 | MODULE - main, CAN | 1 | |
| 51-1848 | STUD - module | 4 | ||
| 55-8410 | FLATWASHER | 4 | ||
| 15 | 51-1849 | SPACER | 4 | |
| 16 | 92-7576 | COVER - module | 1 | |
| 17 | 51-1850 | SPACER | 4 | |
| 55-9195 | SCREW - spacer | 4 | ||
| 55-9057 | LOCKWASHER | 4 | ||
| 55-8410 | FLATWASHER | 4 | ||
| 18 | 41-6348 | VALVE - solenoid | 1 | |
| 19 | 41-3255 | SERVOMOTOR | 3 | |
| 20 | 41-6592 | VALVE - water | 2 | |
| 21 | 41-7190 | CONTROLLER - servomotor | 1 | |
| 22 | 41-5750 | CABLE - connecting | 1 | |
| 23 | 41-9799 | HARNESS - CAN interface (for connectors see 252E9) | 1 | |
| 24 | 41-9798 | TERMINATOR - CAN | 1 | |
| 25 | 41-9948 | HARNESS - supply | 1 | |
| 26 | 42-472 | HARNESS - ATHENIA MKII (for connectors see 243A8) | 1 |
