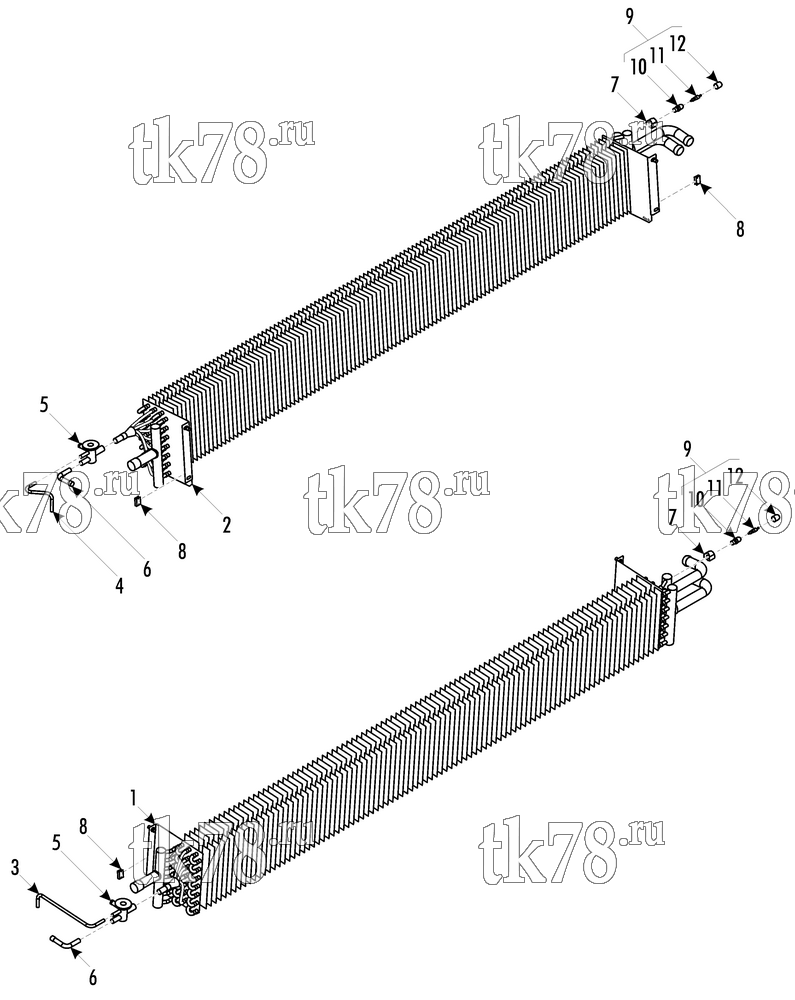

Установкa Thermo King ATHENIA MKII DS500 N 1004 схема COILS - MAIN SECTION – 257D1
Обновление от: 5/4/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2734 | COIL - evaporator/heater, #1 | 1 | |
| 2 | 67-2740 | COIL - evaporator/heater, #2 | 1 | |
| 3 | 61-5627 | TUBE - evaporator/heater, #1 | 1 | |
| 4 | 61-5628 | TUBE - evaporator/heater, #2 | 1 | |
| 5 | 66-9900 | VALVE - thermostatic expansion, R134a | 2 | |
| 6 | 61-5629 | TUBE | 2 | |
| 7 | 66-4553 | FITTING - saddle | 2 | |
| 55-7340 | SCREW - fitting | 4 | ||
| 55-7171 | LOCKWASHER | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-8375 | NUT - captive | 4 | ||
| 8 | 51-2242 | CLAMP | 4 | |
| 9 | 11-2886 | VALVE - assy | 2 | |
| 10 | 55-7213 | BODY - valve | 1 | |
| 11 | 11-7777 | VALVE | 1 | |
| 12 | 55-5672 | CAP - valve | 1 |
