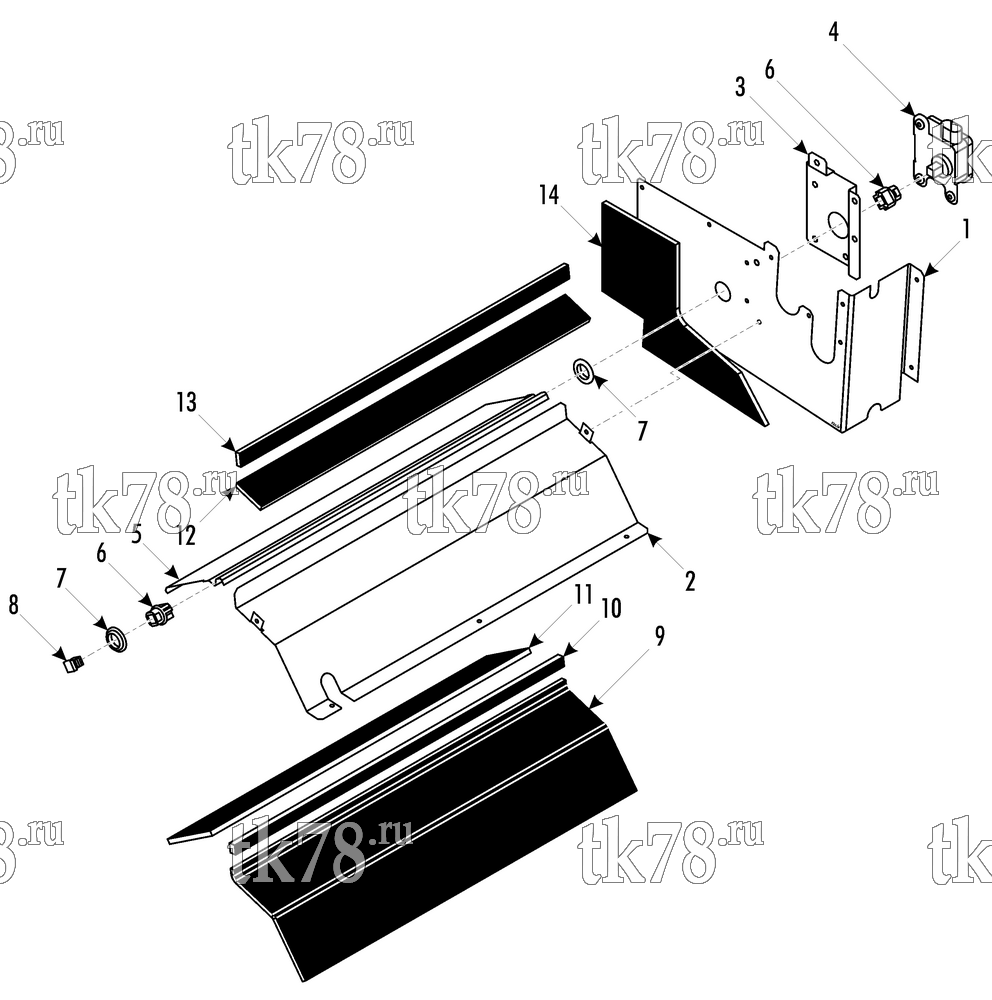

Установкa Thermo King ATHENIA MKII DS500 N 1004 схема FRESH AIR COMPONENTS - DRIVER SECTION – 257C7
Обновление от: 6/29/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9823 | PARTITION | 1 | |
| 2 | 92-9824 | PLATE - flap | 1 | |
| 55-5130 | RIVET - plate | 1 | ||
| 3 | 92-9825 | BRACKET - power | 1 | |
| 55-7664 | SCREW - bracket | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 55-7866 | NUT - captive | 3 | ||
| 4 | 41-3255 | SERVOMOTOR | 1 | |
| 55-7696 | SCREW - servomotor | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 55-7866 | NUT - captive | 3 | ||
| 5 | 92-8178 | PLATE - flap | 1 | |
| 6 | 77-2746 | ADAPTER | 2 | |
| 7 | 92-5226 | BEARING | 2 | |
| 8 | 51-261 | PLUG | 1 | |
| 9 | 92-9826 | INSULATION | 1 | |
| 10 | 92-8188 | INSULATION | 1 | |
| 11 | 92-8180 | INSULATION | 1 | |
| 12 | 92-8181 | INSULATION | 1 | |
| 13 | 92-8182 | INSULATION | 1 | |
| 14 | 92-9827 | INSULATION | 1 |
