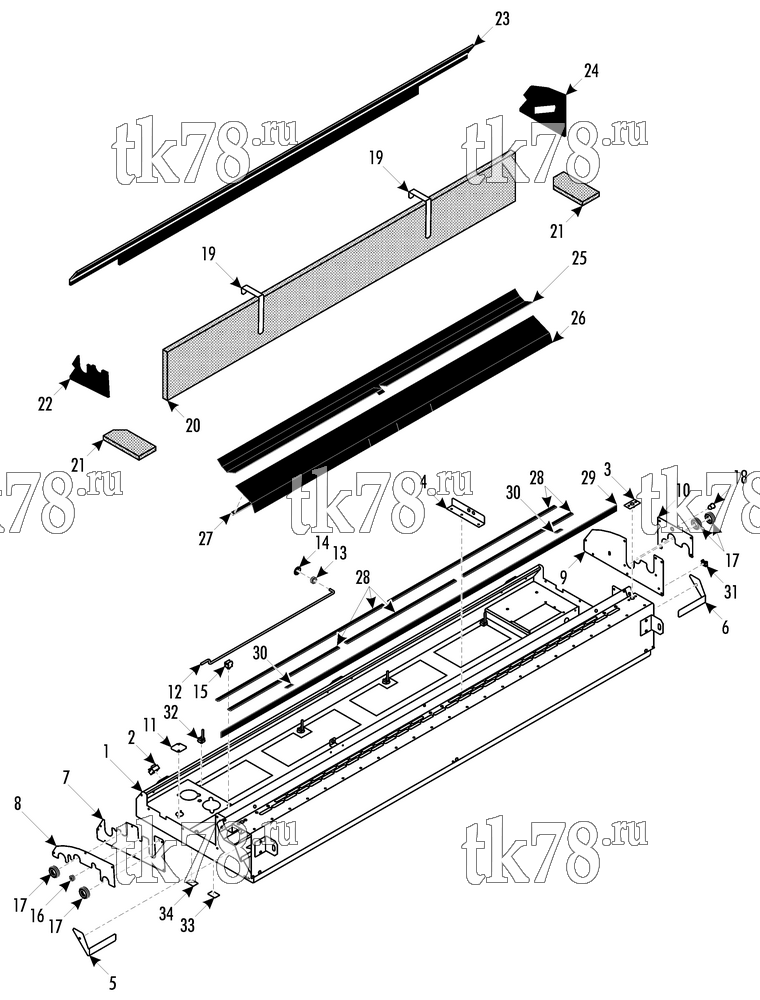

Установкa Thermo King ATHENIA MKII DS500 N 1004 схема EVAPORATOR BASE 2 – 257C1
Обновление от: 6/29/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9005 | BASE - evaporator | 1 | |
| 51-1930 | SCREW - base | 2 | ||
| 51-953 | FLATWASHER | 2 | ||
| 2 | 55-9194 | NUT - captive | 3 | |
| 3 | 92-4030 | BRACKET - lifting eye | 2 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 4 | 92-9058 | BRACKET - middle | 1 | |
| 55-5130 | RIVET - bracket | 3 | ||
| 5 | 92-9079 | COVER | 1 | |
| 6 | 92-9078 | COVER | 1 | |
| 55-5130 | RIVET - cover | 2 | ||
| 7 | 92-9061 | BLADE | 1 | |
| 8 | 92-9070 | PLATE - cover | 1 | |
| 9 | 92-9060 | BLADE | 1 | |
| 10 | 92-9812 | PLATE - cover | 1 | |
| 55-5130 | RIVET - plate | 17 | ||
| 11 | 92-7599 | PLATE | 1 | |
| 55-5130 | RIVET - plate | 2 | ||
| 12 | 92-8933 | SUPPORT - cover | 1 | |
| 13 | 83-258 | GROMMET (0.250 id) | 1 | |
| 14 | 51-809 | LOCKWASHER | 1 | |
| 15 | 51-1669 | CLIP - plastic | 1 | |
| 16 | 33-428 | GROMMET (0.500 id) | 1 | |
| 17 | 33-452 | GROMMET (0.875 id) | 4 | |
| 18 | 33-4681 | PLUG - rubber | 1 | |
| 19 | 92-3540 | CLIP | 2 | |
| 20 | 92-5663 | FILTER - evaporator | 1 | |
| 21 | 92-4007 | FILTER - evaporator | 2 | |
| 22 | 92-9071 | INSULATION | 1 | |
| 23 | 92-9067 | INSULATION | 1 | |
| 24 | 92-9072 | INSULATION | 1 | |
| 25 | 92-9084 | INSULATION | 1 | |
| 26 | 92-9083 | INSULATION | 1 | |
| 27 | 92-9085 | STRIP - insulation | 1 | |
| 28 | 99-2996 | STRIP - neoprene | A/R | |
| 29 | 99-6968 | STRIP - neoprene | A/R | |
| 30 | 99-1908 | STRIP - neoprene | A/R | |
| 31 | 99-3281 | MOUNT - bandwrap | 1 | |
| 32 | 51-1631 | STRAP - cable | A/R | |
| 33 | 91-7510 | NAMEPLATE - gas in | 1 | |
| 34 | 91-8536 | NAMEPLATE - vapour out | 1 |
