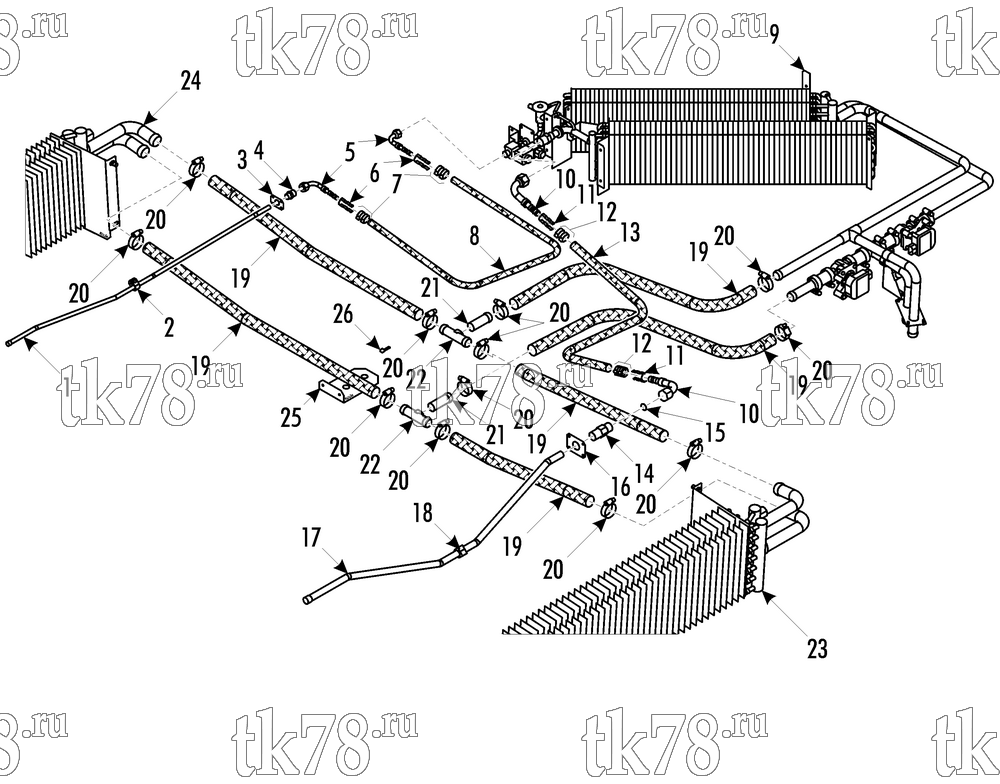

Установкa Thermo King ATHENIA MKII DS500 N 1004 схема TUBES - CONNECTION – 257C0
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-6047 | TUBE | 1 | |
| 2 | 55-6388 | CLAMP - tube | 1 | |
| 55-8464 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 3 | 92-9830 | HOLDER - fitting | 1 | |
| 55-5130 | RIVET - holder | 4 | ||
| 4 | 61-3643 | ADAPTER - tube | 1 | |
| 5 | 51-2393 | FITTING - 90 deg (tube-O, #6 hose) | 2 | |
| 6 | 55-9411 | CAGE - hose #6 | 2 | |
| 7 | 55-9415 | CLIP - hose #6 | 4 | |
| 8 | 61-6045 | HOSE #6 (950mm) | 1 | |
| 9 | NSS | TUBES - driver section (see 257C9) | 1 | |
| 10 | 51-2424 | FITTING - 90 deg (tube-O, #10 hose x #10 fitting) | 2 | |
| 11 | 55-9413 | CAGE - hose #10 | 2 | |
| 12 | 55-9417 | CLIP - hose #10 | 4 | |
| 13 | 61-6044 | HOSE #10 (750mm) | 1 | |
| 14 | 61-3473 | ADAPTER - tube | 1 | |
| 15 | 33-672 | O-RING | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 16 | 92-9831 | HOLDER - fitting | 1 | |
| 55-5130 | RIVET - holder | 4 | ||
| 17 | 61-6026 | TUBE | 1 | |
| 18 | 91-758 | CLAMP - tube | 1 | |
| 55-8316 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 19 | 61-6046 | HOSE | A/R | |
| 20 | 55-1643 | CLAMP - hose | 12 | |
| 21 | 61-6048 | TUBE | 2 | |
| 22 | 61-6049 | TUBE | 2 | |
| 23 | NSS | COIL #1 - main section (see 257D1) | 1 | |
| 24 | NSS | COIL #2 - main section (see 257D1) | 1 | |
| 25 | 92-9832 | BRACKET | 1 | |
| 55-5130 | RIVET - bracket | 2 | ||
| 26 | 56-2330 | BANDWRAP | 3 |
