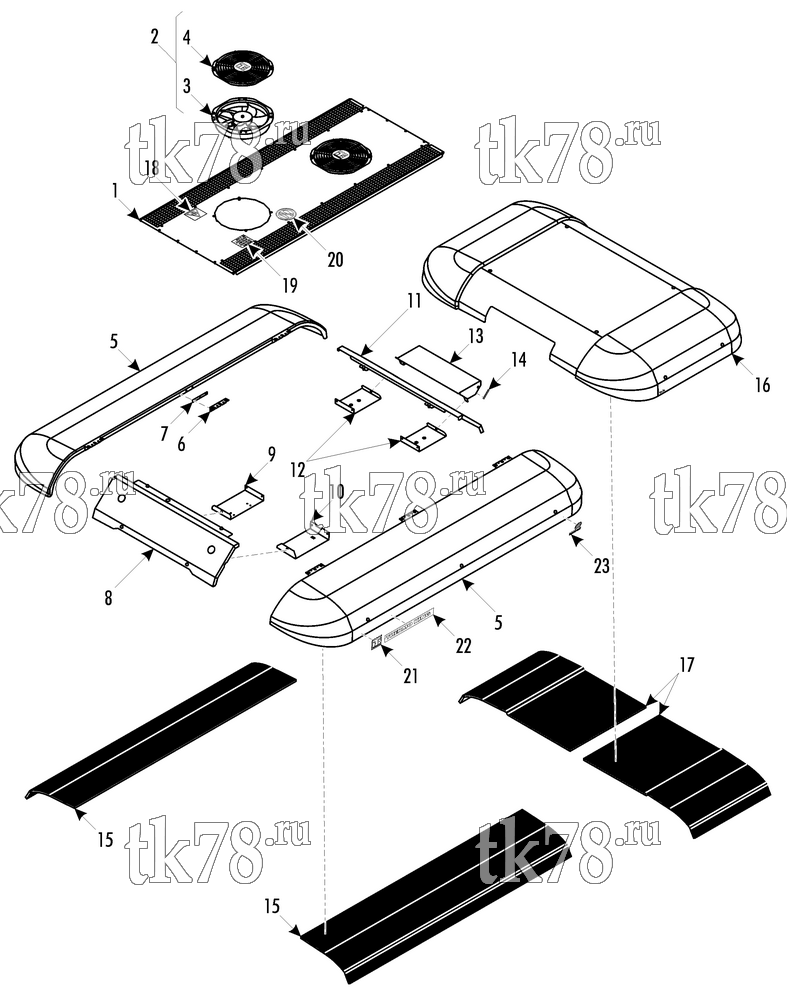

Установкa Thermo King ATHENIA MKII DS500 N 1004 схема COVERS – 257B9
Обновление от: 5/4/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8831 | COVER - fan | 1 | |
| 55-7373 | NUT - captive | 8 | ||
| 55-8403 | NUT - captive | 6 | ||
| 55-5130 | RIVET | 28 | ||
| 2 | 78-1414 | FAN - assembly | 2 | |
| 3 | 78-1415 | FAN | 1 | |
| 4 | 78-1416 | GUARD - fan | 1 | |
| 51-1243 | SCREW - fan | 2 | ||
| 55-7372 | SCREW - fan | 8 | ||
| 55-9190 | WASHER - spring | 8 | ||
| 5 | 98-8694 | COVER - side | 2 | |
| 51-1930 | SCREW - cover | 6 | ||
| 6 | 91-7098 | HINGE - cover | 6 | |
| 55-7340 | SCREW - hinge | 12 | ||
| 55-7404 | LOCKWASHER | 12 | ||
| 55-7089 | FLATWASHER | 12 | ||
| 55-8375 | NUT - captive | 12 | ||
| 55-7036 | SCREW | 18 | ||
| 55-7171 | LOCKWASHER | 18 | ||
| 55-7089 | FLATWASHER | 18 | ||
| 7 | 92-9810 | PLATE - nut | 6 | |
| 8 | 98-8695 | SPOILER | 1 | |
| 55-7172 | SCREW - spoiler | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 56-2086 | FLATWASHER | 2 | ||
| 9 | 92-9053 | BRACKET | 1 | |
| 10 | 92-9055 | BRACKET | 1 | |
| 55-7172 | SCREW - bracket | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 56-2086 | FLATWASHER | 2 | ||
| 55-5130 | RIVET | 4 | ||
| 11 | 98-8991 | SPOILER | 1 | |
| 55-6994 | SCREW - spoiler | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 56-2086 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 12 | 92-9054 | BRACKET | 2 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 13 | 98-9002 | TUNNEL | 1 | |
| 55-7172 | SCREW - tunnel | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 56-2086 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 55-5130 | RIVET | 6 | ||
| 14 | 92-3279 | RUBBER - profile | A/R | |
| 15 | 92-9052 | INSULATION - cover | 2 | |
| 16 | 98-9003 | COVER | 1 | |
| 51-1930 | SCREW - cover | 8 | ||
| 17 | 92-9811 | INSULATION - cover | 2 | |
| 18 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 19 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 20 | 92-3767 | NAMEPLATE - No Step | 1 | |
| 21 | 99-2789 | NAMEPLATE - TK logo | 2 | |
| 22 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 23 | 92-1307 | NAMEPLATE - IR (black letters) | 2 |
