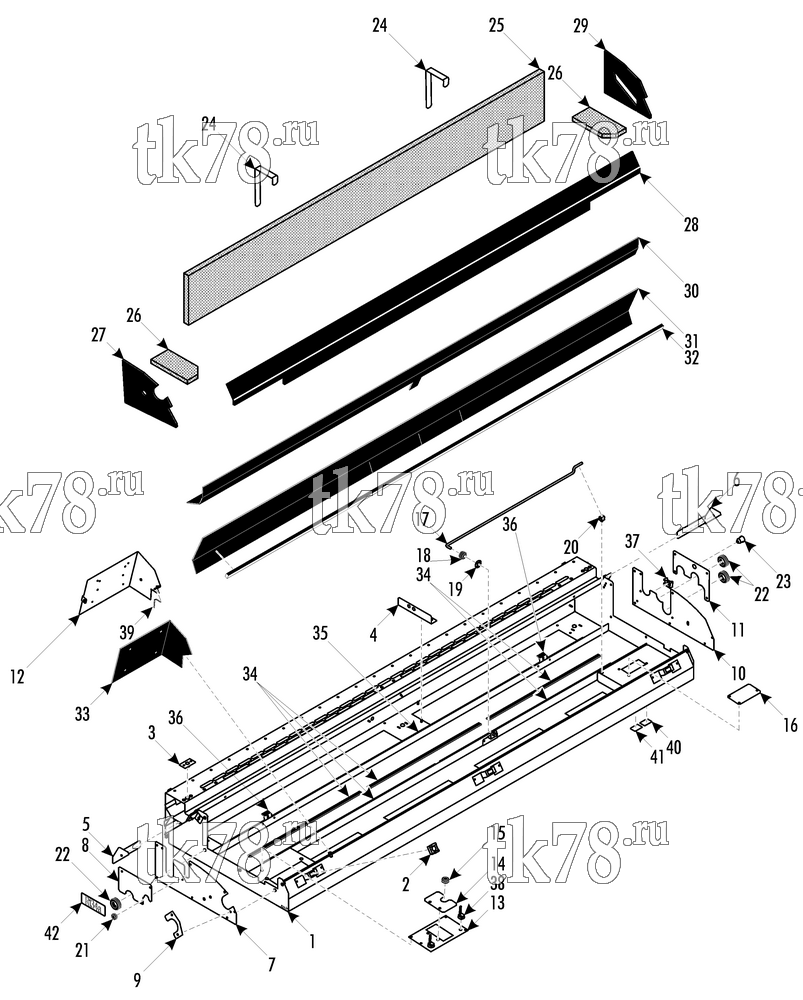

Установкa Thermo King ATHENIA MKII DS500 N 1004 схема EVAPORATOR BASE 1 – 257B0
Обновление от: 6/29/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9004 | BASE - evaporator | 1 | |
| 51-1930 | SCREW - base | 2 | ||
| 51-953 | FLATWASHER | 2 | ||
| 2 | 55-9194 | NUT - captive | 3 | |
| 3 | 92-4030 | BRACKET - lifting eye | 2 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 4 | 92-9058 | BRACKET - middle | 1 | |
| 55-5130 | RIVET - bracket | 3 | ||
| 5 | 92-9078 | COVER | 1 | |
| 6 | 92-9079 | COVER | 1 | |
| 55-5130 | RIVET - cover | 2 | ||
| 7 | 92-9059 | BLADE | 1 | |
| 8 | 92-9062 | PLATE - cover | 1 | |
| 9 | 92-9063 | PLATE - cover | 1 | |
| 10 | 92-9060 | BLADE | 1 | |
| 11 | 92-9812 | PLATE - cover | 1 | |
| 55-5130 | RIVET - plate | 19 | ||
| 12 | 92-9064 | PANEL - CAN | 1 | |
| 55-7664 | SCREW - panel | 1 | ||
| 55-7369 | LOCKWASHER | 1 | ||
| 55-7697 | FLATWASHER | 1 | ||
| 55-7866 | NUT - captive | 1 | ||
| 55-7663 | SCREW - panel | 1 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7665 | NUT - hexstop | 1 | ||
| 13 | 92-7565 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 14 | 92-6089 | COVER | 1 | |
| 55-7664 | SCREW - cover | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 15 | 33-1809 | GROMMET (0.500 id) | 1 | |
| 16 | 92-9813 | PLATE - cover | 1 | |
| 55-5130 | RIVET - plate | 3 | ||
| 17 | 92-8933 | SUPPORT - cover | 1 | |
| 18 | 83-258 | GROMMET (0.250 id) | 1 | |
| 19 | 51-809 | LOCKWASHER | 1 | |
| 20 | 51-1669 | CLIP - plastic | 1 | |
| 21 | 33-428 | GROMMET (0.500 id) | 1 | |
| 22 | 33-452 | GROMMET (0.875 id) | 3 | |
| 23 | 33-4681 | PLUG - rubber | 1 | |
| 24 | 92-3540 | CLIP | 2 | |
| 25 | 92-5663 | FILTER - evaporator | 1 | |
| 26 | 92-4007 | FILTER - evaporator | 2 | |
| 27 | 92-9065 | INSULATION | 1 | |
| 28 | 92-9067 | INSULATION | 1 | |
| 29 | 92-9066 | INSULATION | 1 | |
| 30 | 92-9084 | INSULATION | 1 | |
| 31 | 92-9083 | INSULATION | 1 | |
| 32 | 92-9085 | INSULATION | 1 | |
| 33 | 92-9068 | INSULATION | 1 | |
| 34 | 99-2996 | STRIP - neoprene | A/R | |
| 35 | 99-6968 | STRIP - neoprene | A/R | |
| 36 | 99-1908 | STRIP - neoprene | A/R | |
| 37 | 99-3281 | MOUNT - bandwrap | 1 | |
| 38 | 51-1631 | STRAP - cable | A/R | |
| 39 | 92-3279 | RUBBER - profile | A/R | |
| 40 | 91-7703 | NAMEPLATE - liquid in | 1 | |
| 41 | 91-7550 | NAMEPLATE - liquid out | 1 | |
| 42 | 91-5459 | NAMEPLATE - R134a | 1 |
