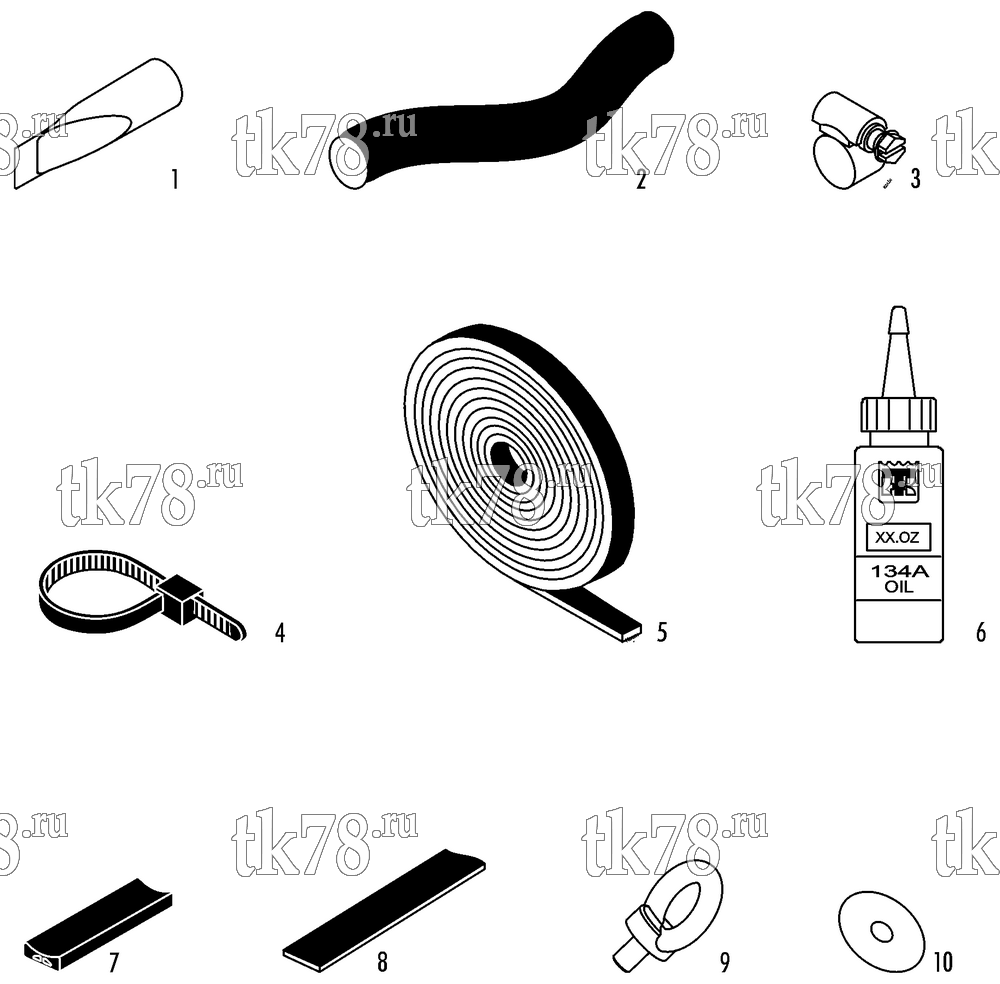

Установкa Thermo King ATHENIA E800 for HESS схема INSTALLATION KIT (800159) – 215G2
Обновление от: 7/28/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1273 | VALVE - hose | 4 | |
| 2 | 91-9006 | HOSE | A/R | |
| 3 | 55-6726 | CLAMP | 6 | |
| 4 | 55-2330 | BANDWRAP (1.75 dia) | A/R | |
| 5 | 203-391 | TAPE - sealer | A/R | |
| 6 | 203-505 | OIL - compressor (2 oz bottle) | 1 | |
| 7 | 92-753 | GASKET - sealing | A/R | |
| 8 | 92-4040 | INSULATION | 2 | |
| 9 | 51-916 | BOLT - lifting | 4 | |
| 10 | 51-1137 | WASHER | 14 |
