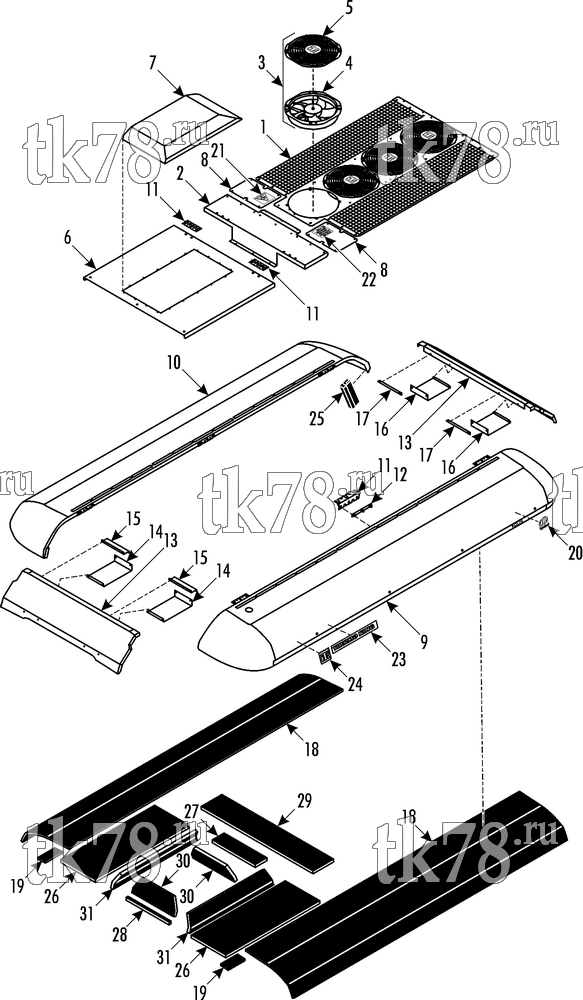

Установкa Thermo King ATHENIA E800 for HESS схема COVER – 215F3
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7063 | COVER - condenser (standard) | 1 | |
| 55-7373 | NUT - captive | A/R | ||
| 2 | 98-7568 | COVER - frame | 1 | |
| 55-5130 | RIVET - covers | A/R | ||
| 55-5047 | RIVET - covers | A/R | ||
| 3 | 78-1414 | FAN - assembly | 4 | |
| 4 | 78-1414 | FAN | 4 | |
| 5 | 78-1416 | GUARD - fan | 4 | |
| 51-1243 | SCREW | 4 | ||
| 55-7372 | SCREW - fan | 16 | ||
| 51-130 | LOCKWASHER | 16 | ||
| 6 | 98-7569 | COVER | 1 | |
| 55-6994 | SCREW - cover | 3 | ||
| 55-7170 | LOCKWASHER | 3 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 7 | 98-7570 | COVER - compressor | 1 | |
| 55-5130 | RIVET - cover | A/R | ||
| 8 | 92-4018 | PLATE | 2 | |
| 55-5047 | RIVET - plate | 8 | ||
| 9 | 98-7065 | COVER - evaporator | 1 | |
| 10 | 98-7066 | COVER - evaporator | 1 | |
| 55-9306 | SCREW - cover | 8 | ||
| 11 | 91-7098 | HINGE - cover | 8 | |
| 55-7036 | SCREW - hinge to frame & covers | 40 | ||
| 55-7171 | LOCKWASHER | 40 | ||
| 55-7089 | FLATWASHER | 40 | ||
| 55-8375 | NUT - captive | 10 | ||
| 12 | 92-4019 | PLATE - nut | 6 | |
| 13 | 98-6896 | SPOILER | 2 | |
| 14 | 92-4022 | BRACKET - spoiler | 2 | |
| 15 | 92-5828 | BRACKET - spoiler | 2 | |
| 16 | 92-4020 | BRACKET - spoiler | 2 | |
| 17 | 92-4021 | BRACKET - spoiler | 2 | |
| 55-5130 | RIVET - brackets | A/R | ||
| 18 | 92-4619 | INSULATION - cover | 2 | |
| 19 | 92-6564 | INSULATION - cover | 2 | |
| 20 | 92-1307 | NAMEPLATE - IR logo | 2 | |
| 21 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 22 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 23 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 24 | 99-2789 | NAMEPLATE - TK logo | 2 | |
| 25 | 92-146 | GASKET - molded | A/R | |
| 26 | 92-6565 | INSULATION | 2 | |
| 27 | 92-6567 | INSULATION | 1 | |
| 28 | 92-6568 | INSULATION | 1 | |
| 29 | 92-6566 | INSULATION | 1 | |
| 30 | 92-6569 | INSULATION | 2 | |
| 31 | 92-6570 | INSULATION | 2 |
