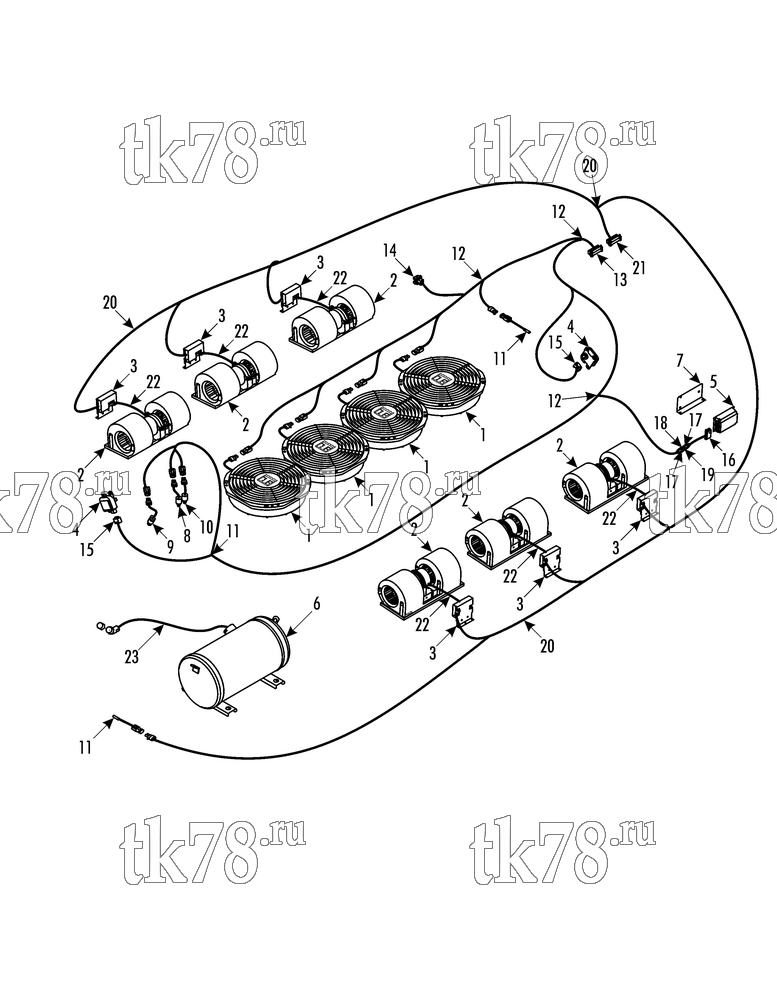

Установкa Thermo King ATHENIA E800 for HESS (900826) Two Zones схема ELECTRICAL COMPONENTS – 229H3
Обновление от: 7/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1414 | FAN (see 229G4) | 4 | |
| 2 | 78-1395 | BLOWER (see 229G7) | 6 | |
| 3 | 41-2757 | CONTROLLER - blower (see 229G7) | 6 | |
| 4 | 41-2755 | SERVOMOTOR (see 218H8) | 2 | |
| 5 | 41-3543 | CONTROLLER - servomotor | 1 | |
| 55-7664 | SCREW - controller | 3 | ||
| 55-7369 | LOCKWASHER | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 6 | 102-1062 | COMPRESSOR (see 229G0) | 1 | |
| 7 | 92-5843 | PLATE - controller | 1 | |
| 55-7866 | NUT - captive | 3 | ||
| 55-7664 | SCREW - plate | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 8 | 41-1216 | SWITCH - hpco (see 229G0) | 1 | |
| 9 | 44-9976 | SWITCH - lpco (see 229G0) | 1 | |
| 10 | 41-7509 | SWITCH - hpco (see 229G0) | 1 | |
| 11 | 41-2778 | SENSOR - temperature (for connectors see 115D14) | 2 | |
| 12 | 41-8549 | HARNESS - condenser (for connectors see 115D14) | 1 | |
| 13 | 41-2765 | CONNECTOR (male, 22 pin) | 1 | |
| 14 | 41-2770 | CONNECTOR (male, 4 pin) | 1 | |
| 15 | 41-3288 | CONNECTOR (female, 6 pin) | 2 | |
| 16 | 41-2771 | CONNECTOR (female, 15 pin) | 1 | |
| 17 | 41-3968 | BOARD - pc | 2 | |
| 18 | 41-7391 | RESISTOR (1 kohm) | 1 | |
| 19 | 41-7392 | RESISTOR (820 ohm) | 1 | |
| 20 | 41-8550 | HARNESS - evaporator (for connectors see 115D14) | 1 | |
| 21 | 41-2765 | CONNECTOR (male, 22 pin) | 1 | |
| 22 | 41-8012 | HARNESS - blower | 6 | |
| 23 | 41-7978 | CABLE - power cord | 1 |
