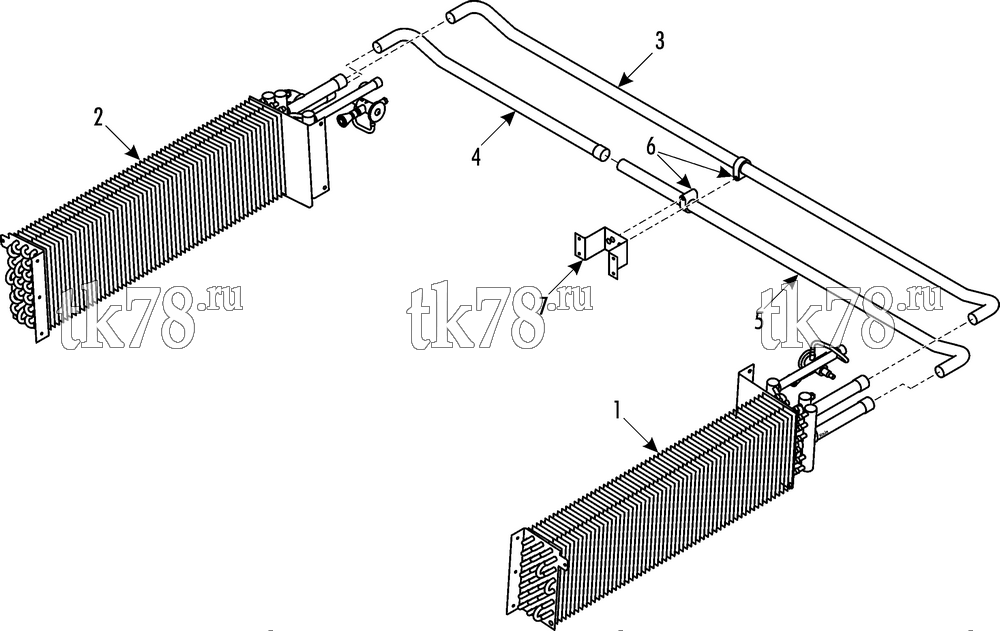

Установкa Thermo King ATHENIA E800 for HESS (900826) Two Zones схема TUBE HEATING – 229H1
Обновление от: 1/9/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2409 | COIL - evaporator/heater | 1 | |
| 2 | 67-2410 | COIL - evaporator/heater | 1 | |
| 3 | 61-4551 | TUBE - heating | 1 | |
| 4 | 61-4552 | TUBE - heating | 1 | |
| 5 | 61-4553 | TUBE - heating | 1 | |
| 6 | 55-7013 | CLAMP - tube | 2 | |
| 55-7027 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 7 | 61-3045 | HOLDER - tube | 1 | |
| 55-5130 | RIVET - holder | 4 |
