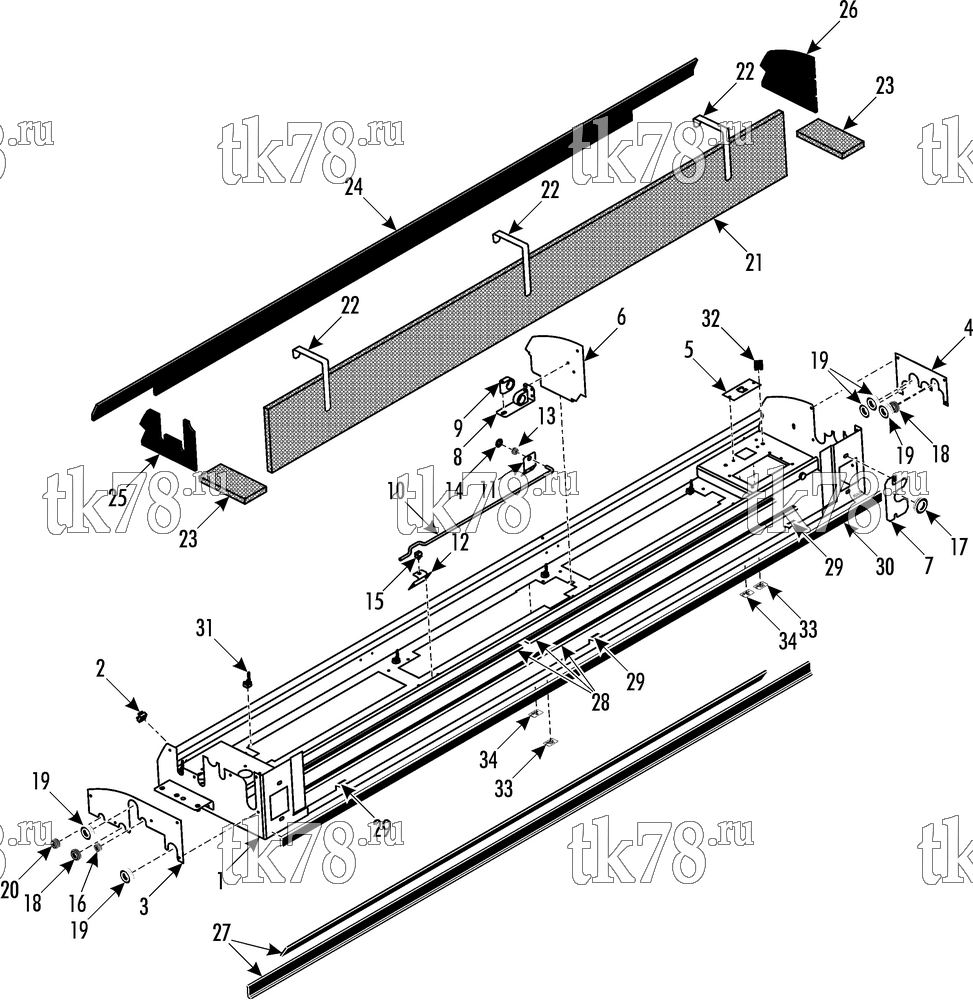

Установкa Thermo King ATHENIA E800 for HESS (900826) Two Zones схема EVAPORATOR BASE 2 – 229G9
Обновление от: 10/23/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8164 | BASE - evaporator | 1 | |
| 55-7373 | NUT - captive | 4 | ||
| 55-6994 | SCREW - base | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 2 | 55-9194 | NUT - captive | 4 | |
| 3 | 92-5834 | PLATE - covering | 1 | |
| 4 | 92-7229 | PLATE - covering | 1 | |
| 5 | 92-4175 | BRACKET - terminal | 1 | |
| 6 | 92-7345 | BARRIER | 1 | |
| 55-5130 | RIVET - plates & bracket & barrier | A/R | ||
| 7 | 92-4012 | PLATE - covering | 1 | |
| 8 | 92-7342 | HOLDER | 1 | |
| 55-5130 | RIVET - holder | 1 | ||
| 9 | 55-7013 | CLAMP - tube | 2 | |
| 55-8993 | SCREW - clamp | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7354 | NUT | 2 | ||
| 10 | 92-7343 | SUPPORT - cover | 1 | |
| 11 | 92-5048 | BRACKET | 1 | |
| 12 | 92-7344 | BRACKET | 1 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 13 | 83-258 | GROMMET (0.25 id) | 1 | |
| 14 | 51-809 | LOCKWASHER | 1 | |
| 15 | 51-1669 | CLIP - support | 1 | |
| 16 | 33-428 | GROMMET (0.5 id) | 1 | |
| 17 | 33-1084 | GROMMET (1.0 id) | 1 | |
| 18 | 33-367 | GROMMET (0.625 id) | 2 | |
| 19 | 33-452 | GROMMET (0.875 id) | 5 | |
| 20 | 33-1213 | GROMMET (0.5 id) | 2 | |
| 21 | 92-4006 | FILTER - evaporator | 1 | |
| 22 | 92-5831 | CLIP - filter to evaporator | 3 | |
| 23 | 92-4007 | FILTER - evaporator | 2 | |
| 24 | 92-4008 | INSULATION | 1 | |
| 25 | 92-5835 | INSULATION | 1 | |
| 26 | 92-5836 | INSULATION | 1 | |
| 27 | 33-2420 | STRIP - neoprene | A/R | |
| 33-2420 | STRIP - neoprene | A/R | ||
| 28 | 99-2495 | STRIP - neoprene | A/R | |
| 99-2495 | STRIP - neoprene | A/R | ||
| 29 | 33-3540 | STRIP - neoprene | A/R | |
| 30 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R | |
| 31 | 51-1631 | STRAP - cable | 5 | |
| 32 | 99-3281 | MOUNT - bandwrap | 1 | |
| 55-7664 | SCREW - mount | 1 | ||
| 55-7369 | LOCKWASHER | 1 | ||
| 55-7866 | NUT - captive | 1 | ||
| 33 | 91-7703 | NAMEPLATE - Liquid Out | 2 | |
| 34 | 91-7550 | NAMEPLATE - Liquid In | 2 |
