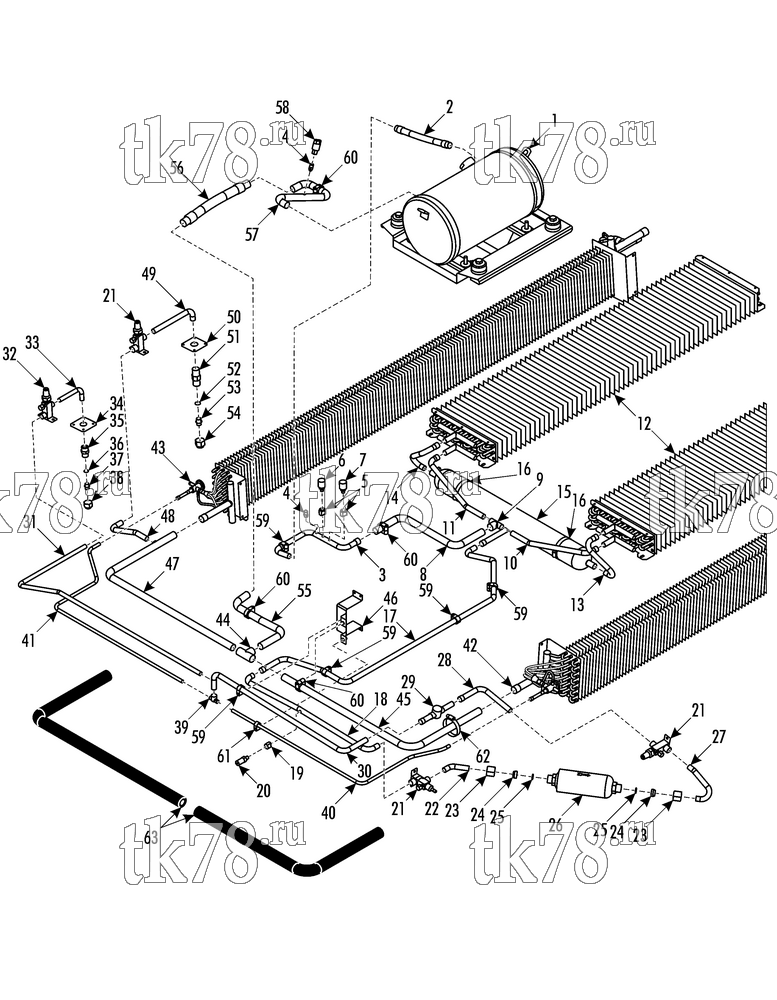

Установкa Thermo King ATHENIA E800 TROLLEYBUS HESS схема TUBE COOLING – 266G2
Обновление от: 9/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR - assy (see 266G6) | 1 | |
| 2 | 61-378 | ELIMINATOR - vibration (id 15.9) | 1 | |
| 3 | 61-5116 | TUBE | 1 | |
| 4 | 61-2059 | VALVE | 2 | |
| 5 | 66-4139 | FITTING - saddle | 2 | |
| 6 | 41-1216 | SWITCH - condenser pressure | 1 | |
| 7 | 41-7509 | SWITCH - high pressure cutout | 1 | |
| 8 | 61-6598 | TUBE | 1 | |
| 9 | 55-9229 | TEE (5/8 x 5/8 x 7/8) | 1 | |
| 10 | 61-3038 | TUBE | 1 | |
| 11 | 61-3039 | TUBE | 1 | |
| 12 | 67-2021 | COIL - condenser | 2 | |
| 13 | 61-3040 | TUBE | 1 | |
| 14 | 61-3041 | TUBE | 1 | |
| 15 | 67-2026 | TANK - receiver | 1 | |
| 16 | 55-2688 | CLAMP - tank | 2 | |
| 17 | 61-6599 | TUBE | 1 | |
| 18 | 61-2765 | TUBE | 1 | |
| 19 | 99-3060 | FITTING - saddle | 1 | |
| 20 | 66-7392 | VALVE - relief, complete | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 21 | 66-2104 | VALVE - shut-off | 3 | |
| 55-6994 | SCREW - valve | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 22 | 61-2766 | TUBE | 1 | |
| 23 | 55-6396 | NUT - shoulder | 2 | |
| 24 | 55-6356 | SHOULDER | 2 | |
| 25 | 33-672 | O-RING | 2 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 26 | 66-9352 | FILTER - drier (dehydrator) | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 27 | 61-2767 | TUBE | 1 | |
| 28 | 61-2768 | TUBE | 1 | |
| 29 | 66-9856 | INDICATOR - liquid (sight glass) | 1 | |
| 30 | 61-3698 | TUBE | 1 | |
| 31 | 61-3699 | TUBE | 1 | |
| 32 | 66-4694 | VALVE - shut-off | 1 | |
| 55-6994 | SCREW - valve | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 33 | 61-3700 | TUBE | 1 | |
| 34 | 93-1315 | HOLDER - fitting | 1 | |
| 55-5130 | RIVET - holder | A/R | ||
| 35 | 55-8692 | ADAPTER | 1 | |
| 36 | 33-2846 | O-RING | 1 | |
| 37 | 61-3897 | ADAPTER | 1 | |
| 38 | 61-2487 | NUT | 1 | |
| 39 | 55-7142 | TEE (3/8 x 3/8 x 5/8) | 1 | |
| 40 | 61-3701 | TUBE | 1 | |
| 41 | 61-3702 | TUBE | 1 | |
| 42 | 67-2239 | COIL - evaporator/heater (see 215F0) | 1 | |
| 43 | 67-2240 | COIL - evaporator/heater (see 215F0) | 1 | |
| 44 | 55-6174 | TEE (7/8C 7/8C 7/8C) | 1 | |
| 45 | 61-3703 | TUBE | 1 | |
| 46 | 92-5841 | HOLDER - tube | 1 | |
| 55-7373 | NUT - captive | 3 | ||
| 55-5130 | RIVET - holder | A/R | ||
| 47 | 61-3704 | TUBE | 1 | |
| 48 | 61-3705 | TUBE | 1 | |
| 49 | 61-3706 | TUBE | 1 | |
| 50 | 92-7254 | HOLDER - fitting | 1 | |
| 55-5130 | RIVET - holder | A/R | ||
| 51 | 61-3473 | ADAPTER - tube | 1 | |
| 52 | 33-2848 | O-RING (9/16 id) | 1 | |
| 53 | 61-4171 | ADAPTER | 1 | |
| 54 | 51-857 | NUT | 1 | |
| 55 | 61-5115 | TUBE | 1 | |
| 56 | 61-391 | ELIMINATOR - vibration (id 22.2) | 1 | |
| 57 | 61-6601 | TUBE | 1 | |
| 58 | 44-9976 | SWITCH - low pressure cutout | 1 | |
| 59 | 91-758 | CLAMP - tube | 5 | |
| 55-7027 | SCREW - clamp | 1 | ||
| 55-8316 | SCREW - clamp | 4 | ||
| 55-7170 | LOCKWASHER | 5 | ||
| 55-7075 | FLATWASHER | 5 | ||
| 60 | 55-7013 | CLAMP - tube | 4 | |
| 55-8993 | SCREW - clamp | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 61 | 55-6388 | CLAMP - tube | 1 | |
| 55-8464 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 62 | 55-4979 | CLAMP | 1 | |
| 63 | 91-3542 | TUBE - rubber | A/R |
