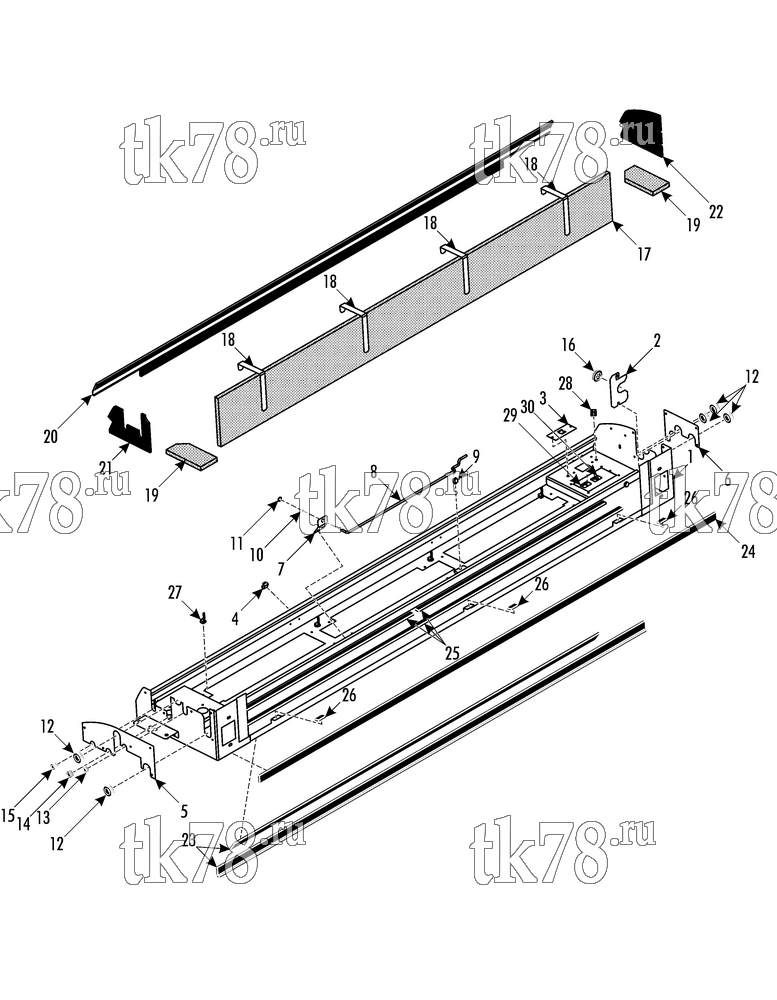

Установкa Thermo King ATHENIA E800 TROLLEYBUS HESS схема EVAPORATOR BASE 2 – 266F0
Обновление от: 9/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7573 | BASE - evaporator | 1 | |
| 2 | 92-4012 | PLATE - cover | 1 | |
| 55-6994 | SCREW - base/plate | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 3 | 92-4175 | BRACKET - terminal | 1 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 55-7866 | NUT - captive | 2 | ||
| 4 | 55-9194 | NUT - captive | 4 | |
| 5 | 92-5834 | PLATE - cover | 1 | |
| 6 | 92-4003 | PLATE - cover | 1 | |
| 55-5130 | RIVET - plate | A/R | ||
| 7 | 92-5048 | BRACKET - support | 1 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 8 | 92-4005 | SUPPORT - cover | 1 | |
| 9 | 51-1669 | CLIP - plastic | 1 | |
| 10 | 83-258 | GROMMET (0.250 id) | 1 | |
| 11 | 51-809 | LOCKWASHER | 1 | |
| 12 | 33-452 | GROMMET (0.875 id) | 5 | |
| 13 | 33-428 | GROMMET (0.500 id) | 1 | |
| 14 | 33-367 | GROMMET (0.625 id) | 1 | |
| 15 | 33-1213 | GROMMET (0.500 id) | 1 | |
| 16 | 33-1084 | GROMMET (1.000 id) | 1 | |
| 17 | 92-4006 | FILTER - evaporator | 1 | |
| 18 | 92-5831 | CLIP - filter | 4 | |
| 19 | 92-4007 | FILTER - evaporator | 2 | |
| 20 | 92-4008 | INSULATION | 1 | |
| 21 | 92-5835 | INSULATION | 1 | |
| 22 | 92-5836 | INSULATION | 1 | |
| 23 | 33-2420 | STRIP - neoprene | A/R | |
| 24 | 91-3809 | STRIP - neoprene | A/R | |
| 25 | 99-2495 | STRIP - neoprene | A/R | |
| 26 | 33-3540 | STRIP - neoprene | A/R | |
| 27 | 51-1631 | STRAP - cable | 5 | |
| 28 | 99-3281 | MOUNT - bandwrap | 1 | |
| 55-7664 | SCREW - mount | 1 | ||
| 55-7369 | LOCKWASHER | 1 | ||
| 29 | 91-7703 | NAMEPLATE - liquid in | 1 | |
| 30 | 91-7550 | NAMEPLATE - liquid out | 1 |
