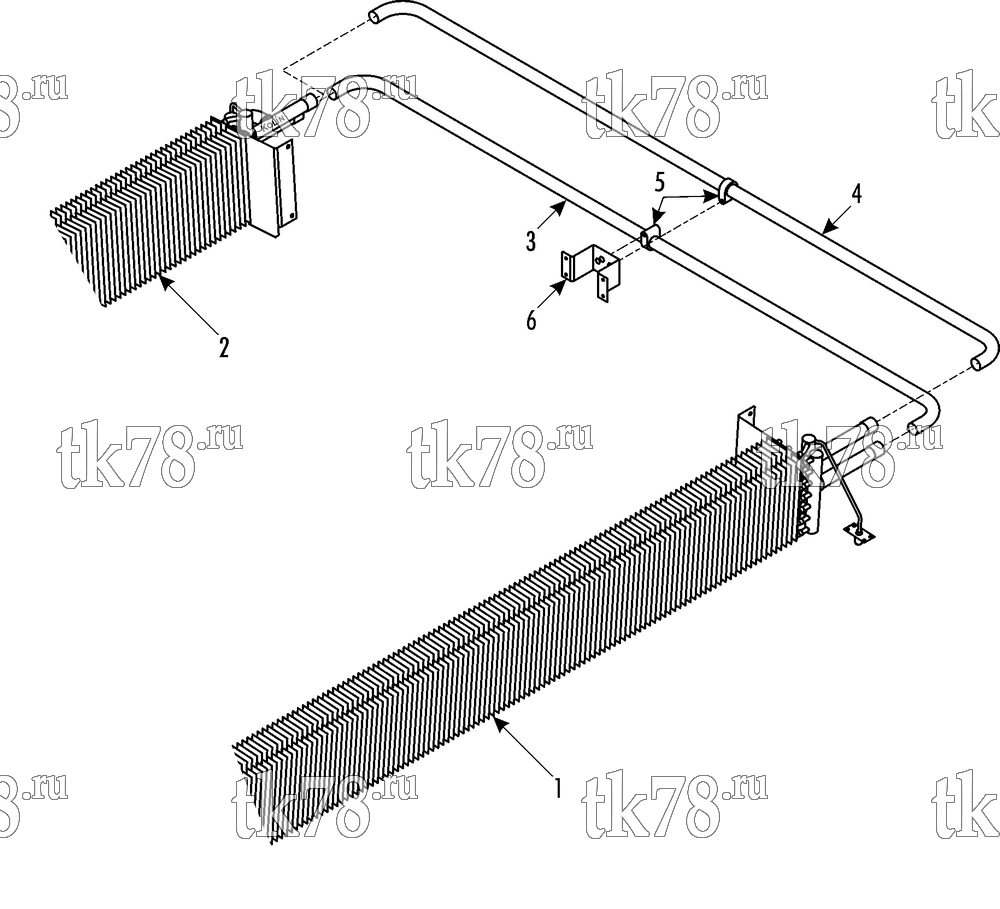

Установкa Thermo King ATHENIA E800 TROLLEYBUS HESS схема TUBE HEATING – 215F9
Обновление от: 7/28/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2239 | COIL - evaporator/heater, curbside (see 215F0) | 1 | |
| 2 | 67-2240 | COIL - evaporator/heater, roadside (see 215F0) | 1 | |
| 3 | 61-3043 | TUBE - heating | 1 | |
| 4 | 61-3044 | TUBE - heating | 1 | |
| 5 | 55-7013 | CLAMP - tube | 2 | |
| 55-7027 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 6 | 61-3045 | HOLDER - tube | 1 |
