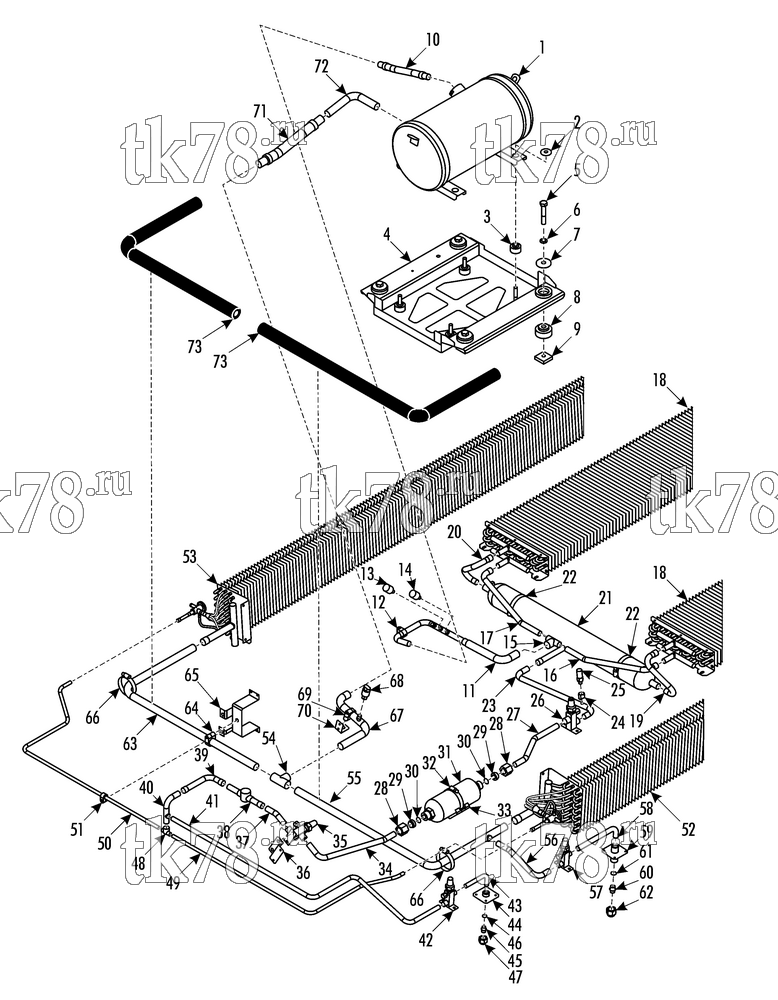

Установкa Thermo King ATHENIA E800 HYBRIDBUS R407C SINUS FILTER схема TUBE COOLING – 263F0
Обновление от: 11/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-1062 | COMPRESSOR | 1 | |
| 2 | 92-5839 | SPACER | 4 | |
| 3 | 92-5838 | SPACER | 4 | |
| 4 | 93-583 | HOLDER - compressor | 1 | |
| 55-7362 | SCREW | 4 | ||
| 55-7348 | NUT | 4 | ||
| 55-7000 | LOCKWASHER | 4 | ||
| 55-7357 | FLATWASHER | 4 | ||
| 5 | 55-7414 | SCREW - holder | 4 | |
| 6 | 51-136 | LOCKWASHER | 4 | |
| 7 | 93-584 | SPACER | 4 | |
| 8 | 93-585 | FLANGE | 4 | |
| 9 | 51-2241 | NUT | 4 | |
| 10 | 61-378 | ELIMINATOR - vibration, 15.9 id | 1 | |
| 11 | 61-6345 | TUBE - assembly | 1 | |
| 61-2059 | VALVE | 1 | ||
| 66-4139 | FITTING - saddle | 2 | ||
| 12 | 91-758 | CLAMP - tube | 1 | |
| 55-8993 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 13 | 41-1216 | SWITCH - cps | 1 | |
| 14 | 41-7509 | SWITCH - hpco | 1 | |
| 15 | 55-9229 | TEE (5/8 x 5/8 x 7/8) | 1 | |
| 16 | 61-3038 | TUBE | 1 | |
| 17 | 61-3039 | TUBE | 1 | |
| 18 | 67-2021 | CONDENSER - standard (see 254A0) | 2 | |
| 19 | 61-3040 | TUBE | 1 | |
| 20 | 61-3041 | TUBE | 1 | |
| 21 | 67-2026 | TANK - receiver | 1 | |
| 22 | 55-2688 | CLAMP - tank | 2 | |
| 23 | 61-6346 | TUBE | 1 | |
| 24 | 99-3060 | FITTING - saddle | 1 | |
| 25 | 66-7392 | VALVE - relief, complete | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 26 | 66-2104 | VALVE - shut-off | 1 | |
| 55-6994 | SCREW - valve | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 27 | 61-6347 | TUBE | 1 | |
| 28 | 55-6396 | NUT - shoulder | 2 | |
| 29 | 55-6356 | SHOULDER | 2 | |
| 30 | 33-672 | O-RING | 2 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 31 | 66-9352 | FILTER - drier | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 32 | 55-2688 | CLAMP - filter | 1 | |
| 33 | 92-9412 | BRACKET - filter | 1 | |
| 55-5130 | RIVET - fitting | 2 | ||
| 34 | 61-6348 | TUBE | 1 | |
| 35 | 66-2104 | VALVE - shut-off | 1 | |
| 55-6994 | SCREW - valve | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 36 | 93-586 | BRACKET - valve | 1 | |
| 55-5130 | RIVET - fitting | 2 | ||
| 37 | 61-6349 | TUBE | 1 | |
| 38 | 66-9856 | INDICATOR - liquid (sight glass) | 1 | |
| 39 | 61-6350 | TUBE | 1 | |
| 40 | 61-6351 | TUBE | 1 | |
| 41 | 61-4169 | TUBE | 1 | |
| 42 | 66-4694 | VALVE - shut-off | 1 | |
| 55-6994 | SCREW - valve | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 43 | 61-3700 | TUBE | 1 | |
| 44 | 92-5840 | FITTING - assembly | 1 | |
| 55-5130 | RIVET - fitting | 4 | ||
| 45 | 61-3897 | ADAPTER | 1 | |
| 46 | 33-2846 | O-RING | 1 | |
| 47 | 61-2487 | NUT | 1 | |
| 48 | 55-7142 | TEE (3/8 x 3/8 x 5/8) | 1 | |
| 49 | 61-3701 | TUBE | 1 | |
| 50 | 61-3702 | TUBE | 1 | |
| 51 | 55-6388 | CLAMP - tube | 1 | |
| 55-8464 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 52 | 67-2622 | COIL - evaporator/heater (see 254B7) | 1 | |
| 53 | 67-2623 | COIL - evaporator/heater (see 254B7) | 1 | |
| 54 | 55-6174 | TEE (7/8C 7/8C 7/8C) | 1 | |
| 55 | 61-3704 | TUBE | 1 | |
| 56 | 61-4170 | TUBE | 1 | |
| 57 | 66-2104 | VALVE - shut-off | 1 | |
| 55-6994 | SCREW - valve | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 58 | 61-3706 | TUBE | 1 | |
| 59 | 92-5842 | FITTING - assembly | 1 | |
| 55-5130 | RIVET - fitting | 4 | ||
| 60 | 61-4171 | ADAPTER | 1 | |
| 61 | 33-2848 | O-RING | 1 | |
| 62 | 51-857 | NUT | 1 | |
| 63 | 61-3703 | TUBE | 1 | |
| 64 | 55-7013 | CLAMP - tube | 1 | |
| 55-8993 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 65 | 92-6575 | HOLDER - tube | 1 | |
| 55-5130 | RIVET - holder | 4 | ||
| 66 | 55-4979 | CLAMP - tube | 2 | |
| 67 | 61-6352 | TUBE - assembly | 1 | |
| 61-2059 | VALVE | 1 | ||
| 68 | 44-9976 | SWITCH - lpco | 1 | |
| 69 | 55-7013 | CLAMP - tube | 1 | |
| 51-1667 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 70 | 93-587 | HOLDER - clamp | 1 | |
| 55-5130 | RIVET - holder | 2 | ||
| 71 | 61-391 | ELIMINATOR - vibration, 22.2 id | 1 | |
| 72 | 61-6353 | TUBE | 1 | |
| 73 | 91-3542 | TUBE - rubber | A/R |
