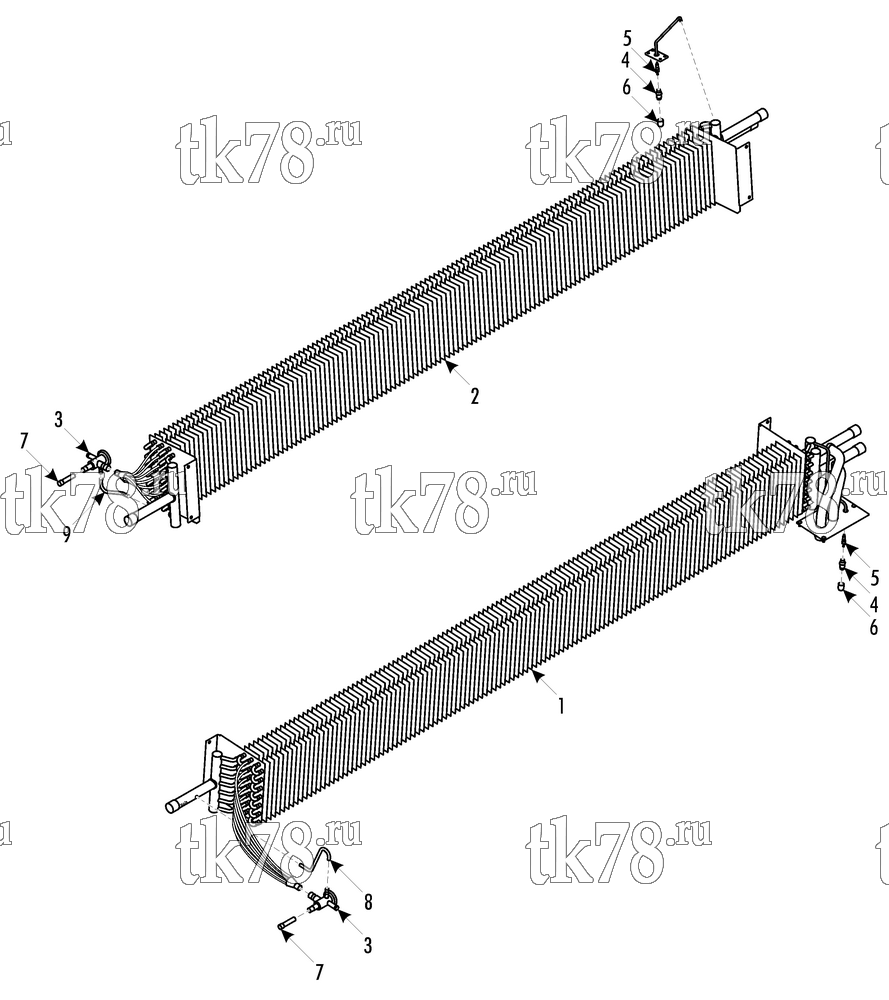

Установкa Thermo King ATHENIA E800 HYBRIDBUS R407C SINUS FILTER схема EVAPORATOR COILS – 254B7
Обновление от: 11/29/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2622 | COIL - evaporator/heater | 1 | |
| 2 | 67-2623 | COIL - evaporator/heater | 1 | |
| 3 | 66-9840 | VALVE - thermostatic expansion, R407C | 2 | |
| 4 | 55-9705 | VALVE | 2 | |
| 5 | 11-7777 | VALVE - core | 2 | |
| 6 | 55-5672 | CAP | 2 | |
| 7 | 61-3966 | TUBE | 2 | |
| 8 | 61-3964 | TUBE | 1 | |
| 9 | 61-3965 | TUBE | 1 |
