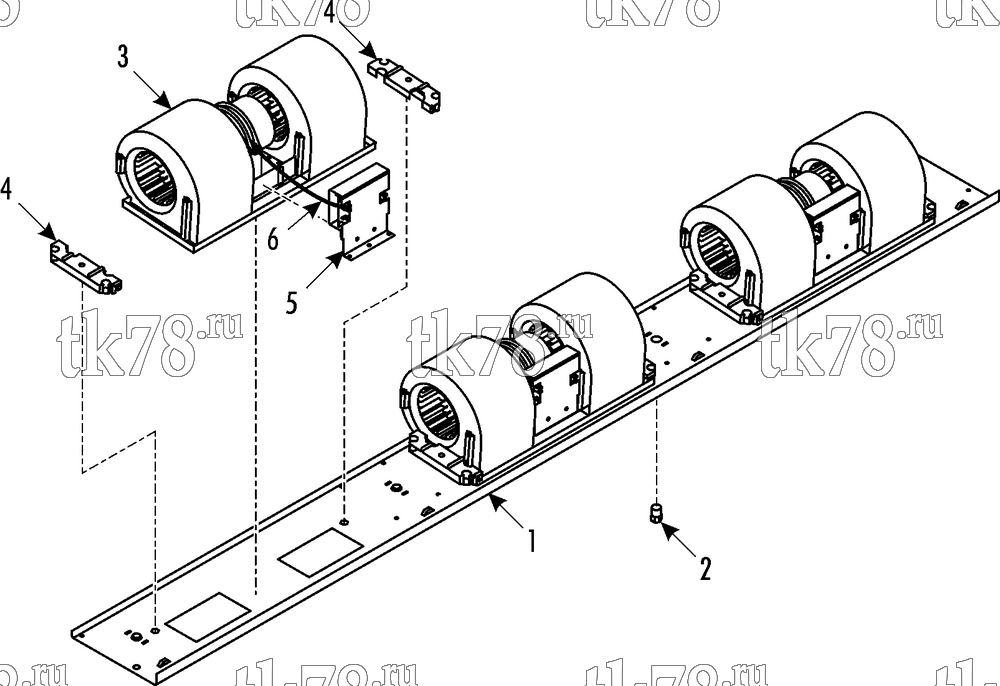

Установкa Thermo King ATHENIA E800 HYBRIDBUS R407C SINUS FILTER схема BLOWERS (007435) – 227C5
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7701 | PLATE - blower | 1 | |
| 55-5130 | RIVET - plate to unit | A/R | ||
| 2 | 55-8403 | NUT - captive, unit to bus roof (M8) | 4 | |
| 3 | 78-1395 | BLOWER | 3 | |
| 4 | 51-259 | HOLDER - holder | 6 | |
| 55-7372 | SCREW - holder | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 6 | ||
| 5 | 41-5191 | CONTROLLER - speed | 3 | |
| 55-5130 | RIVET - controller | A/R | ||
| 6 | 41-5192 | HARNESS - blower | 3 |
