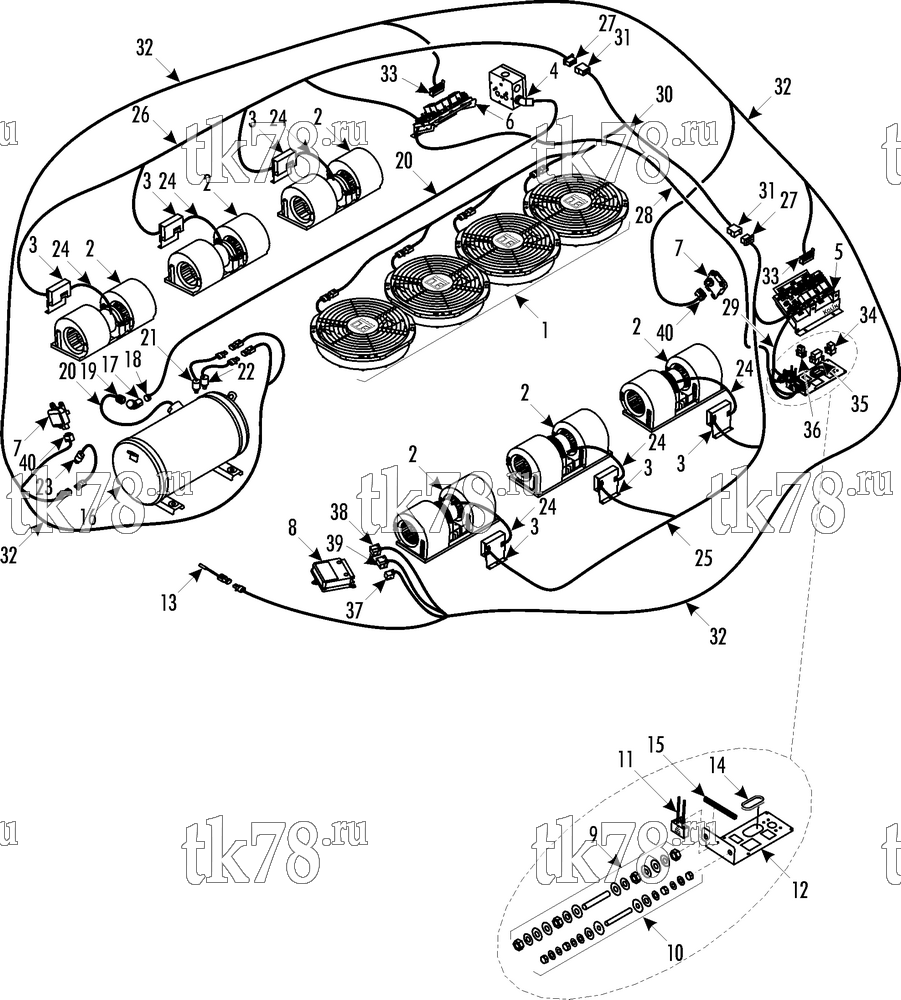

Установкa Thermo King ATHENIA E800 1004 Wabco схема ELECTRICAL COMPONENTS – 227C8
Обновление от: 7/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1414 | FAN (see 224G3) | 4 | |
| 2 | 78-1395 | BLOWER (see 227C5) | 6 | |
| 3 | 41-5191 | CONTROLLER - speed (see 227C5) | 6 | |
| 4 | NSS | CONNECTION BOX (see 224H2) | 1 | |
| 5 | NSS | CONTROLLER - right (see 218A3) | 1 | |
| 6 | NSS | CONTROLLER - left (see 218A2) | 1 | |
| 7 | 41-2755 | SERVOMOTOR (see 218H8) | 2 | |
| 8 | 41-4962 | SUBCONTROLLER | 1 | |
| 55-6994 | SCREW - subcontroller | 3 | ||
| 55-7170 | LOCKWASHER | 3 | ||
| 55-8216 | FLATWASHER | 3 | ||
| 55-7373 | NUT - captive | 3 | ||
| 9 | 55-9191 | STUD - negative (M10) | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 10 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon w/shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 11 | 41-6098 | SUPRESSOR - voltage | 1 | |
| 51-888 | STUD - self-clinching | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 12 | 92-6638 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 13 | 41-2778 | SENSOR - coil temperature | 1 | |
| 14 | 33-1770 | GROMMET (1.5 id) | 1 | |
| 15 | 92-3279 | STRIP - flange | A/R | |
| 16 | 102-1062 | COMPRESSOR (see 215F8) | 1 | |
| 17 | 51-1401 | BUSHING | 1 | |
| 18 | 41-7977 | INSERT - seal | 1 | |
| 19 | 51-1400 | BUSHING | 1 | |
| 20 | 41-7978 | CORD - power | 1 | |
| 21 | 41-1216 | SWITCH - hpco | 1 | |
| 22 | 41-7509 | SWITCH - hpco | 1 | |
| 23 | 44-9976 | SWITCH - lpco | 1 | |
| 24 | 41-8012 | HARNESS - blower | 6 | |
| 25 | 41-8013 | HARNESS - control panel, right | 1 | |
| 26 | 41-8014 | HARNESS - control panel, left | 1 | |
| 27 | 41-3862 | HOUSING (6 pin) | 2 | |
| 28 | 41-7980 | HARNESS - supply | 1 | |
| 29 | 41-7981 | HARNESS - supply | 1 | |
| 30 | 41-7982 | HARNESS - condenser (for connectors see 115D14) | 1 | |
| 31 | 41-3967 | HOUSING (6 tabs) | 2 | |
| 32 | 41-8015 | HARNESS - control | 1 | |
| 33 | 41-3856 | CONNECTOR - female (18 pin) | 2 | |
| 34 | 41-7651 | HOUSING (jpt, 9-way) | 1 | |
| 35 | 41-7650 | HOUSING (jpt, 18-way) | 1 | |
| 36 | 41-7652 | HOUSING (jpt, 6-way) | 1 | |
| 37 | 41-7654 | HOUSING (9-way) | 1 | |
| 38 | 41-7653 | HOUSING (15-way) | 1 | |
| 39 | 41-4955 | HOUSING (17-way) | 1 | |
| 40 | 41-3288 | CONNECTOR | 2 | |
| 91-3809 | STRIP - neoprene | A/R |
