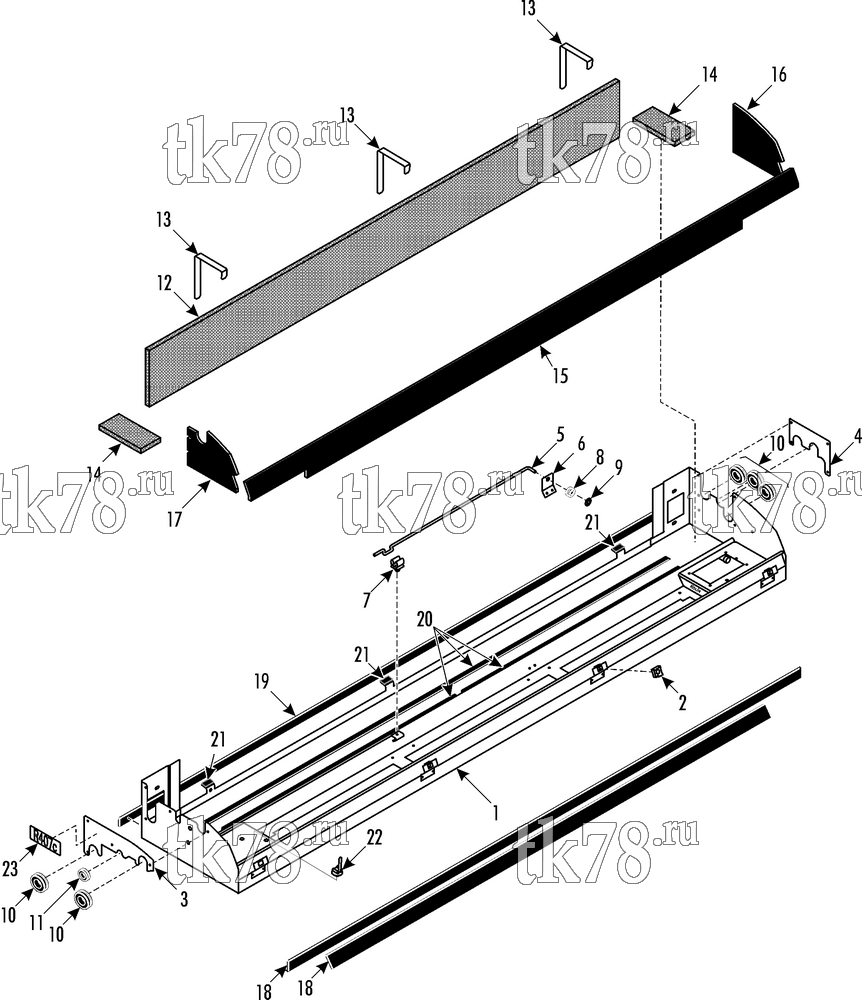

Установкa Thermo King ATHENIA E800 1004 Wabco схема EVAPORATOR BASE 1 – 227C6
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7572 | BASE - evaporator | 1 | |
| 55-6994 | SCREW - base | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 2 | 55-9194 | NUT - captive | 4 | |
| 3 | 92-5829 | PLATE - covering | 1 | |
| 4 | 92-4003 | PLATE - covering | 1 | |
| 55-5130 | RIVET - plates | A/R | ||
| 5 | 92-4005 | SUPPORT - cover | 1 | |
| 6 | 92-5048 | BRACKET - support | 1 | |
| 55-5130 | RIVET - support | 2 | ||
| 7 | 51-1669 | CLIP - support | 1 | |
| 8 | 83-258 | GROMMET (0.25 id) | 1 | |
| 9 | 51-809 | LOCKWASHER | 1 | |
| 10 | 33-452 | GROMMET (0.875 id) | 5 | |
| 11 | 33-428 | GROMMET (0.5 id) | 1 | |
| 12 | 92-4006 | FILTER - evaporator | 1 | |
| 13 | 92-5831 | CLIP - filter to evaporator | 3 | |
| 14 | 92-4007 | FILTER - evaporator | 2 | |
| 15 | 92-4008 | INSULATION | 1 | |
| 16 | 92-5832 | INSULATION | 1 | |
| 17 | 92-5833 | INSULATION | 1 | |
| 18 | 33-2420 | STRIP - neoprene | A/R | |
| 19 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R | |
| 20 | 99-2495 | STRIP - neoprene | A/R | |
| 21 | 33-3540 | STRIP - neoprene | A/R | |
| 22 | 51-1631 | STRAP - cable | A/R | |
| 23 | 91-7846 | NAMEPLATE - R407C | 1 |
