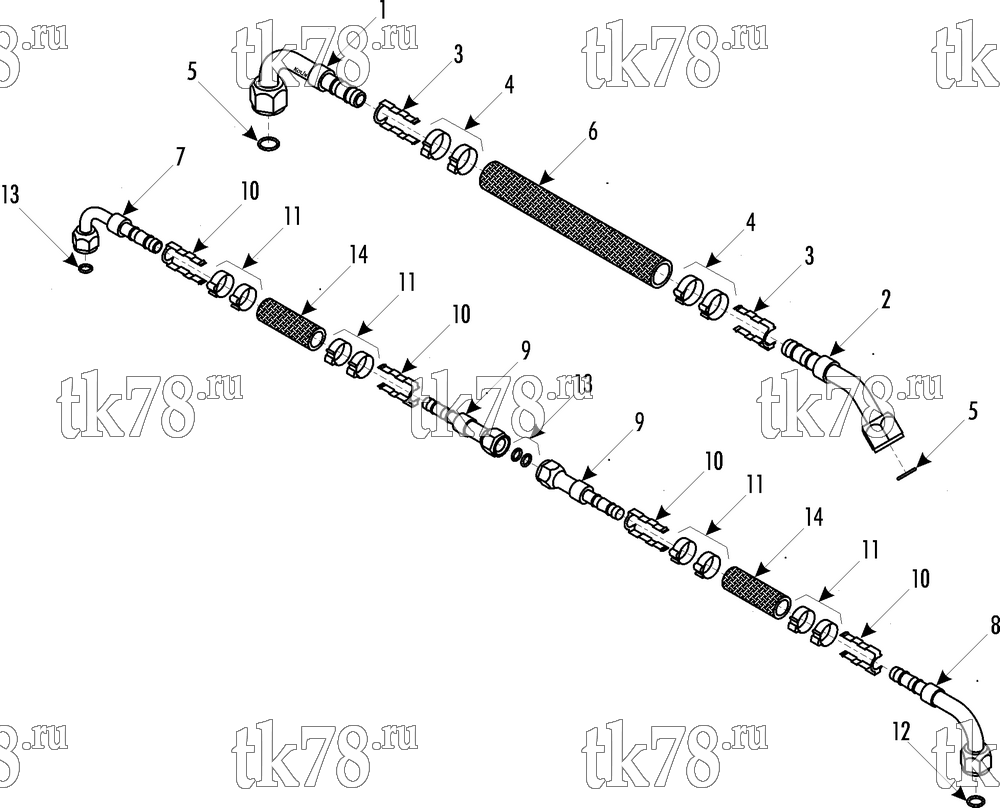

Установкa Thermo King ATHENIA E800 1004 Wabco схема KIT FITTINGS FOR FRONTBOX (701108) – 224H6
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 51-2424 | FITTING - 90 deg (tube-O, #10 hose x #10 fitting) | 1 | |
| 2 | 51-334 | FITTING (#10, 45 deg) | 1 | |
| 3 | 55-9413 | CAGE (#10) | 2 | |
| 4 | 55-9417 | CLIP - hose (#10) | 4 | |
| 5 | 33-2848 | O-RING (9/16 id) | 2 | |
| 6 | 67-1710 | HOSE (#10) | A/R | |
| 7 | 51-2481 | FITTING - 90 deg (tube-O, #8 hose x #6 fitting) | 1 | |
| 8 | 51-2406 | FITTING - 90 deg (tube-O, #8) | 1 | |
| 9 | 51-2506 | FITTING - straight (tube-O, #8 hose & #6 fitting) | 2 | |
| 10 | 55-9412 | CAGE (#8) | 4 | |
| 11 | 55-9416 | CLIP - hose (#8) | 8 | |
| 12 | 33-2846 | O-RING (7/16 id) | 1 | |
| 13 | 33-3717 | O-RING (0.301 id) | 3 | |
| 14 | 67-1709 | HOSE (#8) | A/R |
