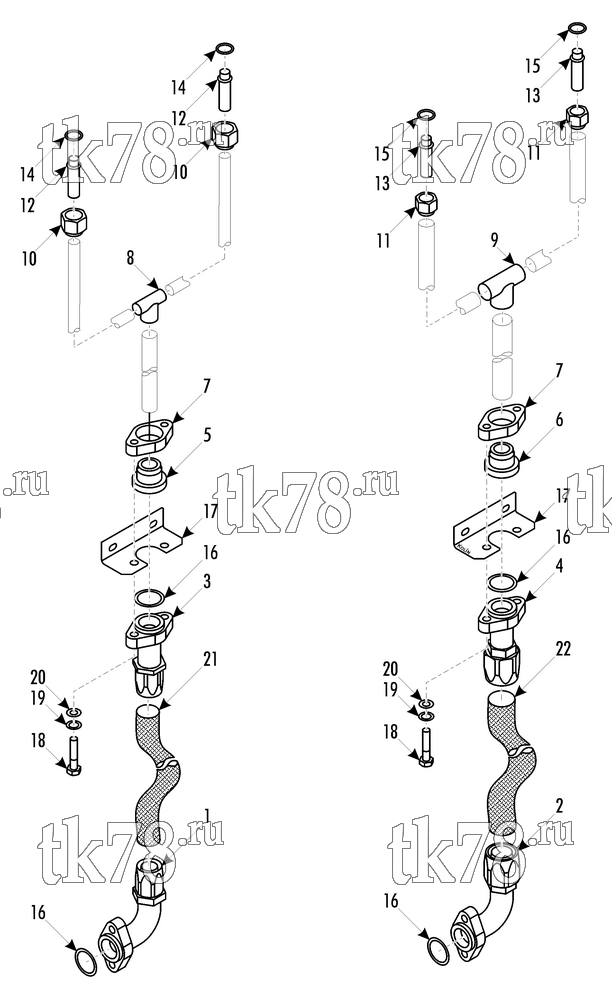

Установкa Thermo King ATHENIA D805 W SPLIT VDL схема HOSES & FITTINGS - SPLIT w/1 COMPRESSOR (KIT 702316) – 243H3
Обновление от: 8/23/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-475 | FITTING (hose #16, 90 deg) | 1 | |
| 2 | 61-476 | FITTING (hose #20, 90 deg) | 1 | |
| 3 | 61-4771 | FITTING (hose #16) | 1 | |
| 4 | 61-3588 | FITTING (hose #20) | 1 | |
| 5 | 55-9369 | ADAPTER - tube 22 o.d. | 1 | |
| 6 | 51-374 | ADAPTER - tube 28 o.d. | 1 | |
| 7 | 55-9186 | FLANGE | 2 | |
| 8 | 55-9229 | TEE (5/8 x 5/8 x 7/8) | 1 | |
| 9 | 55-6508 | TEE (7/8C x 7/8C x1-1/8C) | 1 | |
| 10 | 51-858 | NUT- sleeve | 2 | |
| 11 | 51-857 | NUT- sleeve | 2 | |
| 12 | 61-5240 | ADAPTER (3/4) | 2 | |
| 13 | 61-3947 | ADAPTER (5/8) | 2 | |
| 14 | 33-2847 | O-RING (11/16 id) | 2 | |
| 15 | 33-2848 | O-RING (9/16 id) | 2 | |
| 16 | 33-3191 | GASKET - flat | 4 | |
| 17 | 92-2939 | BRACKET - fitting | 2 | |
| 18 | 55-9845 | SCREW - adapter | 4 | |
| 19 | 55-7000 | LOCKWASHER | 4 | |
| 20 | 55-7357 | FLATWASHER | 4 | |
| 21 | 61-4769 | HOSE (#16) | A/R | |
| 22 | 61-4770 | HOSE (#20) | A/R |
