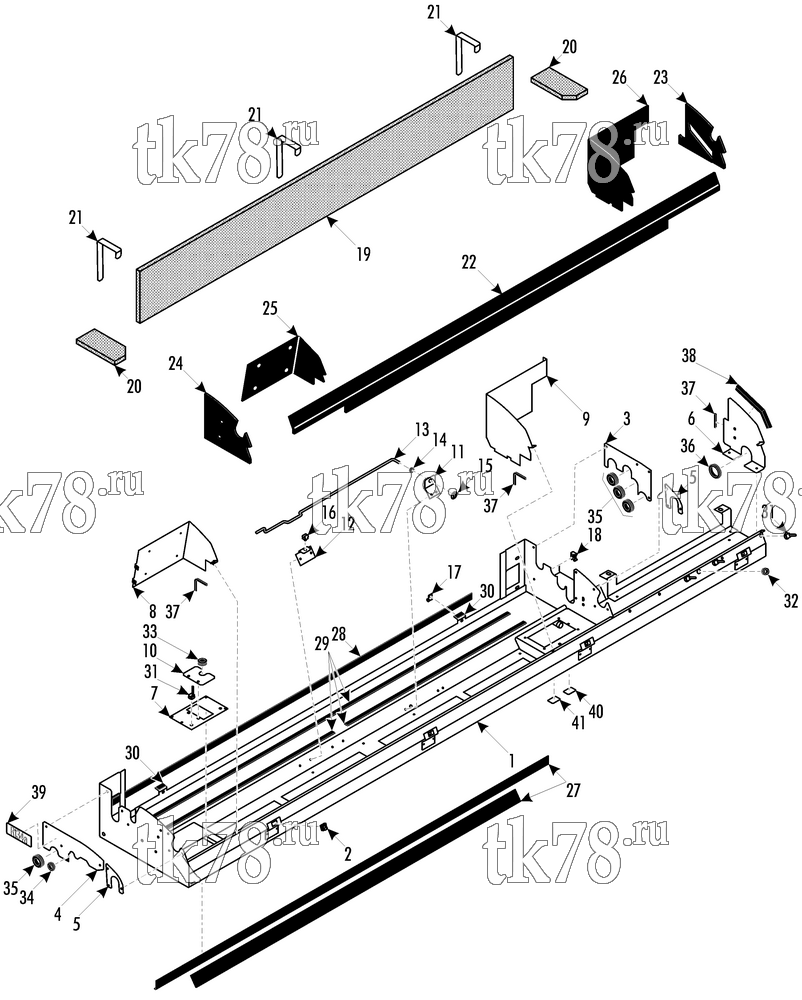

Установкa Thermo King ATHENIA D805 W SPLIT VDL схема EVAPORATOR BASE 1 – 243E0
Обновление от: 6/30/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8229 | BASE - evaporator | 1 | |
| 55-6994 | SCREW - base | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-9837 | NUT - captive | 4 | ||
| 2 | 55-9194 | NUT - captive | 4 | |
| 3 | 92-8169 | PLATE - cover | 1 | |
| 4 | 92-5662 | PLATE - cover | 1 | |
| 5 | 92-7465 | PLATE - cover | 2 | |
| 6 | 92-8170 | PLATE - front | 1 | |
| 7 | 92-7565 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plates | A/R | ||
| 8 | 92-7568 | COVER | 1 | |
| 9 | 92-8511 | COVER | 1 | |
| 10 | 92-6089 | COVER | 1 | |
| 55-7664 | SCREW - covers | 7 | ||
| 55-7369 | LOCKWASHER | 7 | ||
| 55-7697 | FLATWASHER | 7 | ||
| 55-7866 | NUT - captive | 7 | ||
| 11 | 92-5048 | BRACKET - support | 1 | |
| 12 | 92-7344 | BRACKET - clip | 1 | |
| 55-5130 | RIVET - brackets | A/R | ||
| 13 | 92-6376 | SUPPORT - cover | 1 | |
| 14 | 83-258 | GROMMET (0.250 id) | 1 | |
| 15 | 51-809 | LOCKWASHER | 1 | |
| 16 | 51-1669 | CLIP - plastic | 1 | |
| 17 | 56-546 | CLAMP | 1 | |
| 55-7169 | SCREW - clamp | 1 | ||
| 55-7171 | LOCKWASHER | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-8375 | NUT - captive | 1 | ||
| 18 | 99-3281 | MOUNT - bandwrap | A/R | |
| 55-5130 | RIVET - mount | A/R | ||
| 19 | 92-5663 | FILTER - evaporator | 1 | |
| 20 | 92-4007 | FILTER - evaporator | 2 | |
| 21 | 92-5664 | CLIP - filter | 3 | |
| 22 | 92-6377 | INSULATION | 1 | |
| 23 | 92-8512 | INSULATION | 1 | |
| 24 | 92-7596 | INSULATION | 1 | |
| 25 | 92-7570 | INSULATION | 1 | |
| 26 | 92-8513 | INSULATION | 1 | |
| 27 | 33-2420 | STRIP - neoprene | A/R | |
| 28 | 99-6968 | STRIP - neoprene | A/R | |
| 29 | 99-2996 | STRIP - neoprene | A/R | |
| 30 | 99-1908 | STRIP - neoprene | A/R | |
| 31 | 51-1631 | STRAP - cable | A/R | |
| 32 | 33-314 | GROMMET (0.312 id) | 1 | |
| 33 | 33-1809 | GROMMET (0.500 id) | 1 | |
| 34 | 33-367 | GROMMET (0.625 id) | 1 | |
| 35 | 33-452 | GROMMET (0.875 id) | 4 | |
| 36 | 33-489 | GROMMET (1.250 id) | 1 | |
| 37 | 92-3279 | RUBBER - profile | A/R | |
| 38 | 92-146 | RUBBER - profile | A/R | |
| 39 | 91-5459 | NAMEPLATE - R134a | 1 | |
| 40 | 91-7550 | NAMEPLATE - liquid out | 1 | |
| 41 | 91-7703 | NAMEPLATE - liquid in | 1 |
